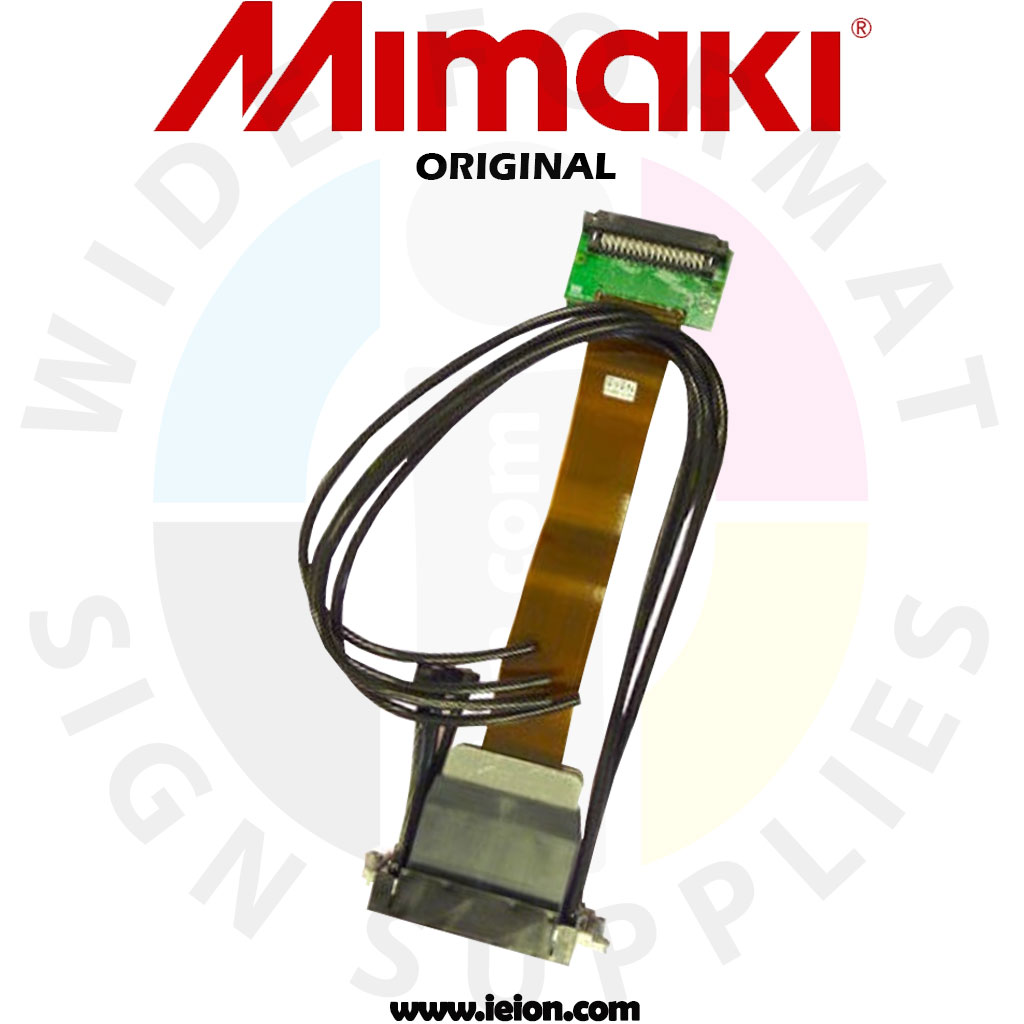

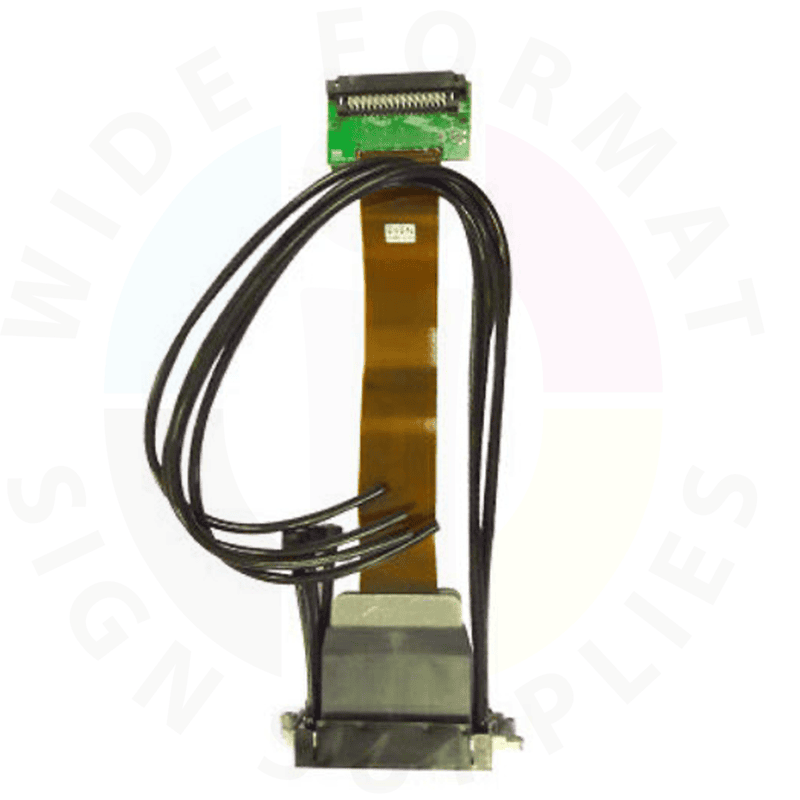

Mimaki JFX-500 Print head Assy GEN5 (UV)- M022626
Tags:
This JFX-500 Print head Assy GEN5 (UV) is the original Mimaki part (# M022626).
It has two and four color supports, 8 levels of grayscale, and up to 600 npi nozzle density.
Product ID
1911948000000318323,1911948000000618617 Choose Quantity
$2,825.00
Product Details
Specifications
Dimensions: 89 x 25 x 69 mm (excluding cables)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle density: up to 600 npi
Piezo yype: D33 Stacked PZT
Temperature control: Integrated Heater and Thermistor
Operator temperature range: Up to 80° C
Native drop volume: 7 pl
Drop volume range: 7 - 35 pl
Drop velocity: 7 m/s
Jetting frequency: Up to 60 kHZ
Life: 100 billion actuations per nozzle
This printhead carries a manufacturer warranty.
Country of origin : Japan
Parts Type
- Parts TypePrint heads
