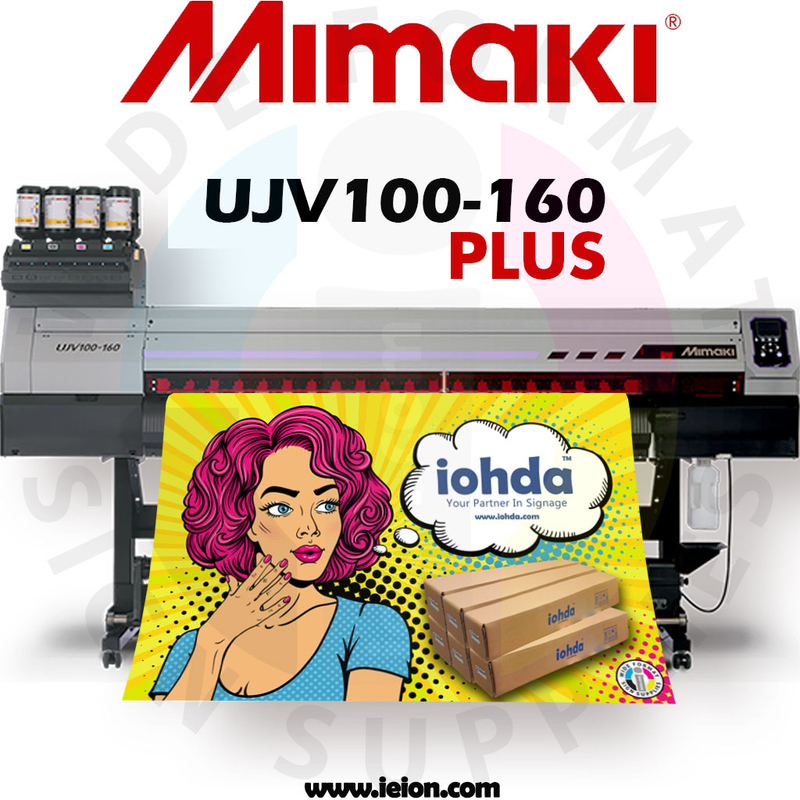

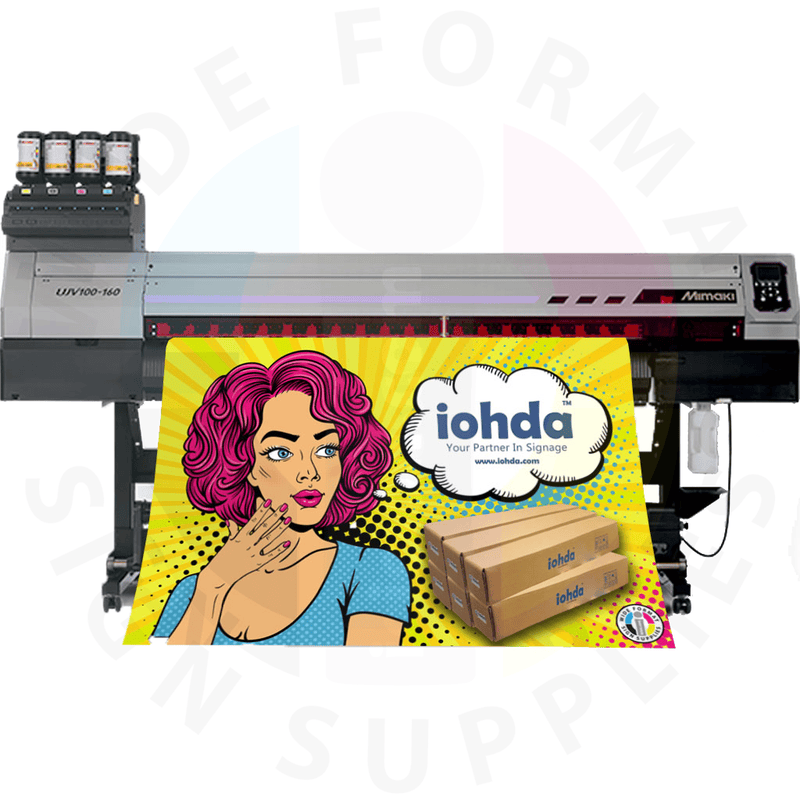

Mimaki Printer UJV100-160 PLUS LED UV

• Print heads: Two on-demand piezo heads (staggered layout)

• Print resolution: 360, 720, 900, 1,200 dpi

• Ink types / colors: UV-curable — CMYK, White, Clear

• Ink capacity: 1 L bottles

• Maximum print width: 1,610 mm (63.4″)

• Maximum media width: 1,620 mm (63.8″)

• Media thickness: Up to 1.0 mm

• Maximum roll weight: 45 kg

• Core diameter: 2″ or 3″

• Interface: Ethernet 1000 BASE-T, USB 2.0

• Power supply: Single-phase AC 100–120V or 200–240V ±10%, 50/60 Hz

• Operating environment: 20–30 °C, 35–65% RH

Highlights

• Instant-dry UV-LED inks allow immediate handling

• Supports white and clear inks for underbase and varnish effects

• Dot Adjustment System (DAS) corrects dot placement and feeding

• Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS) ensure reliability

• Advanced Pass System (MAPS) smooths out banding

• Low power consumption

Applications

• Signage: banners, decals, backlit graphics

• Rigid media: plastic, metal, wood, glass

• Window graphics with white underlayer

• Spot varnish or gloss effects using clear ink

• Promotional items and POS graphics

• Packaging mockups on flexible films

Printer Weight and Size

• Weight: 167 kg (368 lb)

• Dimensions (W × D × H): 2,775 × 900 × 1,392 mm → 9.11 ft × 2.95 ft × 4.57 ft

• Recommended clearance: ~10 ft width × ~4 ft depth for operator access and media handling

Shipping Information

• Packaged weight: 167 kg

• Packaged dimensions: 2,775 × 900 × 1,392 mm → 9.11 ft × 2.95 ft × 4.57 ft

Recommended Inks

• Mimaki Ink UV LUS 170 1 L Bottle

• Mimaki Ink UV LUS 175 1 L Bottle

• Tron LUS210 One Time Use 1 Liter Chip

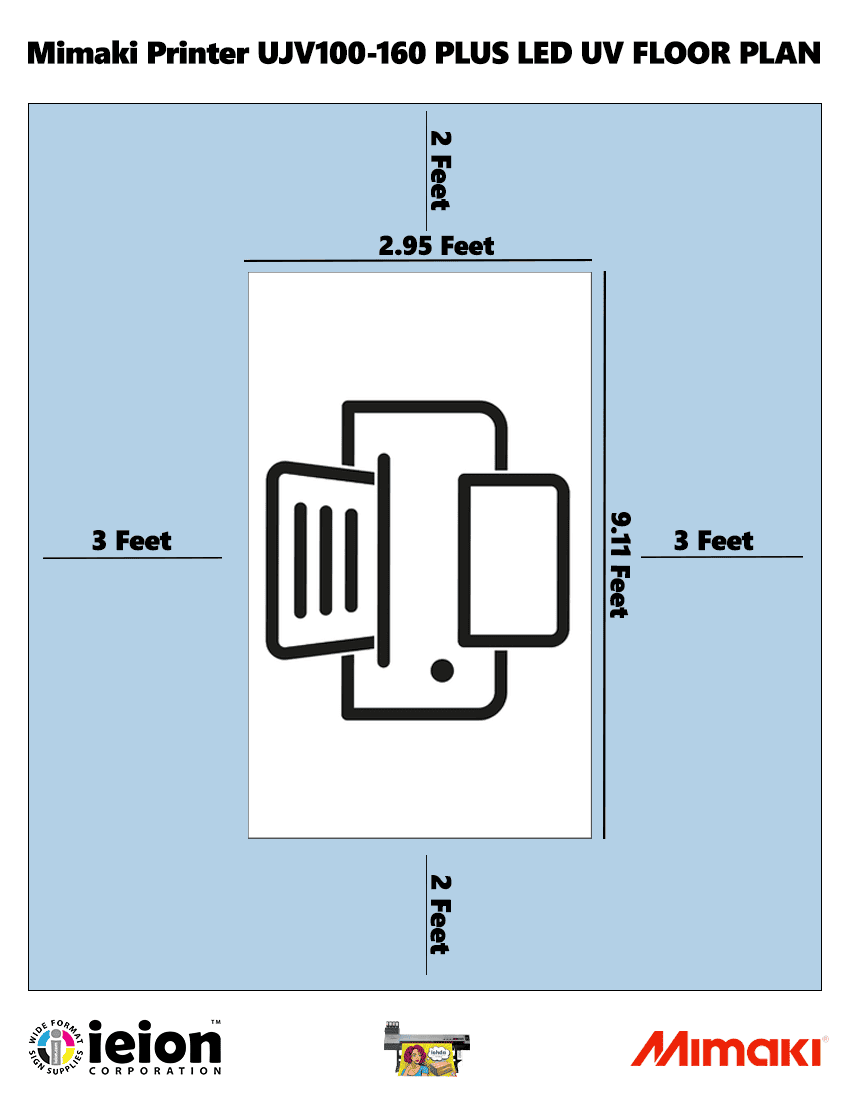

Floor Plan
