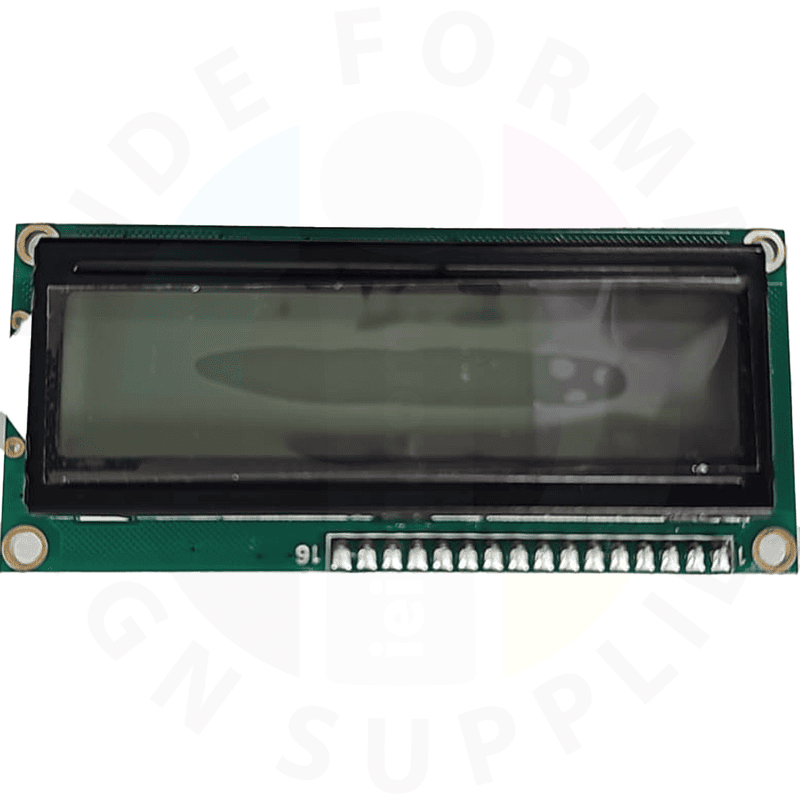

Allwin Display for DTF
Front-panel display module designed for Allwin DTF systems. This screen delivers clear status, menu navigation, and diagnostics right at the printer—pairing with the keyboard/control board for fast setup, job control, and error handling on the production floor.
Available Offer
Specifications
Type: Operator display module for DTF printers
Panel Options: Monochrome graphic LCD or color TFT/OLED (revision dependent)
Typical Sizes: ~2.4"–7.0" diagonal (model dependent)
Resolution: From 128×64 (mono) up to 800×480 (TFT), per printer model
Interface: FFC to keyboard/main board (SPI / I²C / parallel, revision dependent)
Backlight: Integrated LED backlight (brightness adjustable via firmware/menu on some models)
Viewing: Wide viewing angle; anti-glare window (varies by batch)
Power: 5 V logic input with onboard regulation (per revision)
Operating Range: 10–35 °C, non-condensing; dust-managed environment
Compliance: RoHS; lead-free
Packaging: Anti-static bag, protective screen film, labeled for model/revision
Compatibility: Allwin DTF platforms that use this display family. Confirm printer model, display type, connector pitch/position, and cable length before purchase.
Highlights
Crisp, Readable UI: Clear menus and status icons for fast operator decisions.
Production-Ready: Stable backlight and robust construction for long shifts.
Seamless Integration: Keyed connectors and matched firmware drivers (per model).
Service Friendly: Protective film and labeled headers simplify swap-outs.
Low Noise, High Reliability: Optical display immune to EMI that affects signal lines.
Downtime Reducer: Drop-in replacement restores front-panel visibility quickly.
Use & Details
Use Cases: Replace dim/cracked screens, fix missing lines/blocks, restore unreadable UIs, keep a spare for 24/7 operations.
Installation Notes:
Power off and discharge static; work in an ESD-safe area.
Handle by the edges—do not press on the viewing area or polarizer.
Route FFC cables with gentle curves; match keyed orientation and fully seat latches.
After install, remove protective film, set brightness/contrast, confirm language and menu layout.
Troubleshooting Clues: No backlight, random characters, vertical/horizontal missing lines, or flicker often point to display, FFC, or keyboard-board issues (after ruling out firmware and main board).
Compatibility Checklist: Printer model → display size/type → connector pitch/position → cable length → firmware driver match (mono vs TFT/OLED) → keyboard-board revision.
Care & Handling: Keep dust caps/film on until mounting; clean with lint-free wipes only (no solvents or alcohol); avoid direct heat or sharp objects near the screen.
