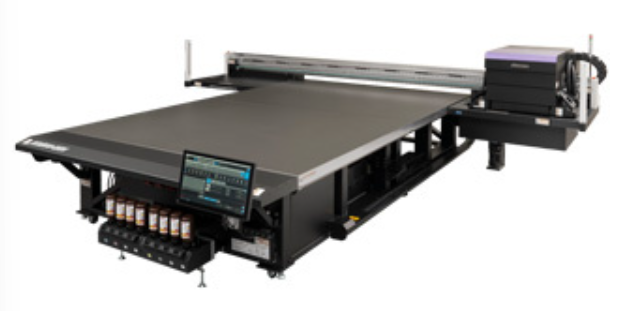

Mimaki Printer Flatbed UV-LED JFX600-2531

Specifications

• Printheads: 2× On-demand piezo

• Max Resolution: 1,440 dpi

• Ink Sets: LUS-170 or LUS-200 UV-curable inks (CMYK + White + Clear)

• Ink Size: 1 L bottles; White circulation: Yes

• Print Area: 2,500 × 3,100 mm (98.4 × 122 in)

• Media Thickness: Up to 50 mm (1.97 in)

• Media Weight: Up to 50 kg/m²

• Interface: Ethernet 1000BASE-T; USB 2.0

• Power: AC 100–120 / 200–240 V ±10%, 50/60 Hz; Max consumption 2,400 W

• Operating Environment: 20–30 °C, 35–65% RH

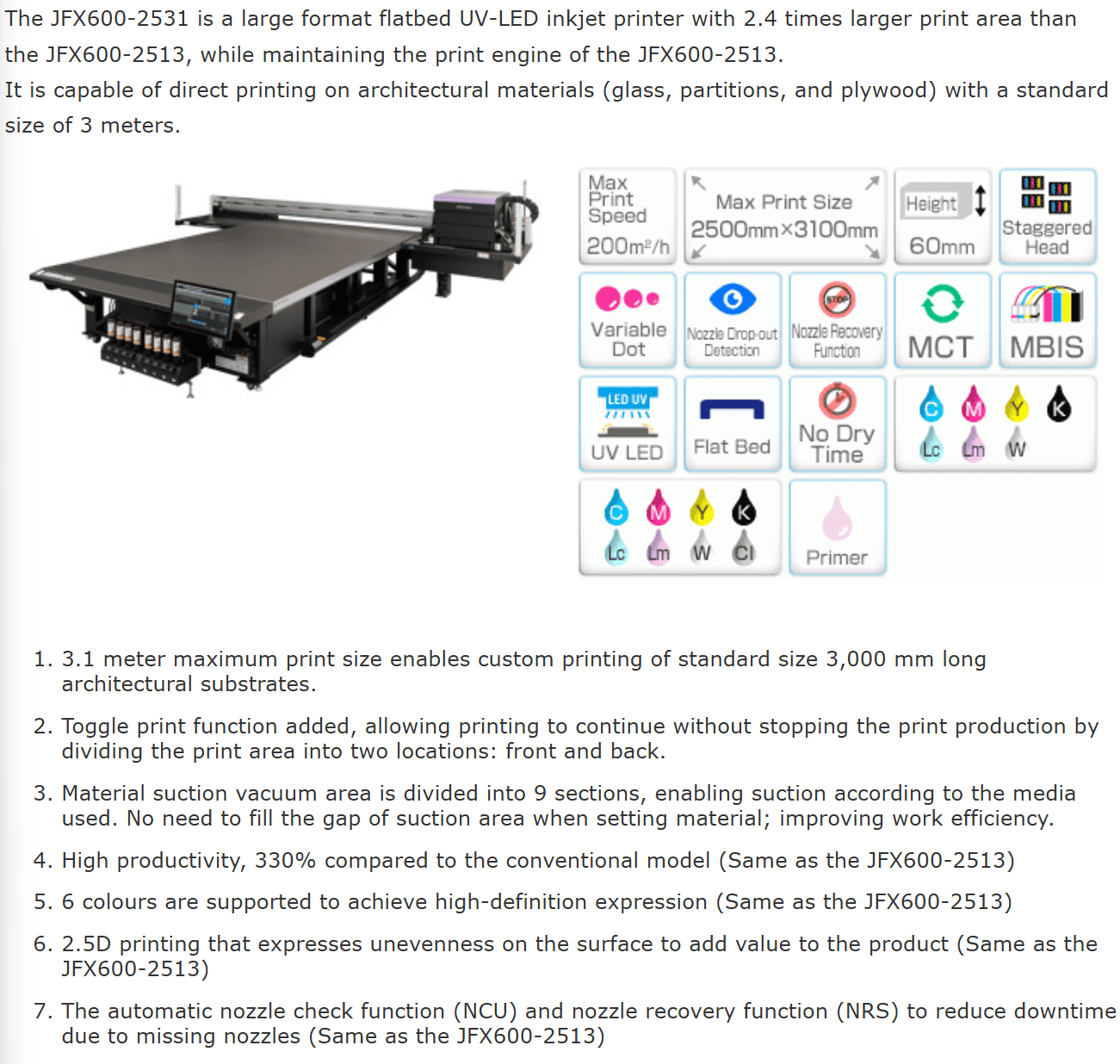

Highlights

• UV‑LED curing enables instant drying and low energy consumption

• Supports white and clear inks for underbase and varnish effects

• High-precision piezo heads deliver sharp details and vibrant colors

• Durable prints on rigid and flexible media, including acrylic, wood, metal, and plastics

• User-friendly interface and automated calibration improve workflow efficiency

Applications

• Large-format signage and displays

• Interior decoration and architectural panels

• Packaging prototypes and mock-ups

• Promotional items and custom graphics

• Specialty printing on rigid materials

Printer Weight and Size

• Weight: 1,800 kg (3,968 lb)

• Dimensions (W × D × H): 4,700 × 2,000 × 1,200 mm → 15.42 ft × 6.56 ft × 3.94 ft

Shipping Information

• Packaged weight: 1,800 kg (3,968 lb)

• Packaged dimensions: ~16 ft × 7 ft × 4 ft

Recommended Inks

• Tron LUS210 One Time Use 1 Liter Chip

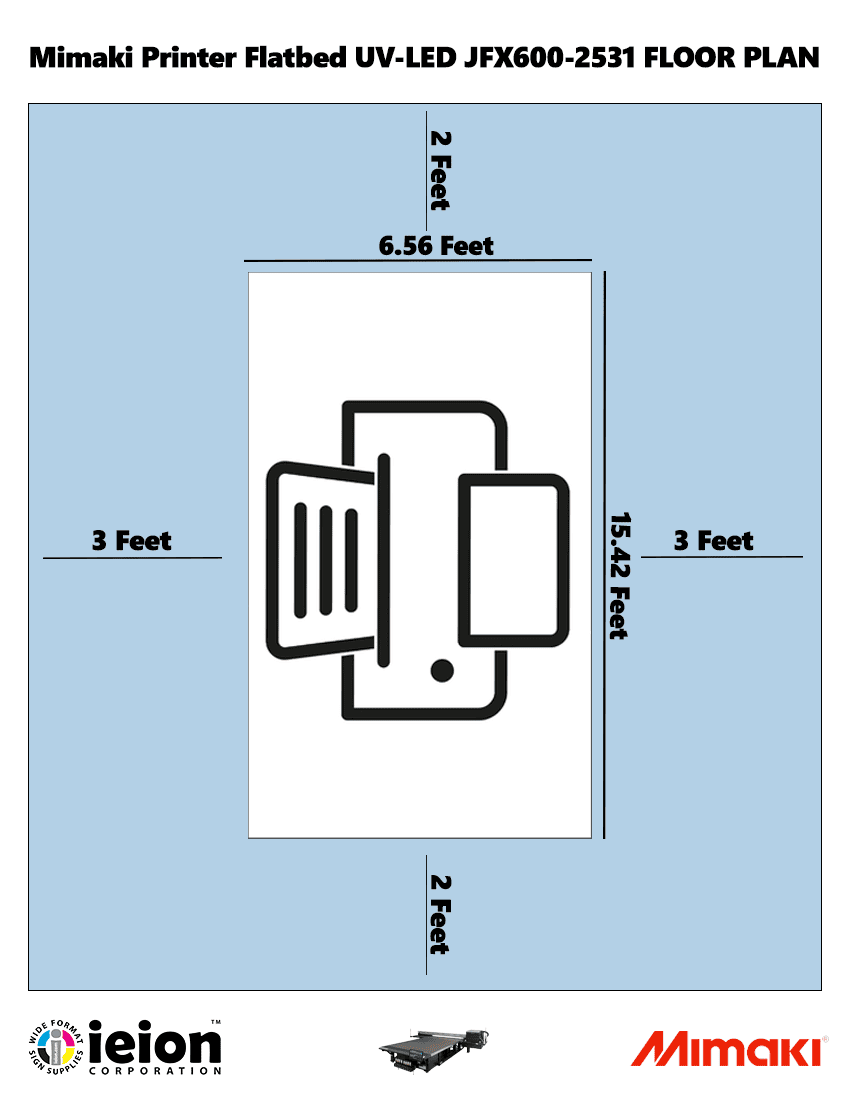

Floor Plan
