Specifications

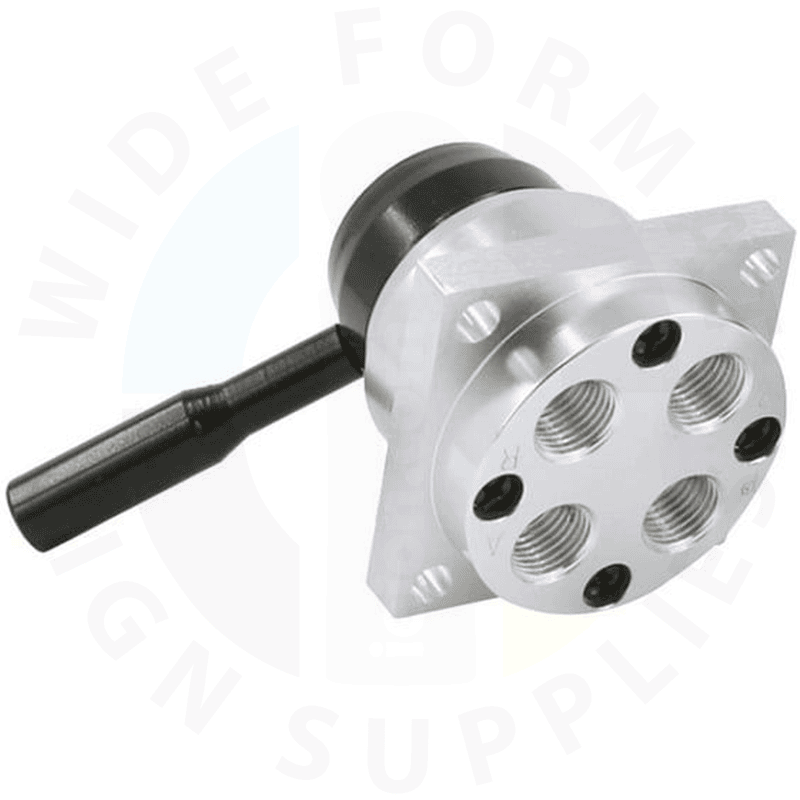

- Model: K34R6-8D
- Type: Pneumatic Manual Rotary Valve
- Positions: 3-position, 4-way
- Port Size: G1/4" (BSP/NPT options)
- Working Pressure: 0.15–0.8 MPa (21–114 PSI)
- Max Pressure: 1.5 MPa (215 PSI)
- Medium: 40 μm filtered compressed air
- Temperature Range: -10°C to 60°C
- Material: Aluminum alloy body, NBR/Viton seals
- Effective Sectional Area: 18 mm² (CV=1.00)
- Connection Type: Clamp type
- Standard Compliance: ISO/CE
Highlights
- Robust aluminum alloy construction for long service life
- Smooth and sensitive handle operation for precise control
- Compact design for easy installation in pneumatic systems
- Compatible with multiple thread standards (BSP/NPT)
- Tested for quality and leak-free performance
Use
Ideal for controlling airflow direction in pneumatic circuits, automation equipment, and industrial machinery. Commonly used in compressed air pipeline systems for quick and reliable switching.
Details
- Warranty: 12 months
- Customization: Available for color and thread type
- Applications: Manufacturing, automation, machinery control
- Maintenance: Requires clean, filtered air for optimal performance
