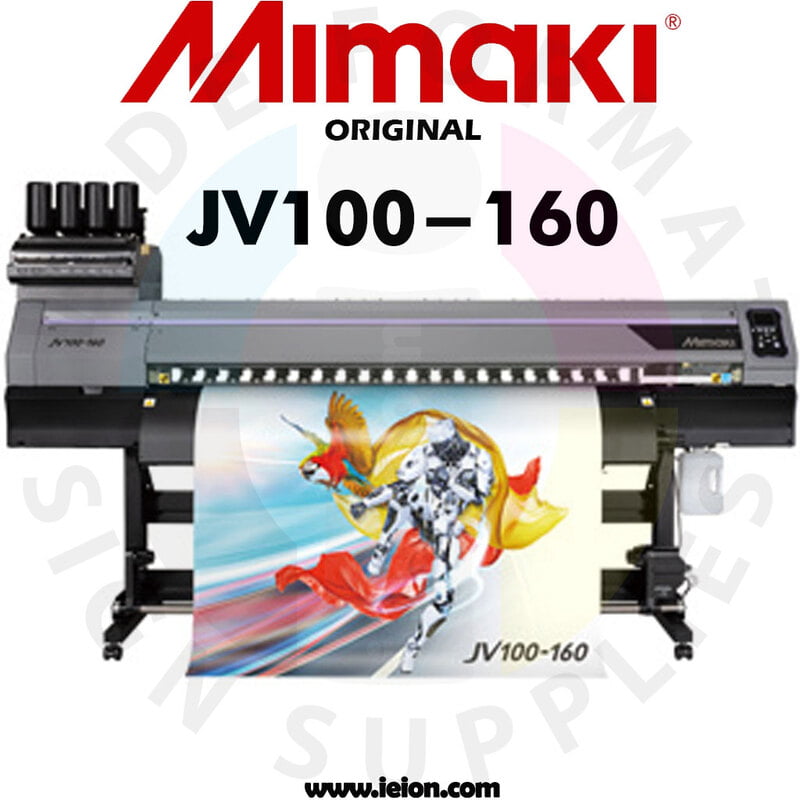

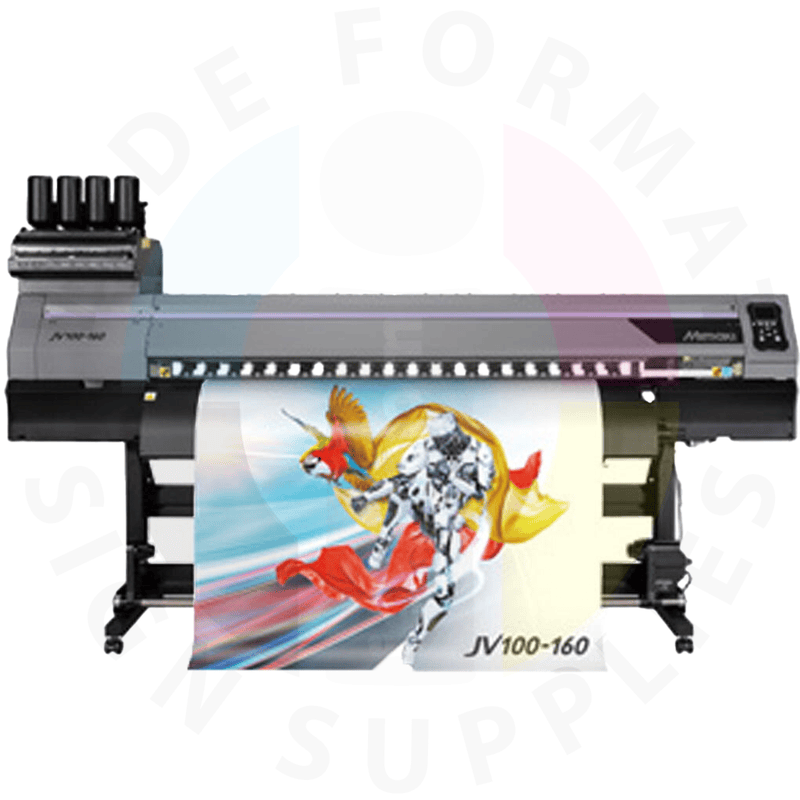

Mimaki Printer JV100-160B

Specifications

• Print Technology: Piezoelectric drop-on-demand

• Maximum Print Width: 63 in (1,600 mm)

• Printhead Type: Piezo drop-on-demand

• Maximum Resolution: Up to 1,200 dpi

• Ink Type: Solvent / Eco-Solvent (CMYK)

• Max Media Thickness: Up to 1.0 mm

• Max Media Weight: Roll media, up to 40 kg (88 lbs)

• Interface: USB / Ethernet

• Power Supply: AC 100–240V, 50/60Hz

• Operating Environment: 20–30°C / 35–65% RH

• Additional Features: High-precision feed system, MAPS for banding reduction, Intelligent Heater

Highlights

• High-speed, wide-format printing for banners, decals, and signage

• Superior color reproduction with smooth gradients

• MAPS technology reduces banding for professional output

• Stable media feeding and precise alignment

• Low-maintenance design with easy access to serviceable parts

• Energy-efficient operation

Applications

• Banners and large-format signage

• Vehicle graphics and decals

• Wall murals and interior décor

• Point-of-sale displays

• Retail promotional graphics

• Outdoor advertising and building wraps

Printer Size & Weight

• Dimensions (L × W × H):

  • Full recommended space: 3,775 × 2,700 mm
    ≈ 12.38 × 8.86 ft

  • Machine footprint: 2,775 × 700 mm
    ≈ 9.1 × 2.29 ft

• Net Weight: 166 kg

  • Leg Unit: 25 kg (55 lb)

  • Printer Unit: 141 kg (310 lb)

  • Total: 366 lb

Shipping Information

• Packaged Dimensions (estimated): 3,900 × 850 × 1,600 mm
  ≈ 12.8 × 33.5 × 63 in

• Shipping Weight (estimated): ~200 kg
  ≈ 441 lbs

• Crated for safe transport; forklift or pallet jack recommended

Recommended Inks

• Mimaki Ink ECO CS250 1 L Bottle

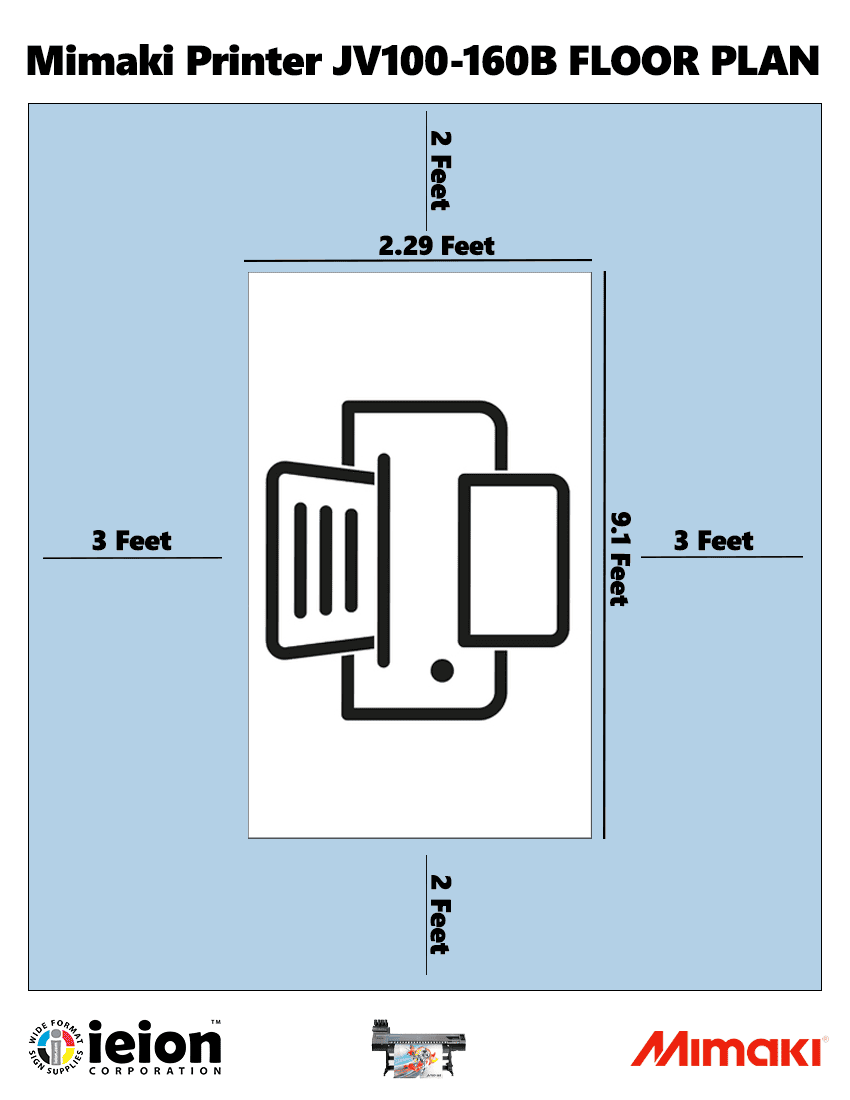

Floor Plan
