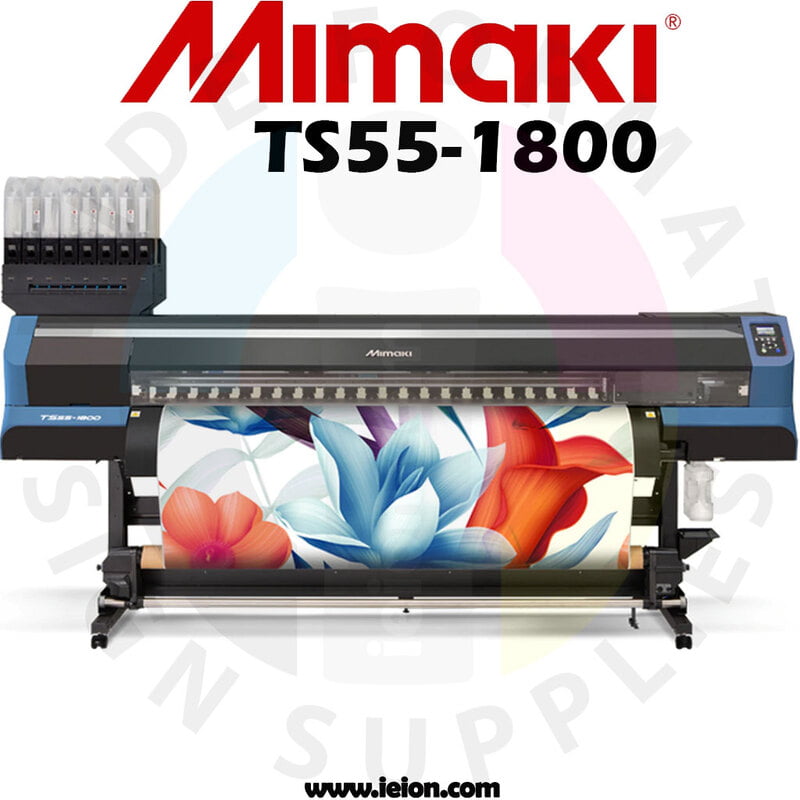

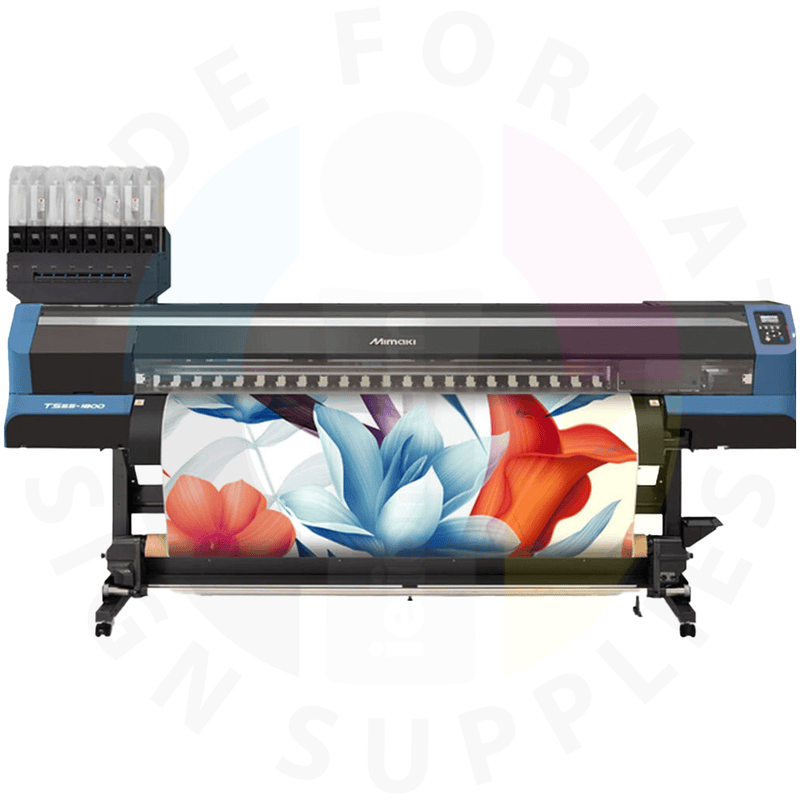

Mimaki Printer TS55-1800

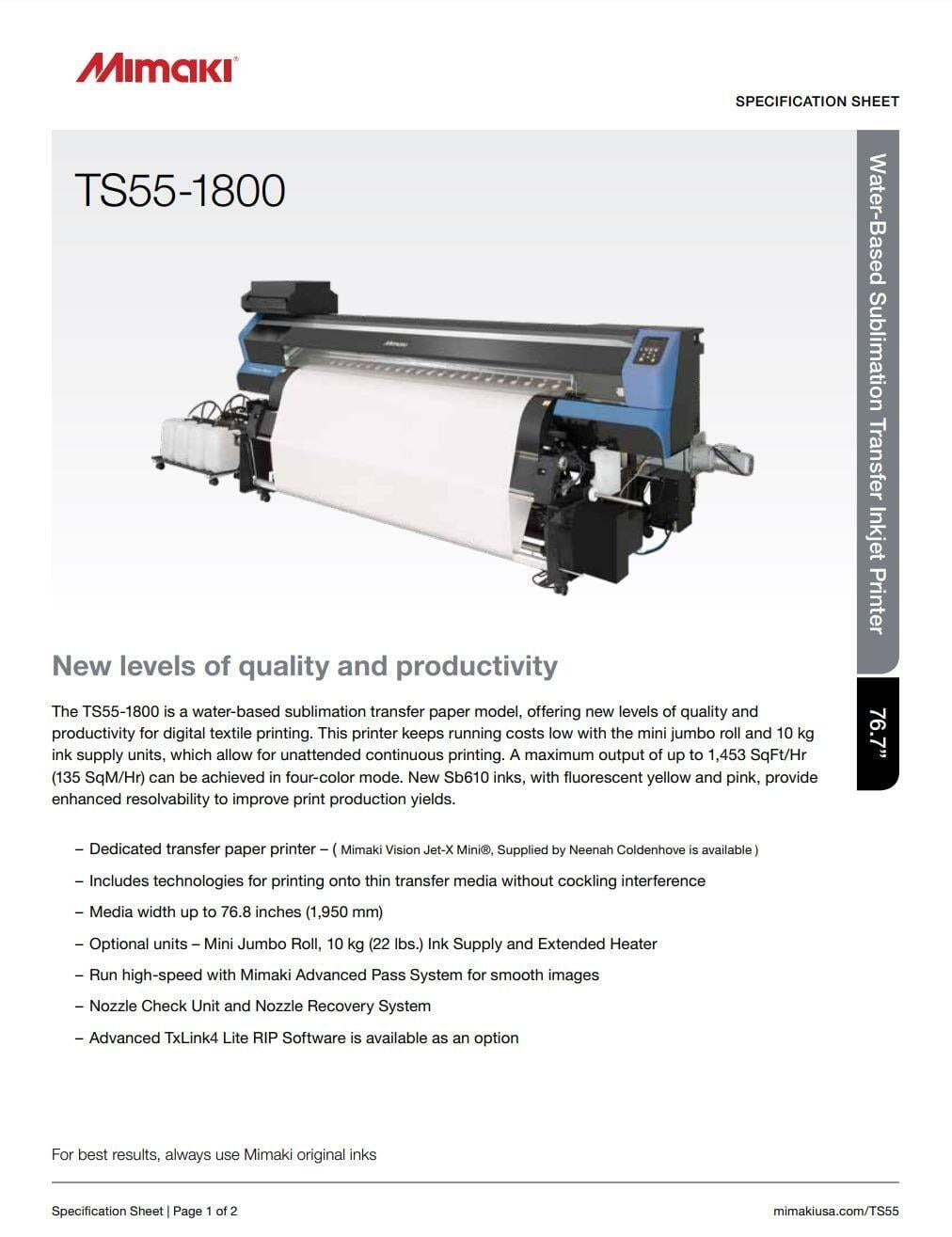

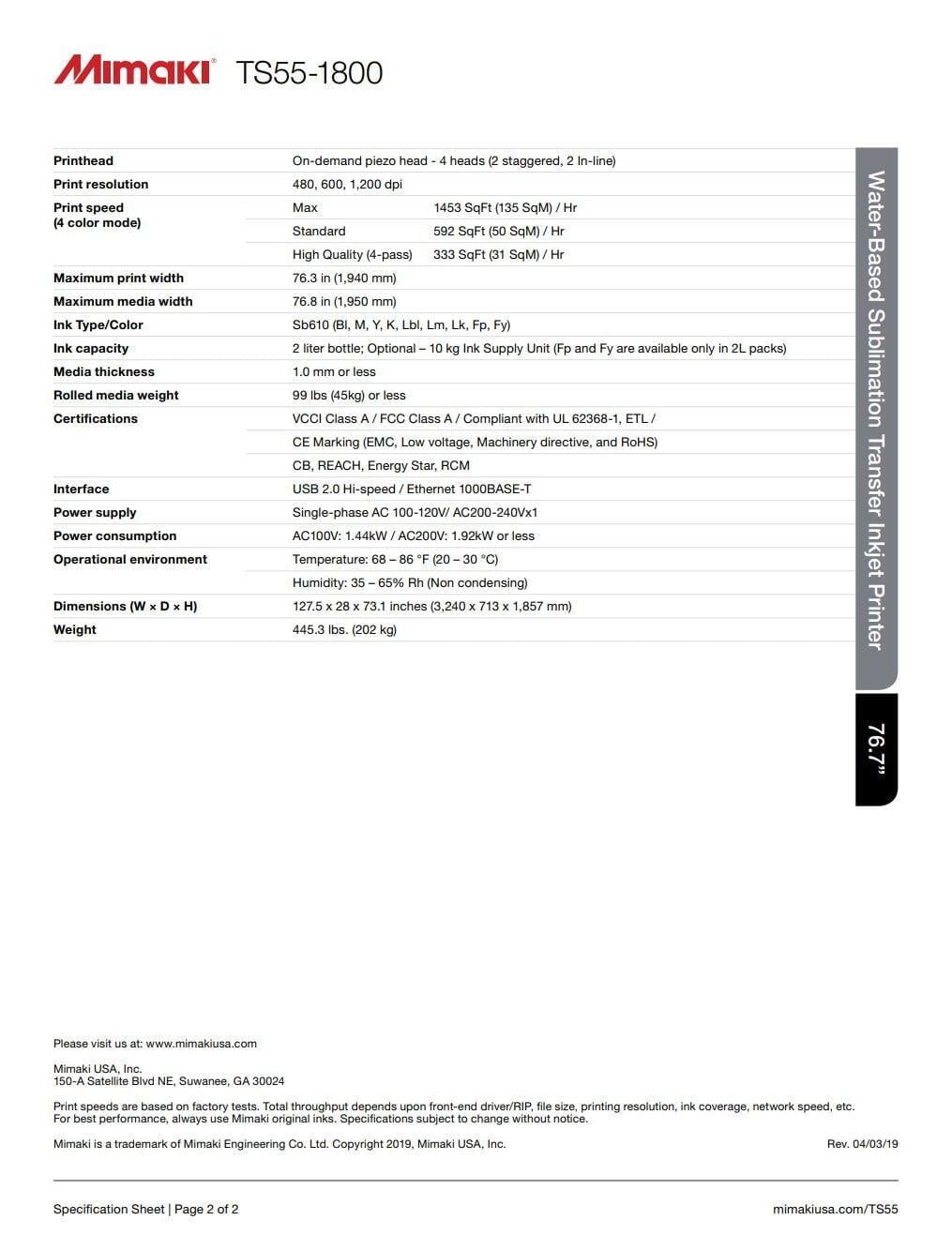

Specifications

• Print Technology: Piezoelectric drop-on-demand

• Maximum Print Width: 71 in (1,800 mm)

• Printhead Type: Variable droplet piezo printheads

• Maximum Resolution: Up to 1,440 dpi

• Ink Type: Solvent or Eco-Solvent (CMYK + optional Light Cyan, Light Magenta)

• Max Media Thickness: Up to 1.0 mm

• Max Media Weight: Roll media, up to 40 kg (88 lbs)

• Interface: USB / Ethernet

• Power Supply: AC 100–240V, 50/60Hz

• Operating Environment: 20–30°C / 35–65% RH

• Additional Features: MAPS4 for banding reduction, Intelligent Heater for media adhesion, precision feed system

Highlights

• High-speed printing for banners, vinyls, and wide-format graphics

• Superior color reproduction and smooth gradients

• Supports multi-layer printing with optional white ink (if using compatible ink sets)

• MAPS4 and anti-banding technologies for smooth, professional output

• Stable media feeding and precision control for large-format jobs

• Low-maintenance design with easy access to serviceable parts

• Energy-efficient operation

Applications

• Large-format signage and banners

• Vehicle graphics and decals

• Wall murals and interior décor

• Point-of-sale displays and exhibition graphics

• Retail promotional graphics

• Outdoor advertising and building wraps

Printer Size & Weight

• Dimensions (L × W × H): 3240 × 713 × 1857 mm
  ≈ 127.6 × 28 × 73.1 inches
  ≈ 10.6 ft × 2.3 ft × 6.1 ft

• Net Weight: 202 kg
  ≈ 445 lbs

Shipping Information

• Packaged Dimensions: Approx. 3350 × 800 × 2000 mm
  ≈ 131.9 × 31.5 × 78.7 inches

• Shipping Weight: Approx. 240–250 kg
  ≈ 529–551 lbs

• Crated securely for transport; forklift or pallet jack recommended

Recommended Inks

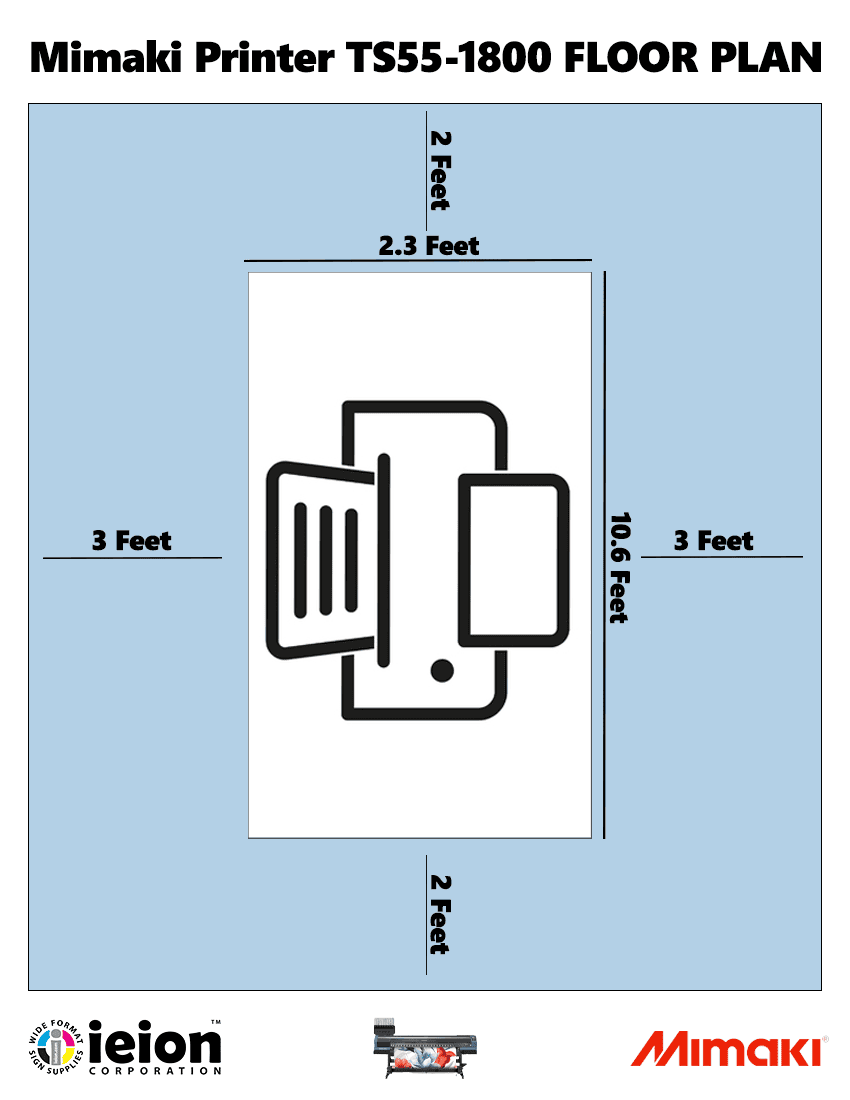

Floor Plan
