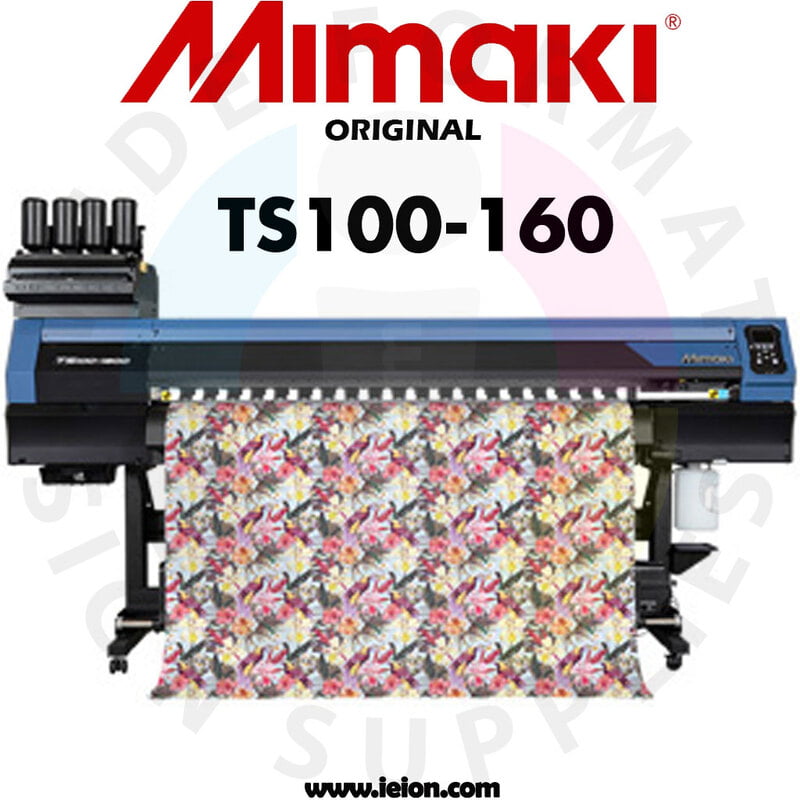

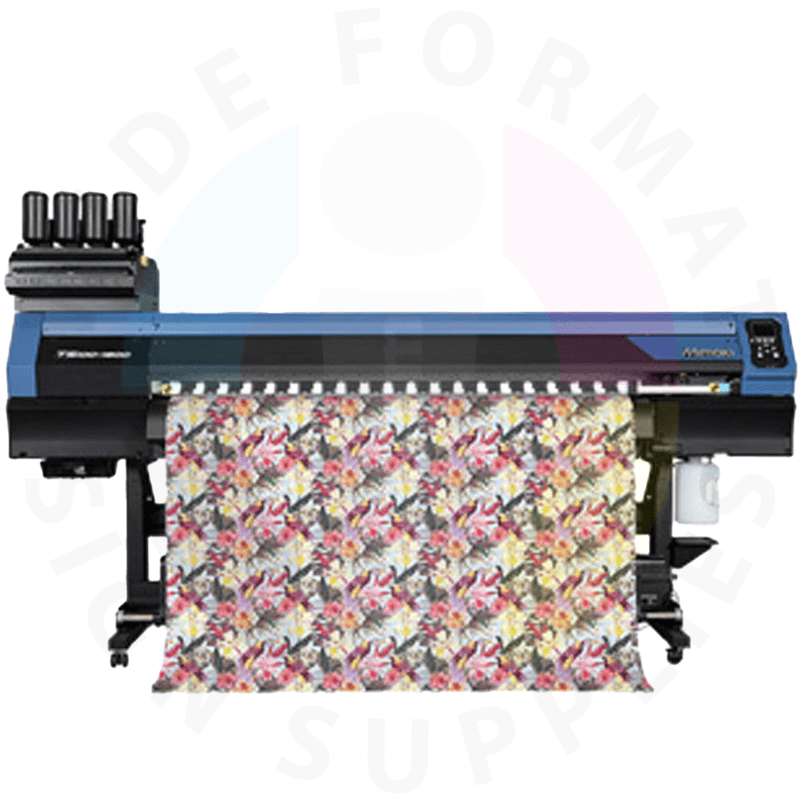

Mimaki Printer Inkjet TS100-1600-SA-STD

Specifications

• Printhead: On-demand piezo head (2 staggered layout)

• Print Resolution: 360, 600, 720, 900 dpi

• Print Speed (4-Color Mode): Up to 753 sq ft/hr

• Maximum Print Width: 1,610 mm (63.4 in)

• Maximum Media Width: 1,620 mm (63.8 in)

• Maximum Media Thickness: 1 mm or less

• Maximum Roll Diameter: φ 250 mm or less

• Maximum Roll Weight: 45 kg (99 lb) or less

• Ink Type / Color: Sublimation ink Sb610 (Blue, Magenta, Yellow, Black)

• Ink Capacity: 1 L bottle

• Interface: USB 2.0 / Ethernet 1000BASE‑T

• Power Supply: Single-phase AC100–120V / AC200–240V ±10%, 50/60Hz ±1Hz

• Operational Environment: Temperature 20–30 °C (68–86 °F), Humidity 35–65% RH (non-condensing)

Highlights

• Entry-level sublimation transfer printer with professional quality output

• About twice the print speed of previous models

• Equipped with Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS) for stable operation

• Dot Adjustment System (DAS) for automatic feed and dot alignment correction

• Ideal for sample production through to high-volume textile manufacturing

• Excellent for apparel, soft signage, interior décor, sportswear, and more

Applications

• Fashion apparel and sportswear

• Interior fabrics and décor

• Soft signage: flags, banners, tapestries

• Promotional textiles and team wear

• Roll fabrics for décor and furnishings

Printer Size & Weight

• Dimensions (W × D × H): 2,775 × 700 × 1,475 mm
  ≈ 109.3 × 27.6 × 58.1 inches
  ≈ 9.1 × 2.3 × 4.8 ft

• Net Weight: 166 kg
  ≈ 366 lb

Shipping Information

• Packaged Dimensions (estimated): 3,000 × 800 × 1,600 mm
  ≈ 118 × 31.5 × 63 inches

• Shipping Weight (estimated): 200–220 kg
  ≈ 440–485 lb

• Securely crated for transport; forklift or heavy-duty pallet jack recommended

Recommended Inks

• Mimaki Ink SUB SB610 1 L Bottle

• Mimaki SB610 2 Liter Bags W/C

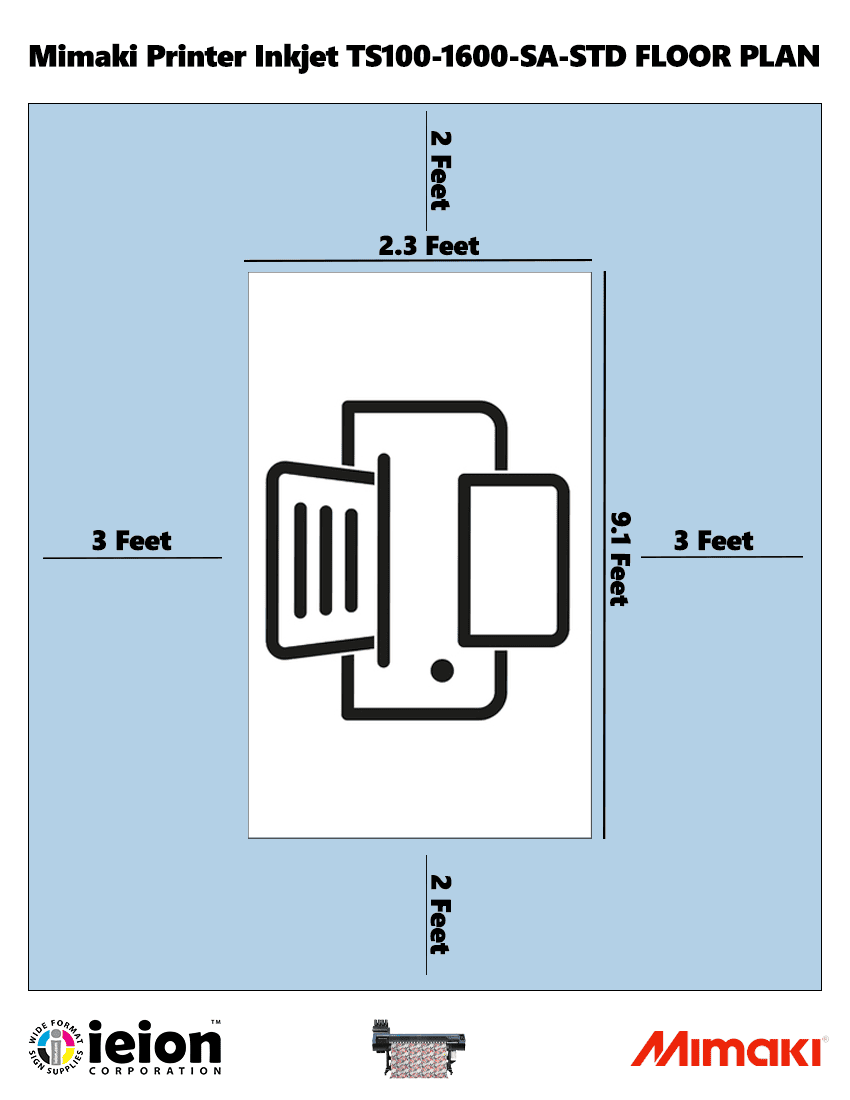

Floor Plan
