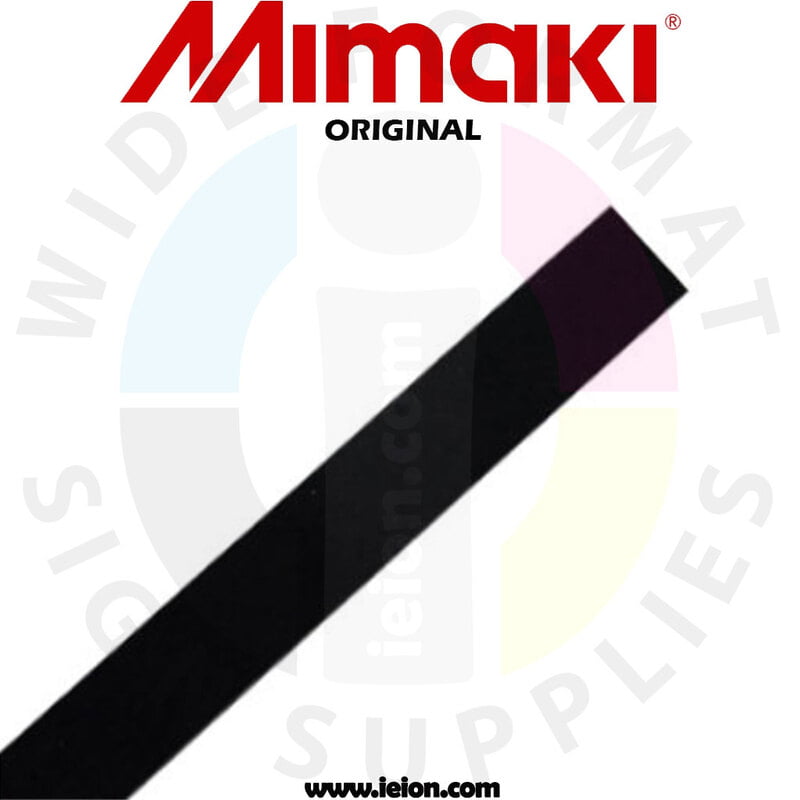

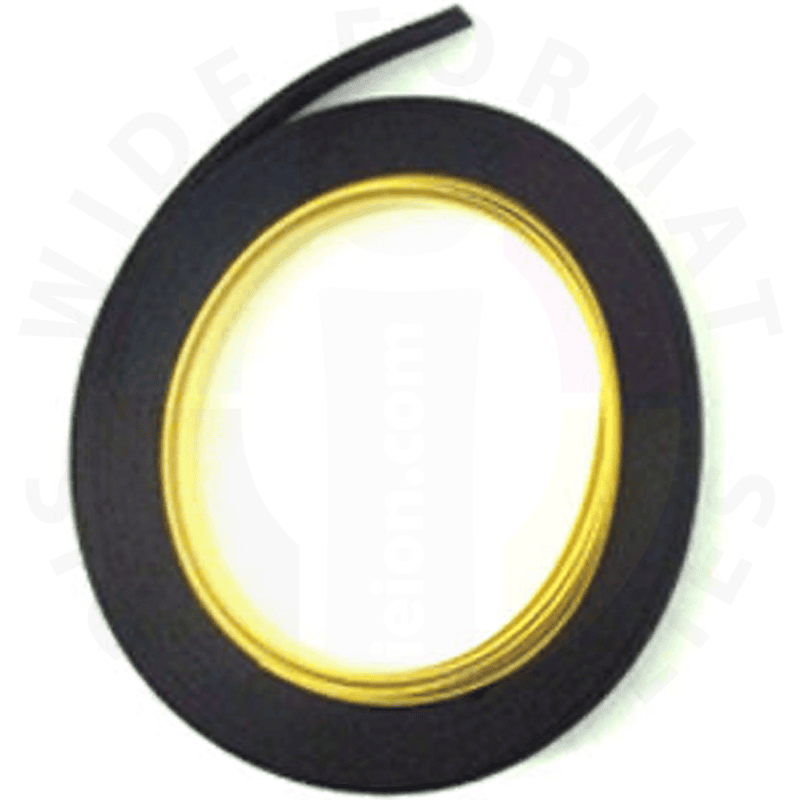

Mimaki Cutting Strip CJV30-160 Pen Line Rubber

Specifications

• Part number: SPC-0554

• Name: Pen Line Rubber (cutting strip)

• Compatibility: Mimaki CJV30-160

• Position: Platen channel under the cutting blade path

• Material: Durable elastomer strip

• Condition: Genuine OEM, new

• Included: One (1) pen line rubber for 160 cm width

Highlights

• Clean, accurate contour cutting — supports precise kiss-cuts and pop-outs

• Protects blade & platen — proper surface reduces chipping and premature wear

• Even cutting depth — consistent support across the full print/cut width

• Quick replacement — drop-in fit with factory length and profile

Uses and Details

• When to replace:

  • Deep grooves, nicks, or flat spots in the strip

  • Incomplete cuts, inconsistent weeding, or snagging along certain zones

  • Visible scoring from over-cut force

• Installation notes:

  • Power off; remove the old strip and clean the channel of debris/adhesive.

  • Seat the new strip evenly end-to-end; trim only if needed.

  • Perform a test cut and fine-tune cutting force/offset for your media.

• Maintenance tip: Use the minimum blade exposure and force required; rotate/replace blades regularly to extend strip life.
