Allwin Printer UV TI 126

• Print Heads: Supports 4–14 Konica Minolta KM1024A (not included)

• Print Resolution: 1440 dpi / 2160 dpi

• Print Speed: Up to 145 m²/h (4 rows)

• Color Configuration: CMYK, Double CMYK, CMYK + LC + LM, White, Varnish

• Ink System: UV LED curing ink

• Media Thickness: 0–25 mm

• Media Types: Glass, ceramic, metal, paperboard, leather, wallpaper, soft film, PVC, PP, PE

• Ink Supply: Automatic negative pressure continuous ink supply system

• Drying System: UV LED lamps

• RIP Software: Photoprint (Caldera optional)

• Operating System: Windows 7/10 (64-bit)

• Power Supply: 220V AC, 50/60Hz, 45A

• Max Power Consumption: 10 kW

• File Formats Supported: TIFF, JPEG, EPS, PDF

• High-speed printing up to 145 m²/h

• Supports both roll-to-roll and rigid media up to 25 mm

• Uses advanced Konica Minolta KM1024A print heads (not included)

• Multiple color configurations including White and Varnish

• Automatic negative pressure ink supply system for consistent flow

• Energy-efficient UV LED curing

• Compatible with Photoprint RIP (Caldera optional)

• Durable, high-quality construction

• Advertising and signage: banners, billboards, promotional materials

• Interior and exterior decor: wallpaper, glass, ceramics

• Packaging prototypes

• Custom products: phone cases, gifts, promotional items

• Industrial applications: automotive parts, electronics

Printer Size and Weight:

• Length: 19.57 ft (5970 mm / 235 in / 5.97 m)

• Width: 5.25 ft (1600 mm / 63 in / 1.6 m)

• Height: 5.38 ft (1640 mm / 64.5 in / 1.64 m)

• Weight: 4,850 lb (2200 kg)

Shipping Information:

• Package Dimensions: 20.34 ft × 5.74 ft × 5.91 ft (6200 × 1750 × 1800 mm / 6.2 × 1.75 × 1.8 m)

• Total Weight: 5,290 lb (2,400 kg)

Recommended Inks:

• Allwin Ink UV UVK 1 L Bottle

---

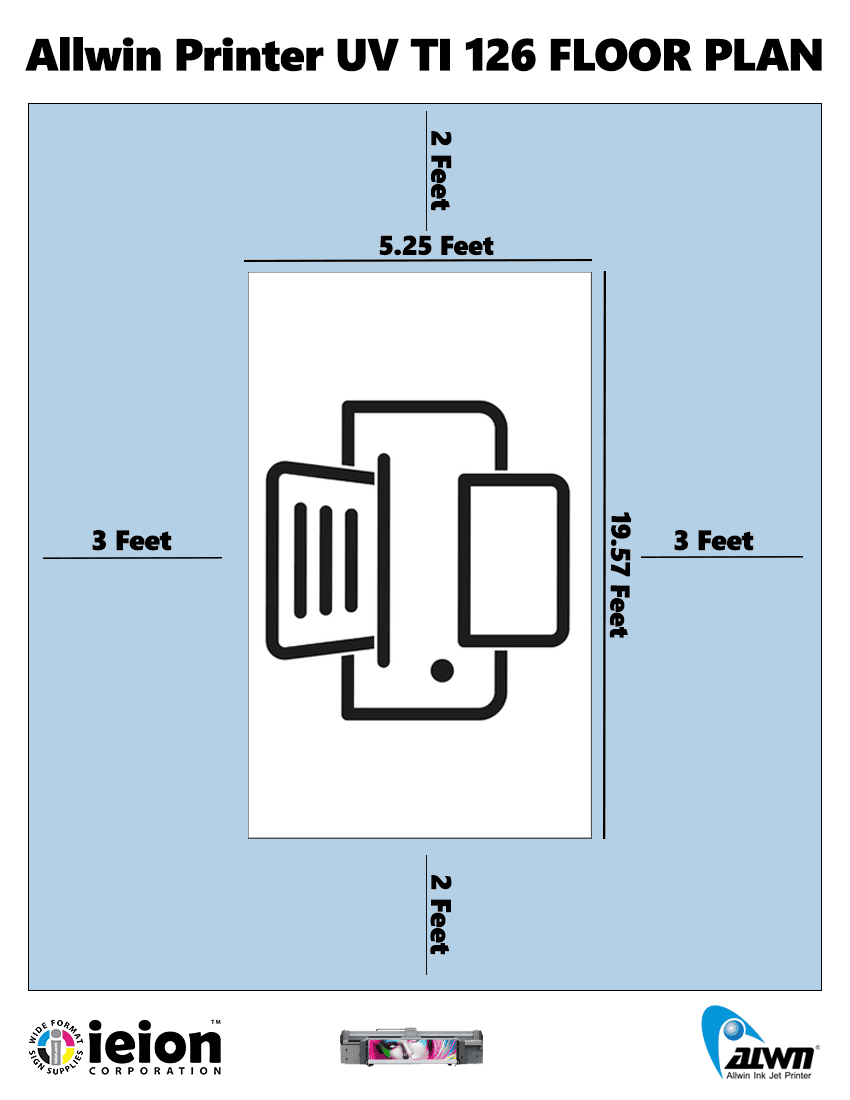

Floor Plan:
