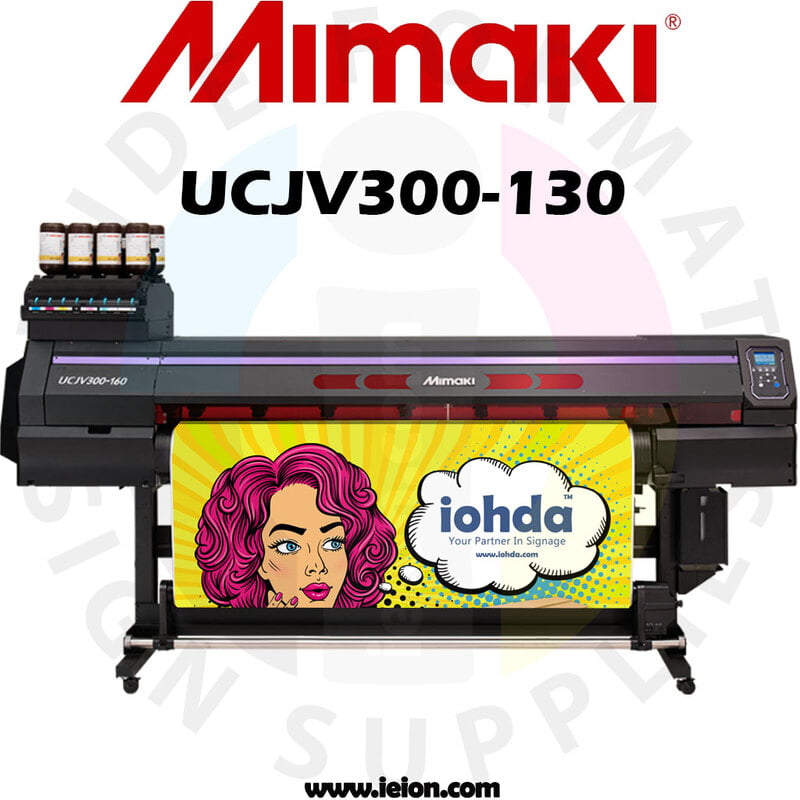

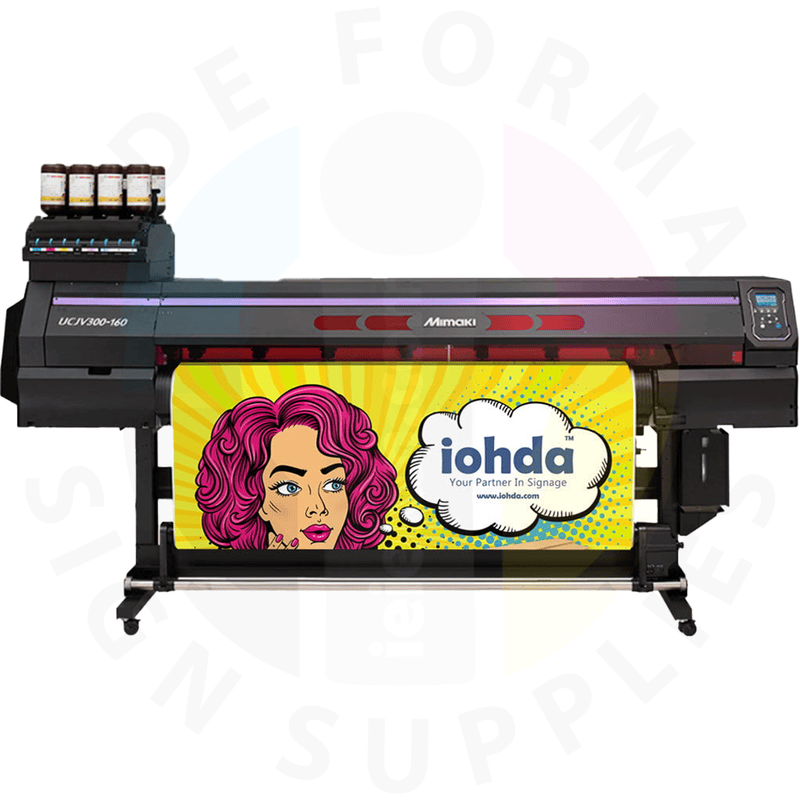

Mimaki Printer & Cutter UCJV300-130 LED UV

Specifications

• Print Technology: UV-LED curing

• Integrated Function: Print & cut system

• Maximum Print Width: 53 in (1,361 mm)

• Printhead Type: Piezo drop-on-demand

• Maximum Resolution: Up to 1200 dpi

• Ink Type: UV-LED (CMYK + White + Clear optional)

• Cutting Method: Drag-knife contour cutting

• Multi-Layer Printing: Up to 4-layer (Day/Night applications)

• Max Media Thickness: Up to 1.0 mm

• Interface: USB / Ethernet

• Power Supply: AC 100–240V, 50/60Hz

• Operating Environment: 20–30°C / 35–65% RH

Highlights

• Instant UV-LED curing for fast output

• Built-in print-and-cut workflow

• White and clear inks for premium visual effects

• Enables 4-layer and multi-layer printing

• Excellent color accuracy and high durability

• Low heat LED curing ideal for sensitive materials

• Energy-efficient, low-maintenance system

Applications

• Window graphics

• Stickers and labels

• Backlit and day/night signage

• POP and retail displays

• Packaging prototypes

• Contour-cut decals

• Indoor and outdoor advertising prints

Printer Size & Weight

• Dimensions (L × W × H): 2650 × 776 × 1475 mm
  ≈ 104.3 × 30.5 × 58.1 inches
  ≈ 8.7 ft × 2.5 ft × 4.8 ft

• Net Weight: 177 kg
  ≈ 390 lbs

Shipping Information

• Packaged Dimensions: 2750 × 900 × 1650 mm
  ≈ 108 × 35 × 65 inches

• Shipping Weight: Approx. 230–250 kg
  ≈ 507–551 lbs

• Ships in reinforced protective crate for secure transport

Recommended Inks

• Mimaki Ink UV LUS 170 1 L Bottle

• Mimaki Ink UV LUS 175 1 L Bottle

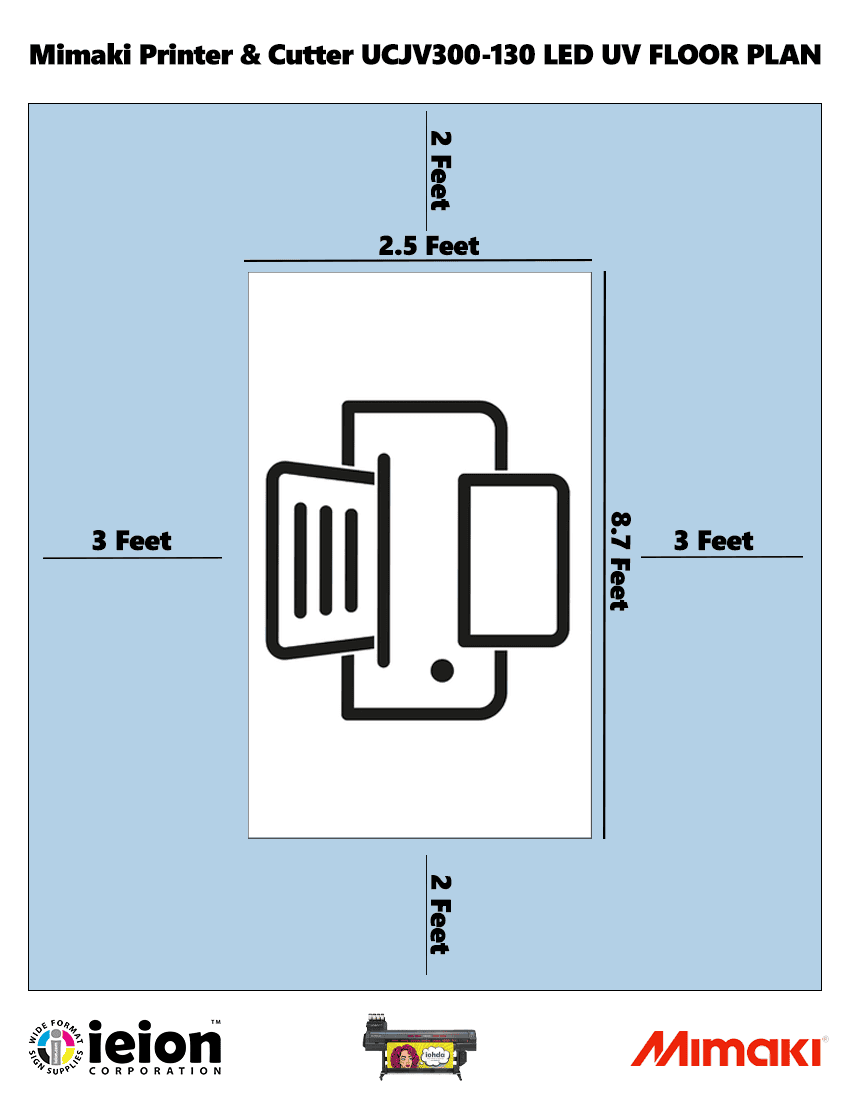

Floor Plan
