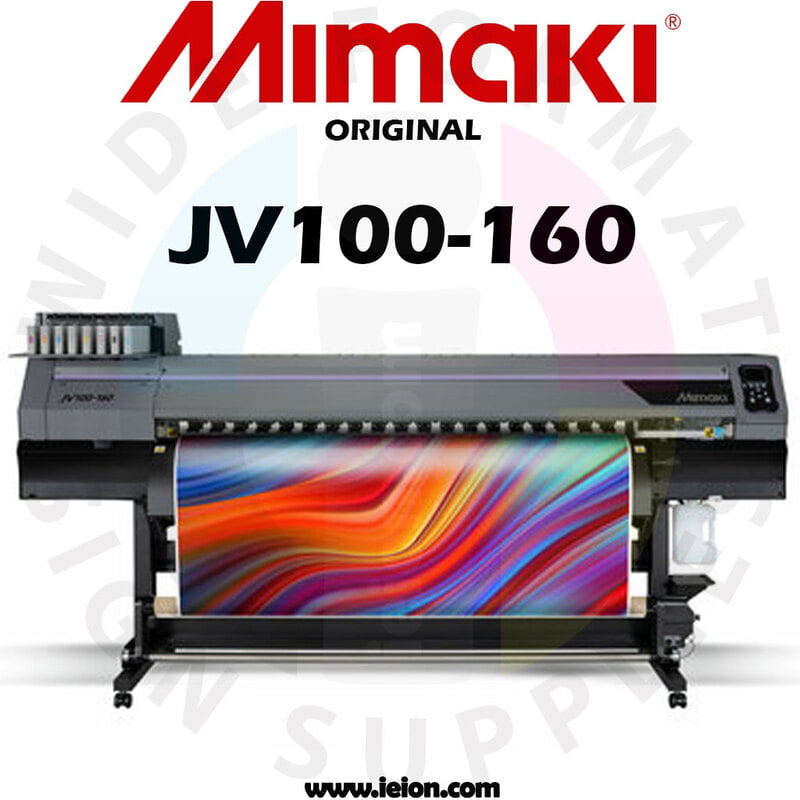

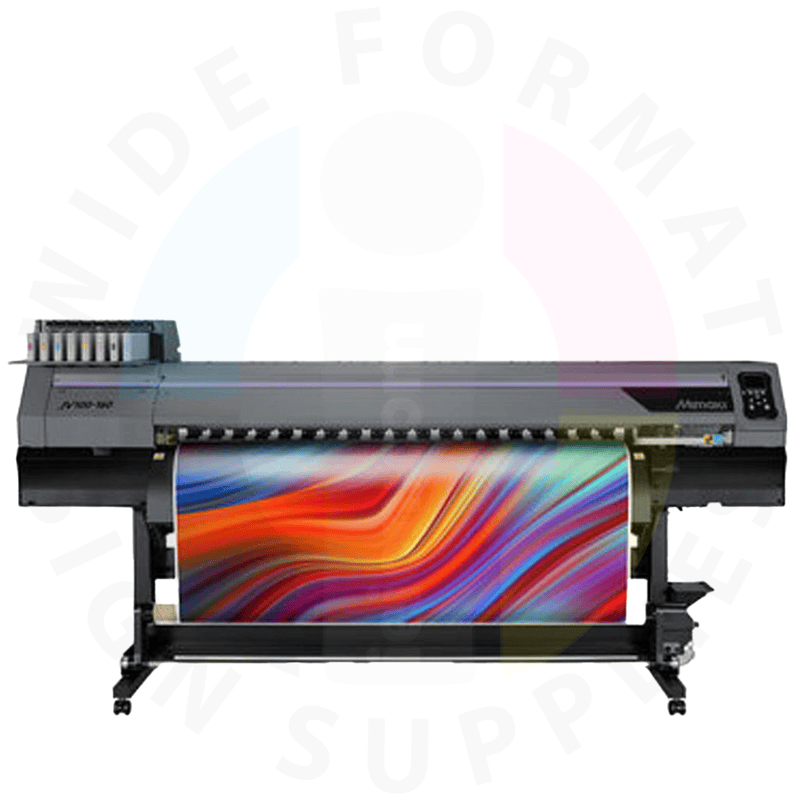

Mimaki Printer JV100-160C

Specifications

• Printhead: On-demand piezo head (two staggered layout)

• Print Resolutions: 360, 600, 720, 900, 1200 dpi

• Ink Type/Color: Eco-Solvent ink options (CMYK, optional Light Cyan, Light Magenta, Light Black, Orange)

• Maximum Print Width: 1,610 mm (63.4 in)

• Maximum Media Width: 1,620 mm (63.8 in)

• Maximum Media Thickness: Up to 1.0 mm

• Maximum Roll Diameter: φ 250 mm or less

• Maximum Roll Weight: 45 kg (99 lb) or less

• Interface: USB / Ethernet

• Power Supply: AC 100–240V, 50/60Hz

• Operational Environment: Temperature 20–30 °C (68–86 °F), Humidity 35–65% RH (non-condensing)

Highlights

• High-quality eco-solvent printing with wide color gamut

• MAPS4 system reduces banding and improves smoothness

• Dot Adjustment System (DAS) for automatic feed and dot alignment correction

• Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS) for reliable printing

• Entry-level cost with professional-grade performance

• Ideal for indoor and outdoor signage, decals, banners, and promotional graphics

Applications

• Outdoor and indoor signage

• Banners and posters

• Vehicle wraps and decals

• Wallpaper and wall graphics

• Window graphics and point-of-sale displays

• Stickers, labels, and general large-format print

Printer Size & Weight

• Dimensions (L × W × H):

  • Full recommended space: 3,775 × 2,700 mm
    ≈ 12.38 × 8.86 ft

  • Machine footprint: 2,775 × 700 mm
    ≈ 9.1 × 2.29 ft

• Net Weight: 166 kg

  • Leg Unit: 25 kg (55 lb)

  • Printer Unit: 141 kg (310 lb)

  • Total: 366 lb

Shipping Information

• Packaged Dimensions (estimated): 3,900 × 850 × 1,600 mm
  ≈ 12.8 × 33.5 × 63 in

• Shipping Weight (estimated): ~200–220 kg
  ≈ 440–485 lb

• Crated for safe transport; forklift or pallet jack recommended

Recommended Inks

• Mimaki Ink ECO SS21 440 mL Cartridge

• Mimaki Ink ECO SS21 2 L Bag

• Mimaki SS22 440 mL Cartridges

• Mimaki Ink ECO BS4 600 mL Bag

• Mimaki Ink ECO BS4 2 L Bag

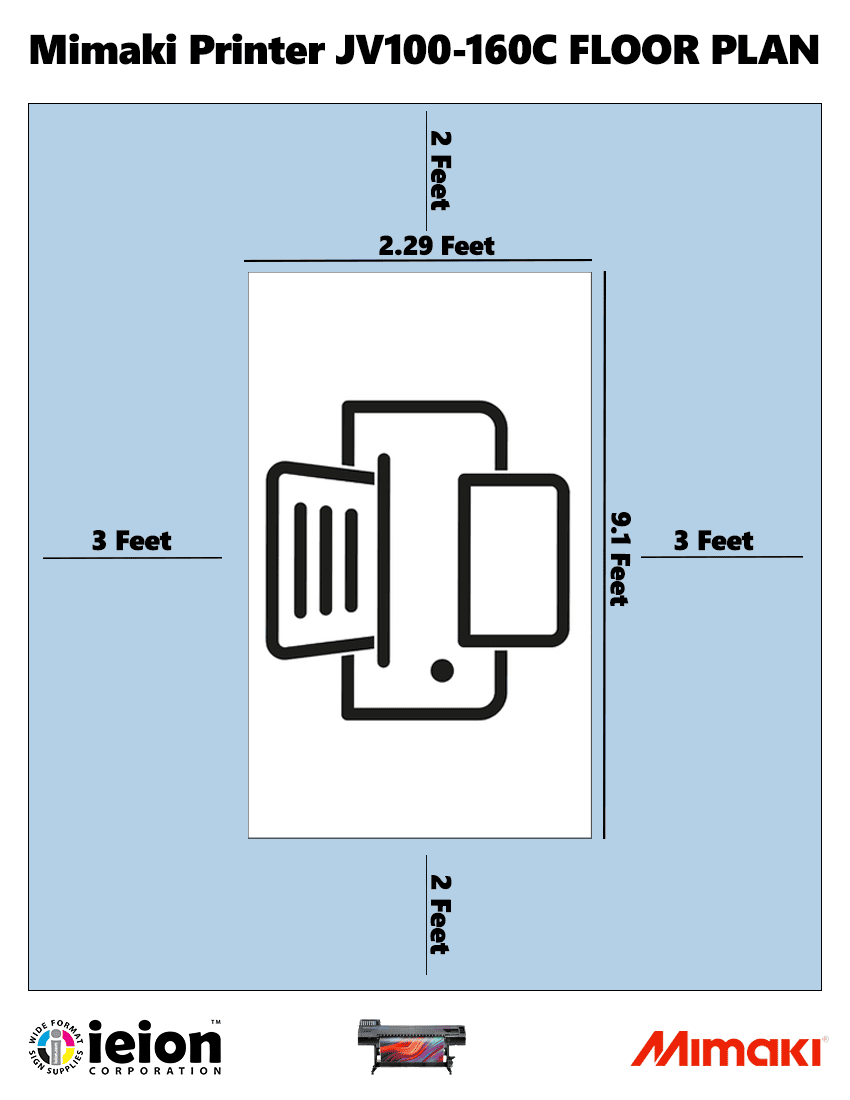

Floor Plan
