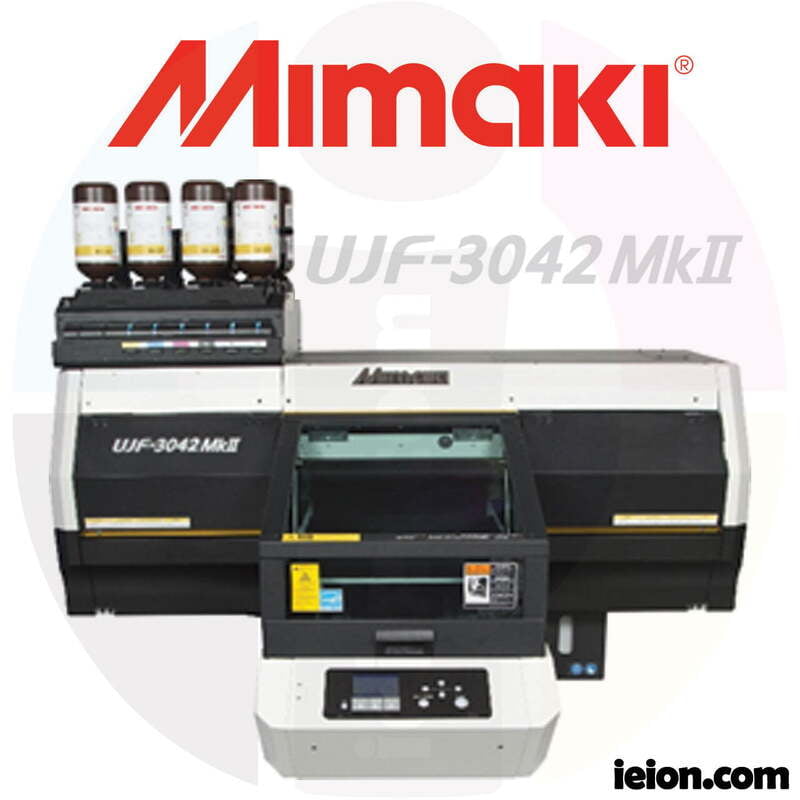

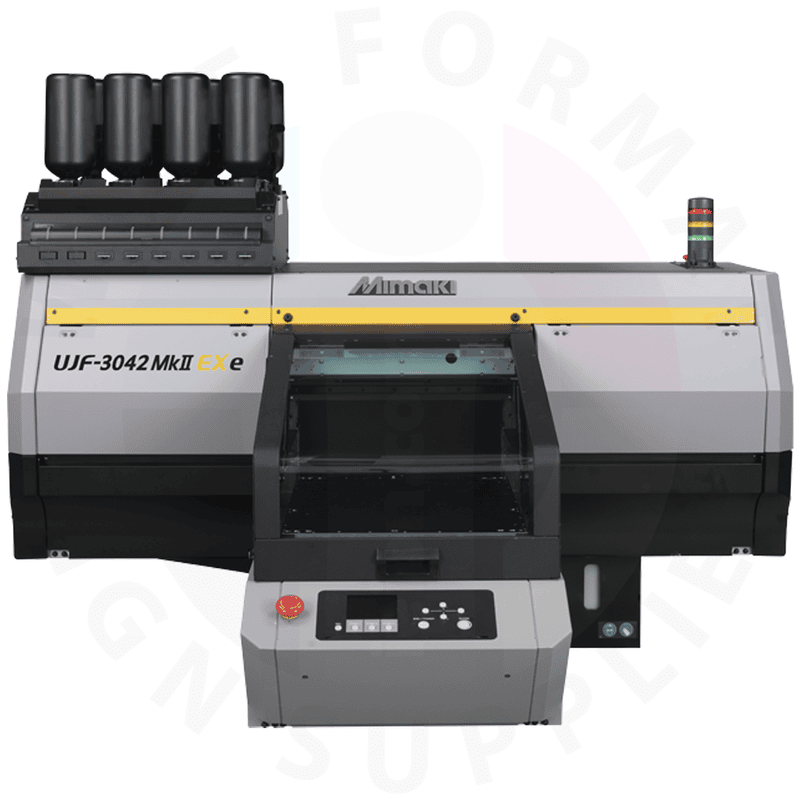

Mimaki UJF-3042MKlle EX Printer
Tags:
UJF-3042MkII is advanced flatbed UV-curable inkjet printer that create high-value-added product, achieve superior productivity and print quality, and have a greater ability to accommodate a wide range of application.
Supports A3 size & 153 mm height.
Choose Quantity
$21,276.00
Product Details
Specifications
- Approximately 20% faster print speed than with conventional models.
The best-in-class productivity delivers effective on-demand print production. - Advanced mechanical structure improves value-added print products
- High-performance inks expand the range of applications
- Clear ink print to represent the texture and to enhance design
- Glossy finish, Matt effect, Embossed print
- 129 types of texture library are ready - Mimaki's unique print-quality management enhances color representation
- Maintenance functions ensure worry-free print operation
Specifications
| UJF-3042MkII EX | ||
|---|---|---|
| Printhead | On-demand piezo printhead (4 printheads arranged in a staggered line) | |
| Print resolution | Maximum: 1200 x 1200 dpi | |
| Maximum printable area | Width: 300mm Length: 420mm (A3 size) | |
| Ink | Type/Color | LH-100 (C, M, Y, K, Lc, Lm, W, Cl) LUS-120 (C, M, Y, K, Lc, Lm, W, Cl) LUS-150 (C, M, Y, K, W) PR-200 (Primer) |
| Packaging | LH-100, LUS-120, PR-200: 250 ml bottle / 1 L bottle LUS-150: 1 L bottle | |
| Media | Thickness | 153 mm (6 in) or less |
| Weight | 5 kg (11 lb) or less | |
| Certifications | VCCI class A / FCC class A / ETL UL 60950-1 / CB / CE Marking (EMC, Low voltage, Machinery directive, and RoHS)/ REACH / Energy Star / IEC60825-1 | |
| Interface | Ethernet / USB2.0 | |
| Noise level | Standby mode: 55dB or less (FAST-A, measured1 m away from the source) Continuous operation: 65 dB or less Discontinuous operation: 70 dB or less | |
| Power supply | Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz | |
| Power consumption | 1,000W or less | |
| Operational environment | Temperature | 20 - 30 degC (68 - 86 degF) |
| Humidity | 35 - 65％Rh | |
| Recomended Temperature | 20 - 25 degC (68 - 77 degF) | |
| Thermal gradient | ±10 degC (±50 degF) /h or less | |
| Dust level | Equivalent to a general office floor level | |
| RIP software | RasterLink6 (Bundled) | |

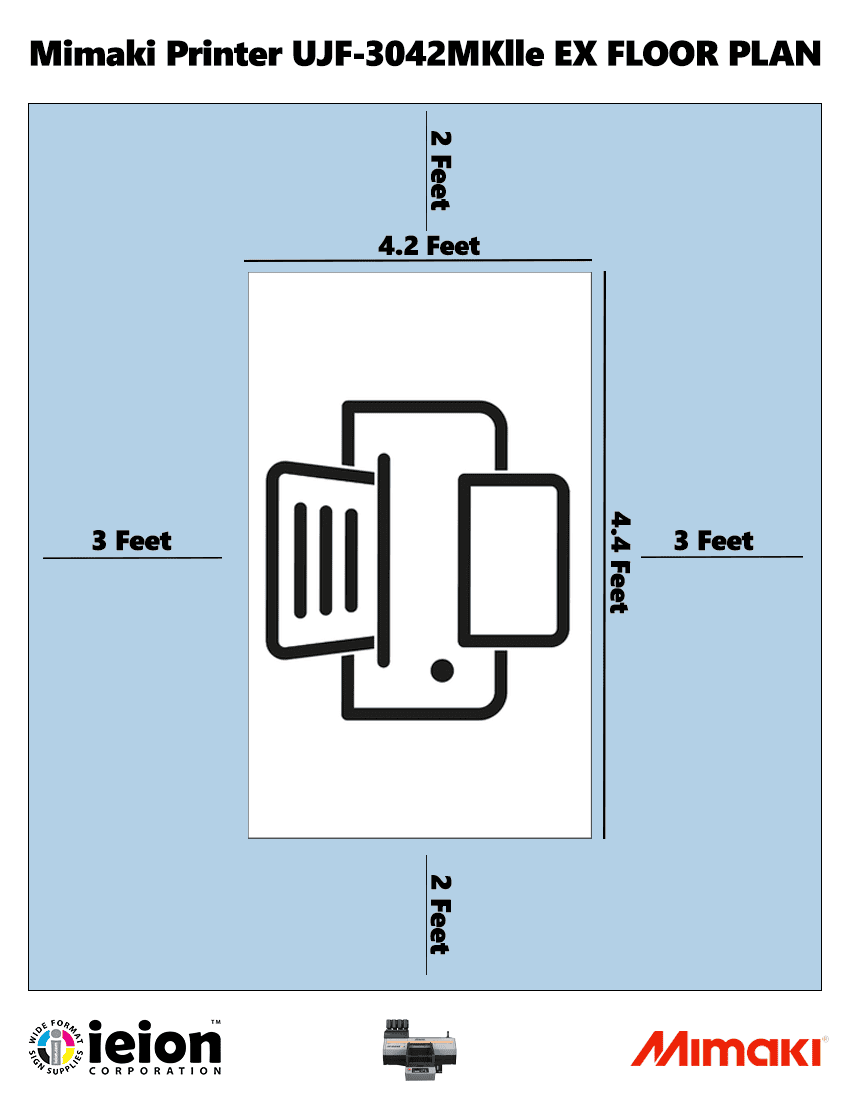

| Dimensions (W × D × H) *1 | 1,355 mm × 1,290 mm × 856 mm (53.4 in × 50.8 in × 33.7 in) | |
| Weight | 135 kg (297.6 lb) |
Equipment Type
- Equipment TypePrinters
Printers Specifications
- PrintheadsRicoh Gen5
- Base SystemFlatbed
- Main featurePrint
- Printing Size1x1.4
- Rip SoftwareRasterlink
- Computer IncludedYes
- Max Media Weight110 lbs
- Ink SystemFix with Chips
- Power Supply110v
- Power Consumption3kVA
- InterfaceUSB 3.0
- Vacuum Table Zones1
- Adjustable Layout PinsNo
- Waveform controlYes
- Variable Dot TechnologyYes
- Fine DifussionYes
- Ink CirculationYes
- Nozzle Recovery SystemYes
- Printer Ink BaseUV
