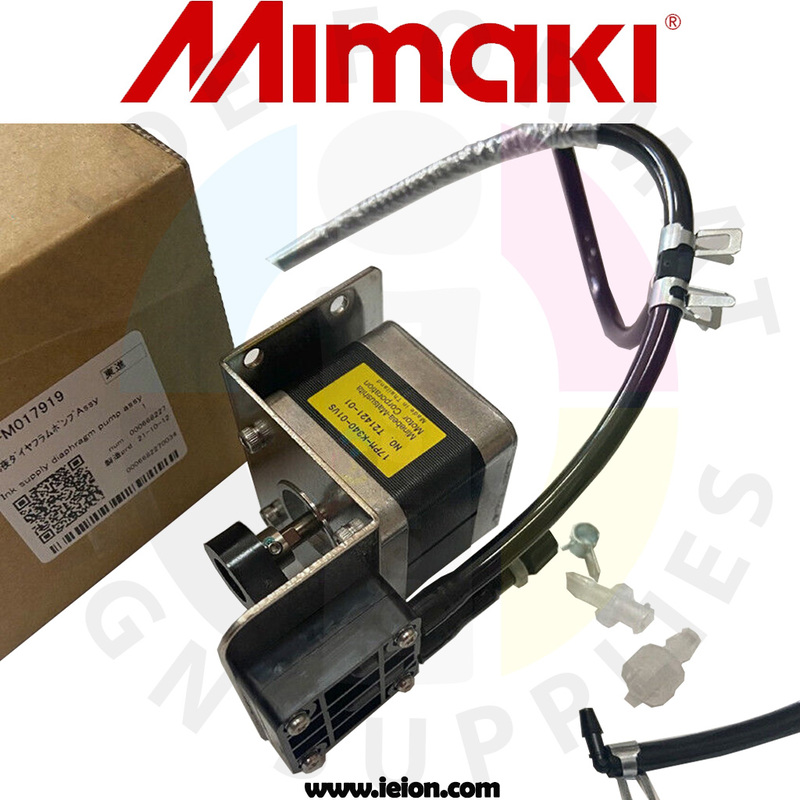

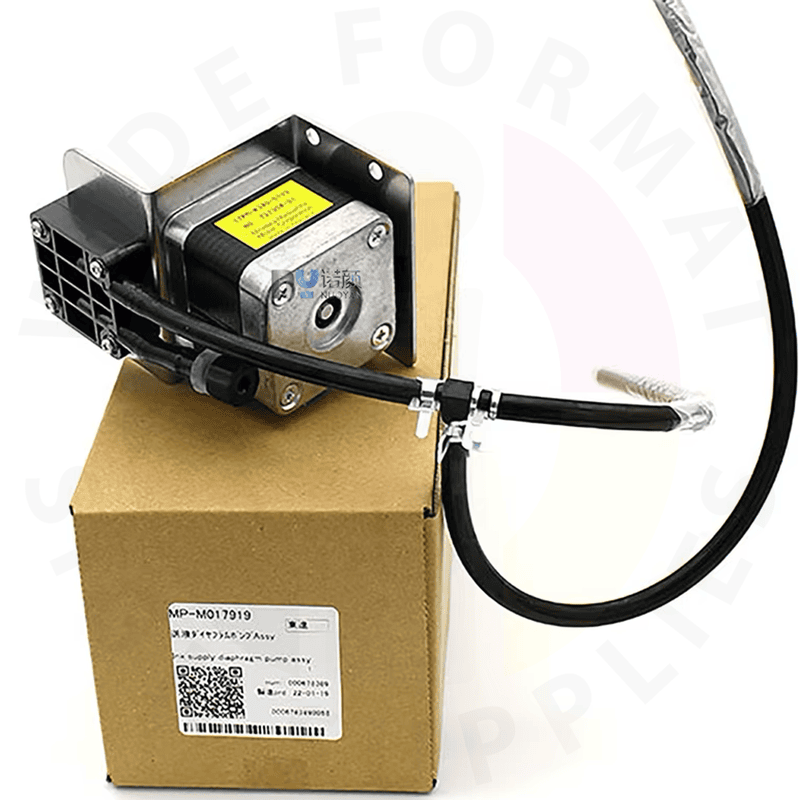

Mimaki Pump Ink Supply Diaphragm NM Assy

Specifications

• Type – Diaphragm Pump Assembly: Uses a flexible membrane (diaphragm) mechanism rather than gears or pistons.

• Voltage – 24 V DC (typical): Operates from the standard supply used in many Mimaki models.

• Power – Low‑power design (approx. 3‑5 W) depending on model and load: Efficient for continuous operation.

• Flow Rate – Moderate flow sufficient for ink supply duty: Designed to handle continuous supply for one or several colors/subtanks.

• Compatibility – NM series, Mimaki ink supply drip‑feed systems or sub‑tank systems: Fits into rigs that require this type of pump.

• Materials – Ink‑resistant internal diaphragm, chemical compatible housing: Built to resist corrosion, swelling or degradation from solvents or curable inks.

• Durability – Designed for regular use; may need replacement after a certain number of operating hours or after signs of wear (leaks, reduced flow).

Highlights

• Delivers steady, reliable ink flow to the printhead/subtank

• Helps maintain consistent pressure to avoid banding or gaps in print output

• OEM quality fit ensures compatibility and reduces risk of leaks or misalignment

• Low maintenance; replacement only needed when performance drops

• Designed to withstand the chemical and environmental stresses typical in Mimaki printing environments

Applications & Uses

• Replacement pump for failing or weak ink supply in Mimaki NM ink supply systems

• Useful in tuning performance in solvent or UV/LED Mimaki printers where flow or pressure issues occur

• Helps avoid “Ink Supply” error messages caused by insufficient supply or pressure fluctuations

• Employed during preventive maintenance to maintain consistent print quality and reduce downtime

• Suitable for print shops that use Mimaki equipment and need OEM‑equivalent spare parts
