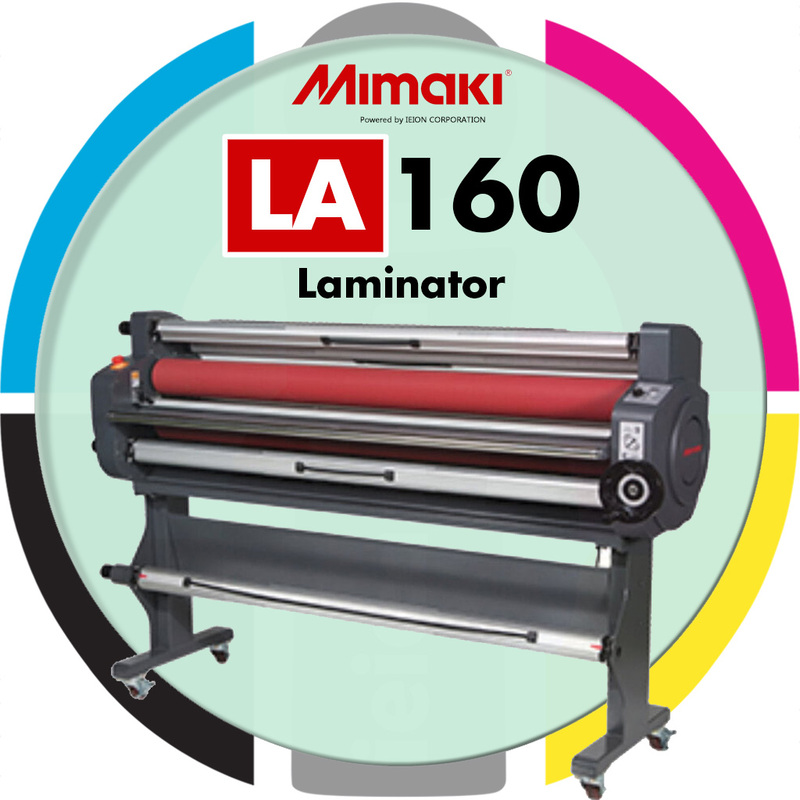

Mimaki LA-160 Laminator
The Mimaki LA Laminator series are heat-assisted devices that improve overlaminate film adhesion and reduces the potential for silvering effect that is created by pressure sensitive overlaminates.
Mimaki LA Series features:- One model available:
- LA-160W: 62.2” (1580 mm)
- Fast throughput speeds of up to 295 linear inches per minute
- Easy to use, with all functions on one operations panel
- Easy access to pressure handle and foot pedal
- Take-up reel makes it easy for one person to operate the entire process
- Designed for use with Mimaki Vision Laminate 310 (Gloss) film
Heat-assist provides superior finishing.
LA Series laminators are heat-assisted devices with a maximum temperature of 140??F (60??C). This heat assistance improves overlaminate film adhesion, particularly to surfaces printed with UV ink, and reduces the potential for silvering effect created by pressure sensitive overlaminates.
Fast throughput speeds.
Laminating speeds of up to 295 linear inches per minute – or nearly five inches per second – means that the finishing can keep up with production and reduce bottlenecks.
Simple and reliable operation.
This easy-to-use laminator includes all functions on one operation panel, with easy access to the pressure handle and foot pedal. Additionally, a take-up reel makes it easy for one person to control the entire process.
Mimaki Vision Laminate.
Designed specifically for use with UV inks and LA Series laminators, Mimaki Vision Laminate 310 (Gloss) film offers fine finishing with a glossy feel while maintaining color brightness of the print. This high quality, heat assisted, overlaminate is also a cost-effective alternative to cold laminating films.
Complete system from Mimaki
LA Series laminators with Mimaki Vision Laminate film are the ideal companions to a UCJV Series UV-LED cut-and-print device. Because UCJV prints are instant-dry, they can be immediately finished on an LA Series laminator. This complete, harmonized system ensures reliable performance and quality output for those times when a protective overlaminate is preferred.
Technical overview of the Mimaki LA Series| Specification | LA-160W | |
| Type | Roll-based laminator | |
| Settable media width (max) | 62.2” (1580 mm) | |
| Laminating speed (max) | 295.27” (7500 mm) per minute | |
| Film thickness (max) | 35 mm | |
| Core diameter (max) | 3 inches | |
| Warming temperature (max) | 140??F (60??C) | |
| Power consumption | 1800W or less | |
| Dimensions (W x D x H) | 78.8” x 21.7” x 50.4” (2000 x 550 x 1280 mm) | |
| Weight | 452 lbs. (205 kg) |
Supplies List for the Mimaki LA Series Mimaki Vision Laminate 310-137
Size 54” (1270 mm x 50 m)
MaterialCalendared PVC Finish / ColorGlossy / Transparent Release paperGlassine paper ThicknessRepresentative value 0.07 mm (including adhesive) Outdoor durability 3 years (estimated)
Equipment Type
- Equipment TypeLaminators
