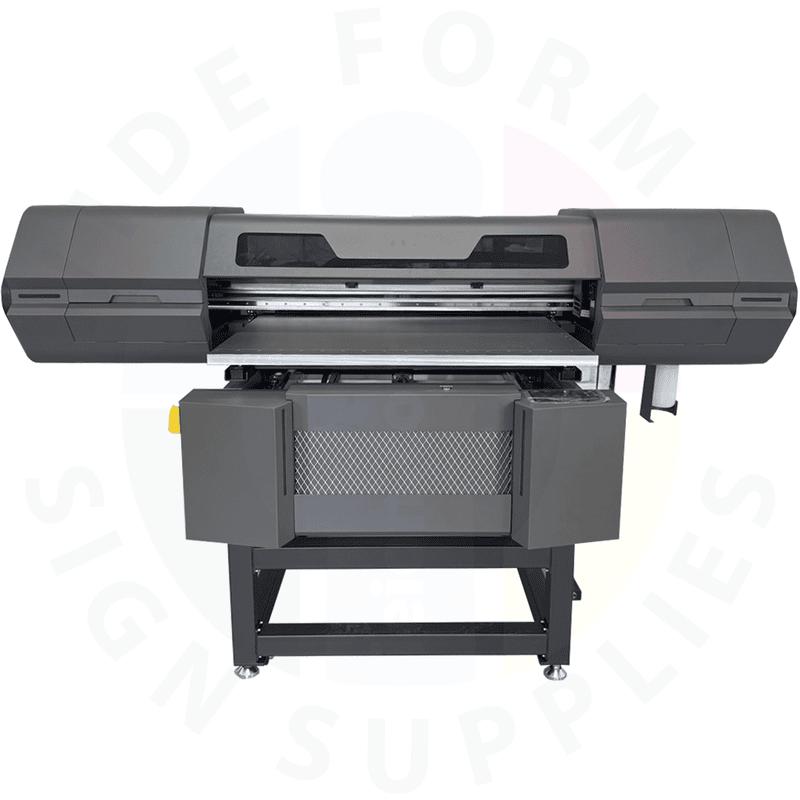

Allwin Printer UV LA 2x3

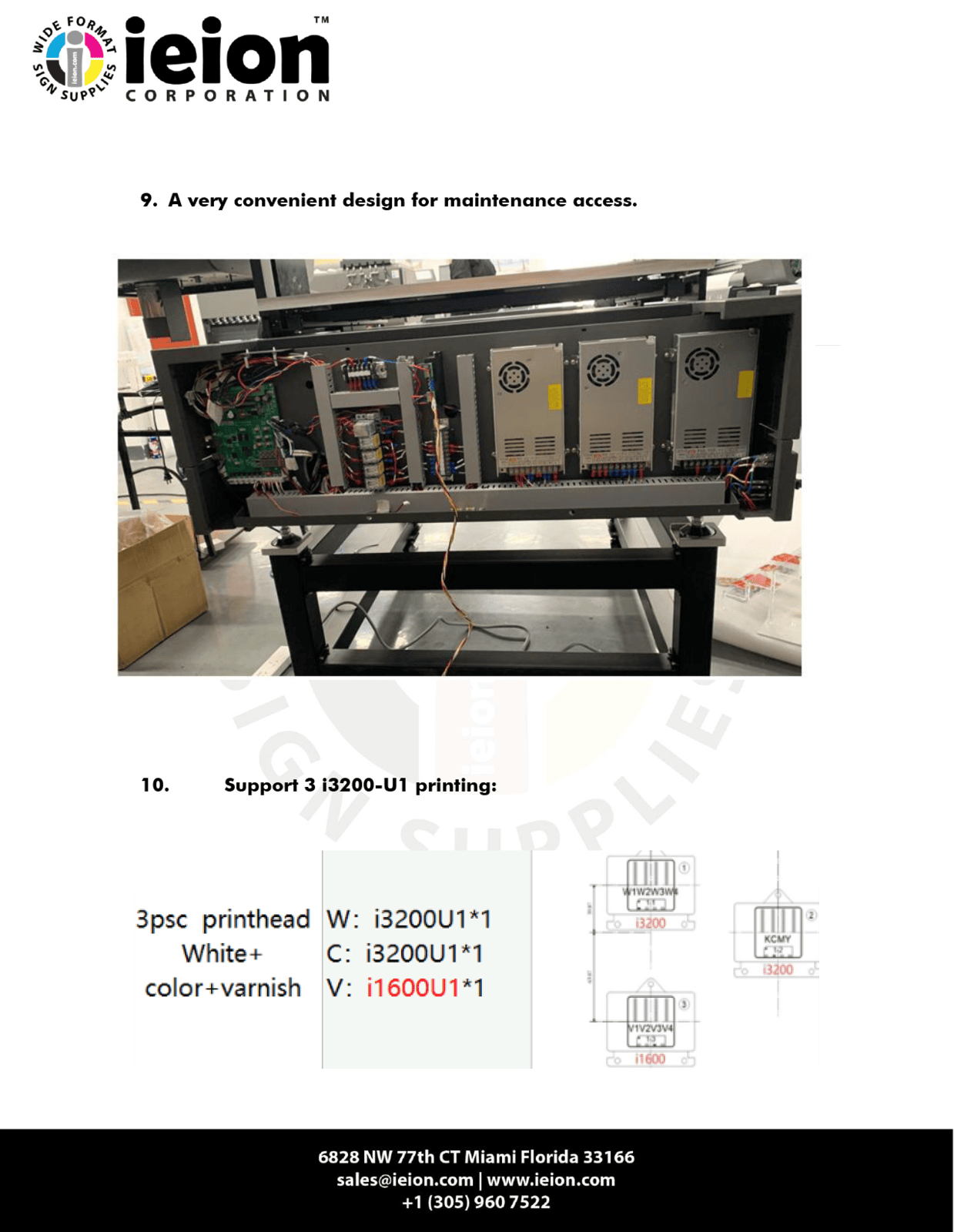

Print Head Configuration:

This printer supports up to 3 Epson i3200 print heads, each dedicated to a specific function:

• Print Head A: White

• Print Head B: CMYK

• Print Head C: Varnish Glossy

Note: Print heads are sold separately.

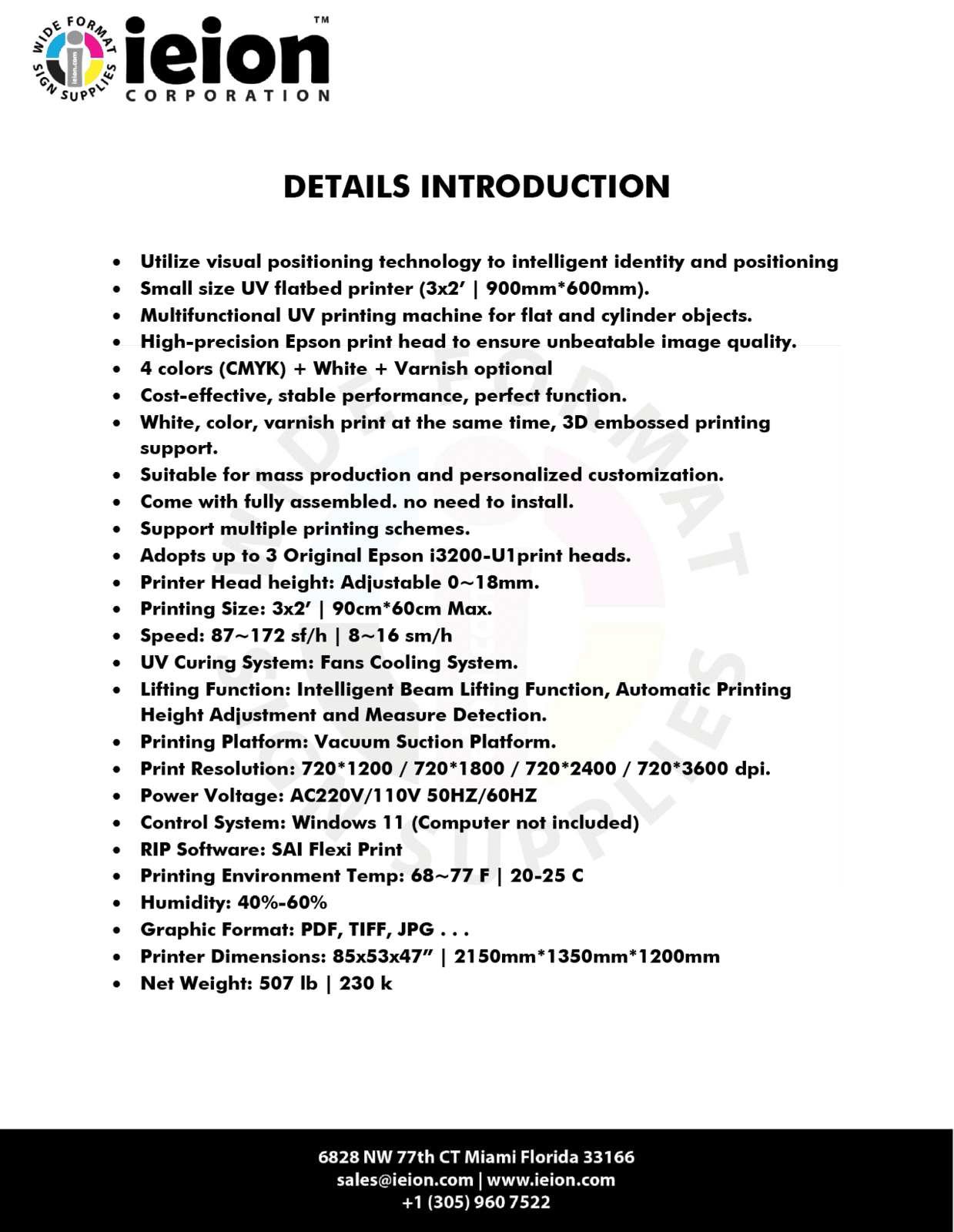

Specifications:

• Model: Allwin LA Printer 2x3

• Print Technology: Flatbed UV LED

• Print Area: Up to 2 × 3 ft (rigid media)

• Print Heads: 3 Epson i3200 (not included)

• Head Functions: White, CMYK, Varnish Glossy

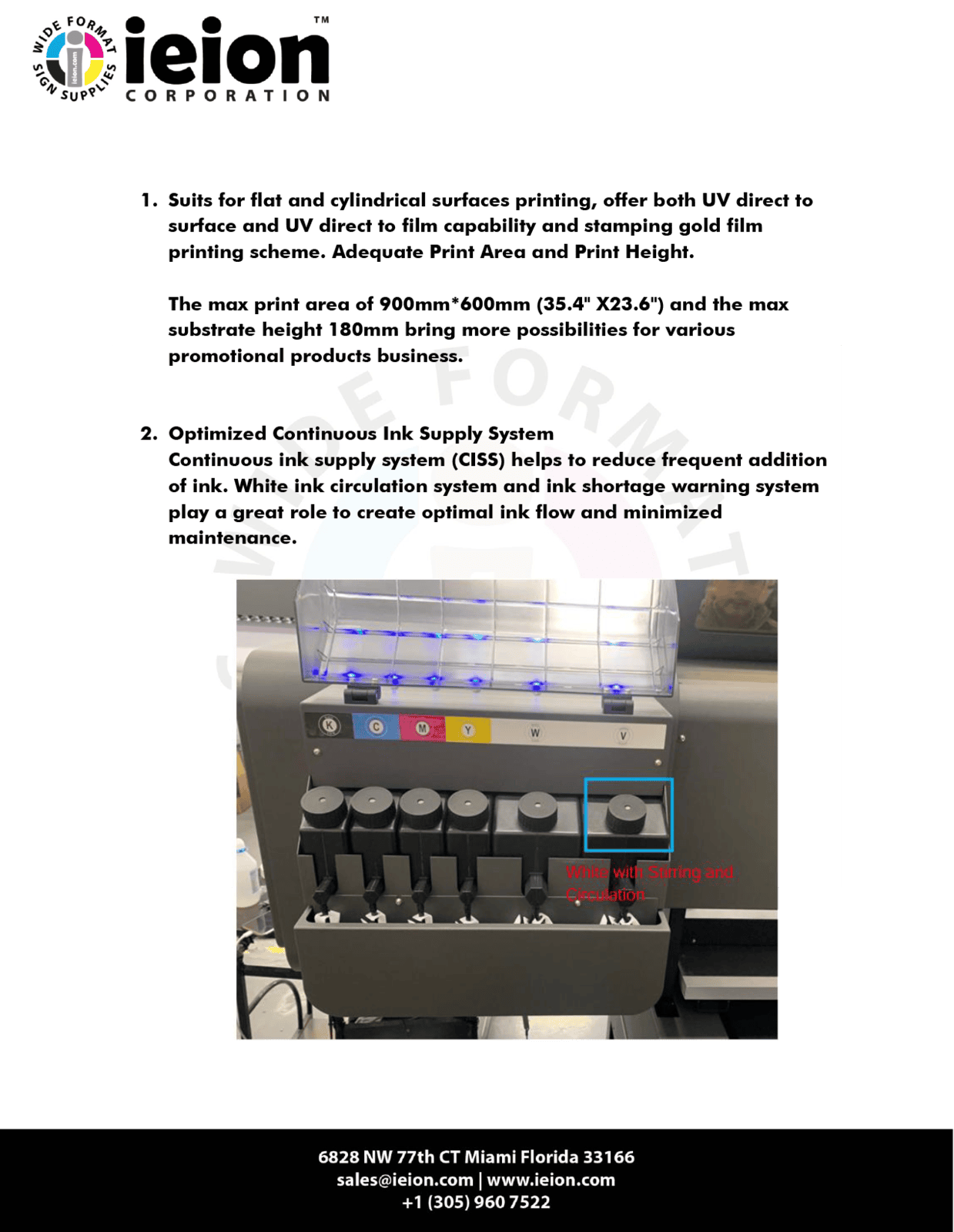

• Ink System: Open bulk (chip-free), 1.5L per color

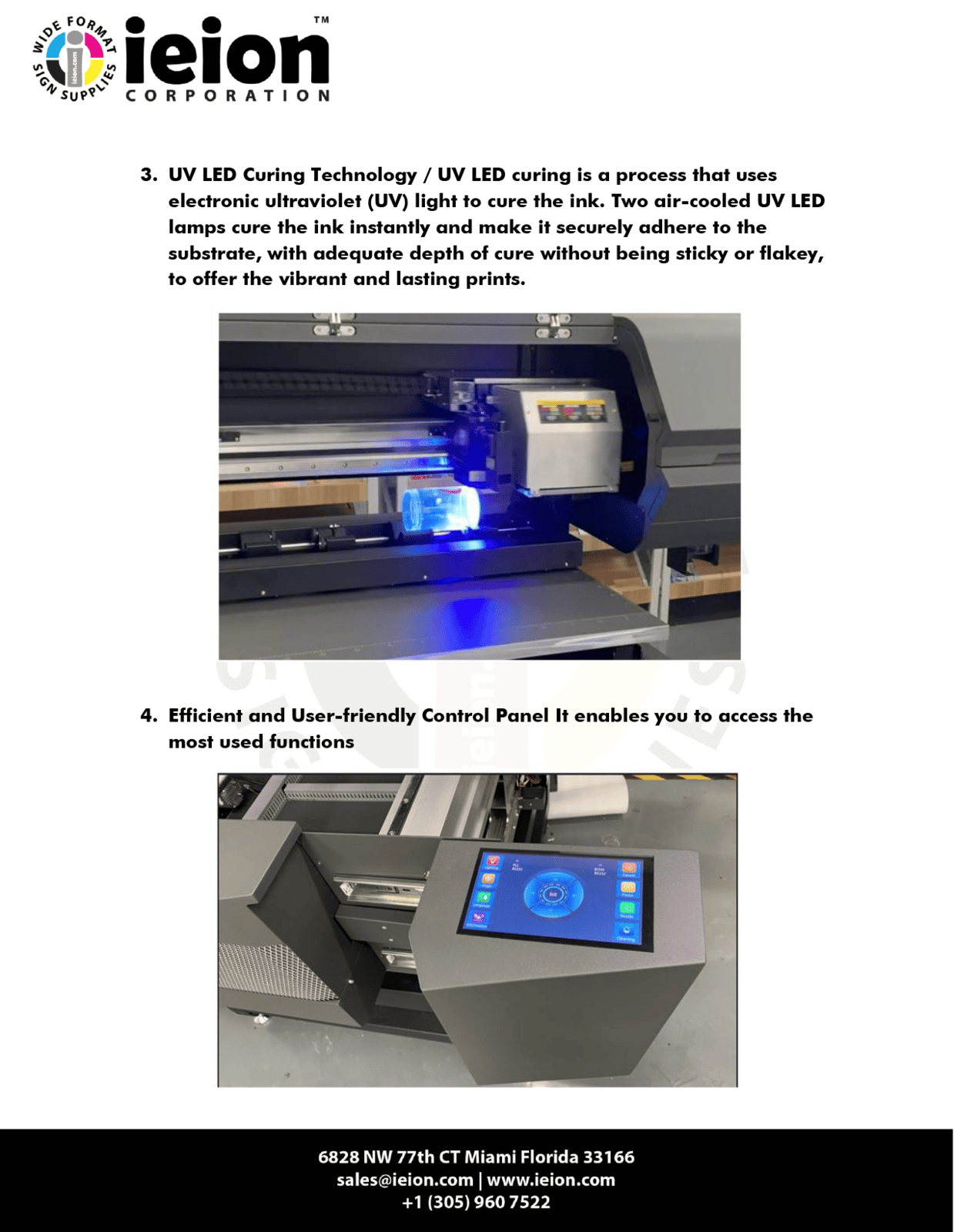

• UV Lamps: 2 for bidirectional printing + 1 for varnish

• Software Included: SAI FlexiPrint RIP

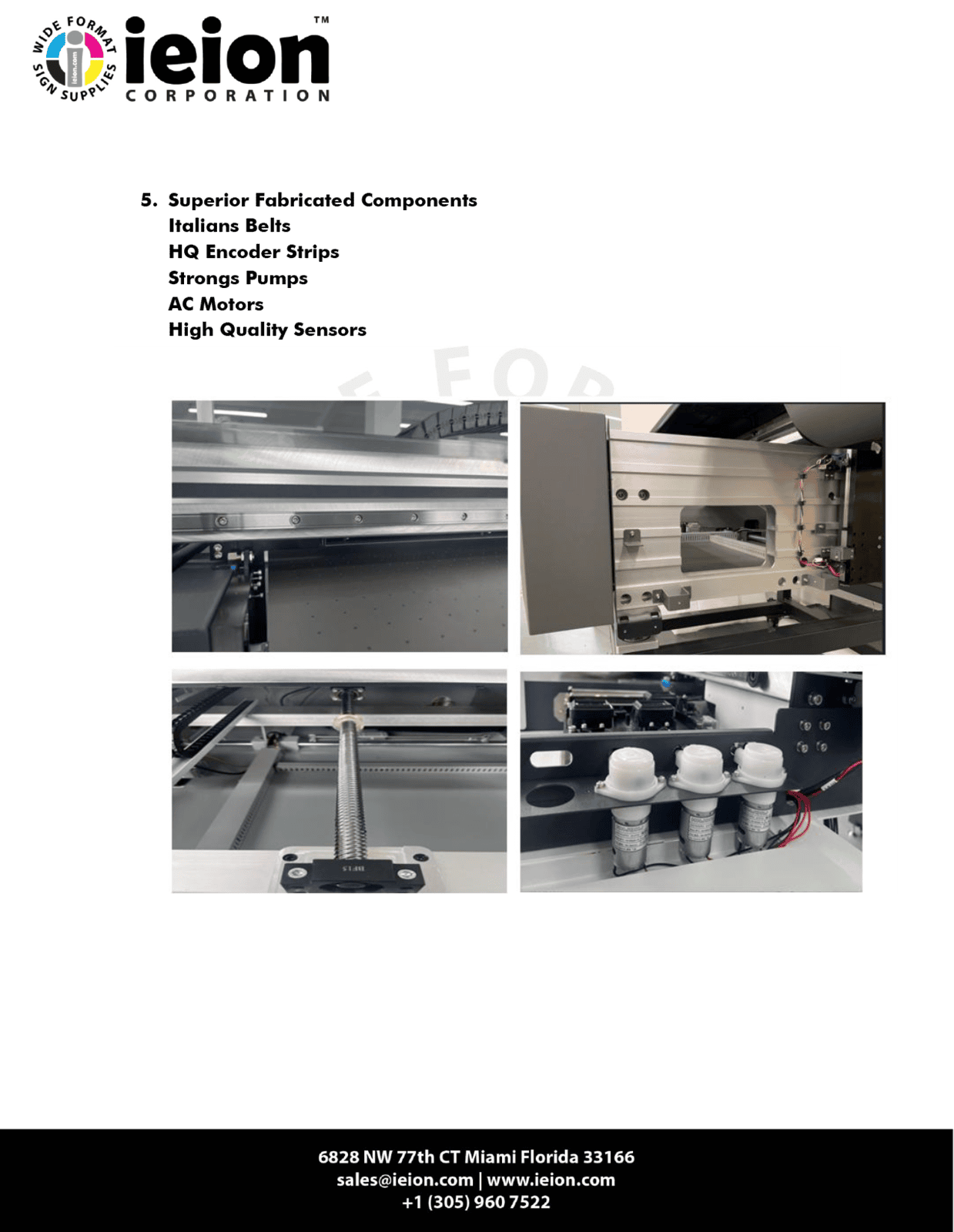

• Component Quality: High-quality components throughout

• Power Supply: 220V / 5kVA

• Power Protection: Tron Trafo Regulator recommended (not included)

• Installation & Training: Not included

Highlights:

• Flatbed UV LED printing for rigid media up to 2 × 3 ft

• Open bulk ink system with 1.5L tanks per color – chip-free

• Dedicated print heads for White, CMYK, and Varnish Glossy

• 2 UV lamps on both sides of the carriage for bidirectional printing

• 1 additional UV lamp for Varnish Glossy application

• SAI FlexiPrint RIP software included for advanced color control

• Ideal for specialty applications such as signage, packaging, and promotional items

Applications and Uses:

• Signage and display graphics

• Packaging and promotional items

• Specialty printing on rigid materials

• Vehicle wraps and decals

• Banners and backlit prints

• Interior décor and commercial applications

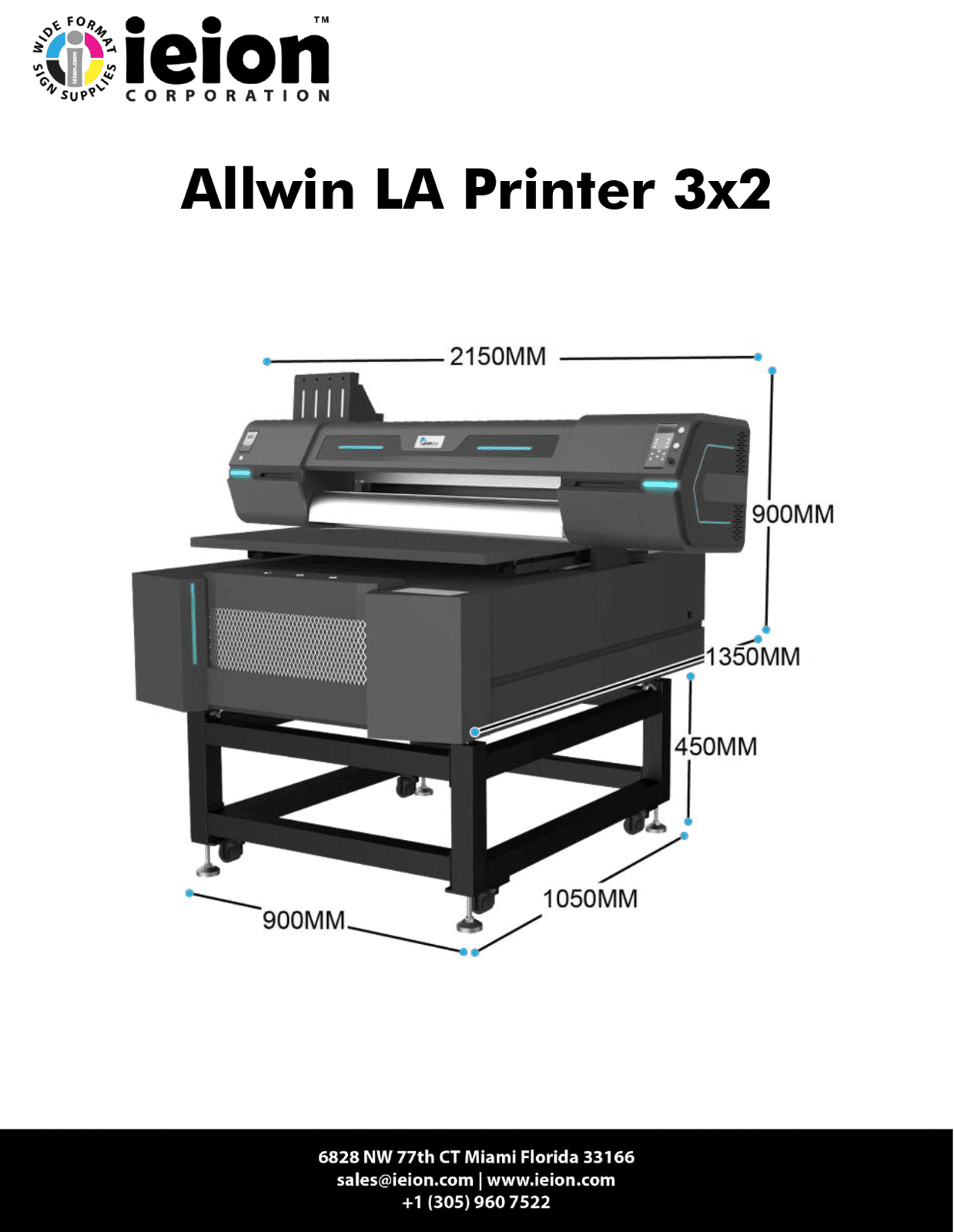

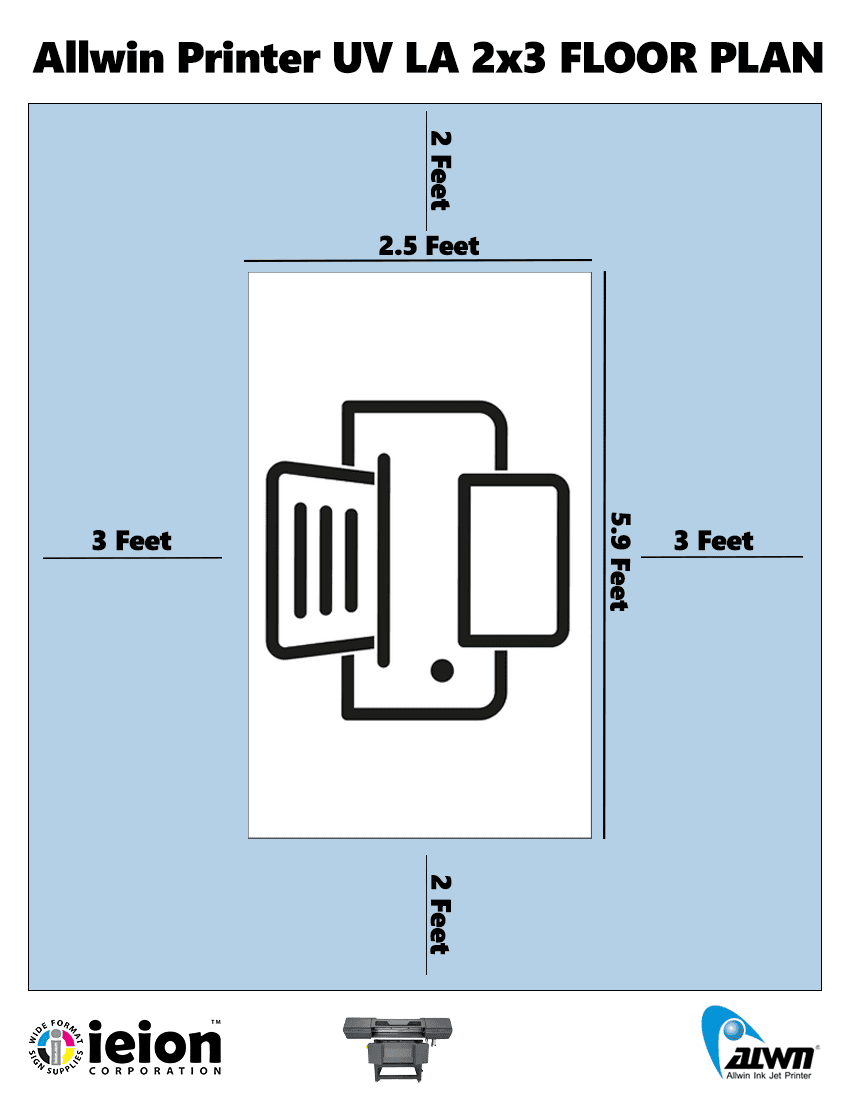

Printer Size and Weight:

• Length: 5.9 ft (70.8 in / 1.8 m)

• Width: 2.5 ft (30 in / 0.76 m)

• Height: 5 ft (60 in / 1.52 m)

• Weight: 485 lb (220 kg)

Shipping Information:

• Package Dimensions: 6 ft × 3 ft × 5.5 ft (72 × 36 × 66 in / 1.83 × 0.91 × 1.98 m)

• Total Weight: 772 lb (350 kg)

Recommended Inks:

• Allwin Ink UVE 1 L Bottle

---
