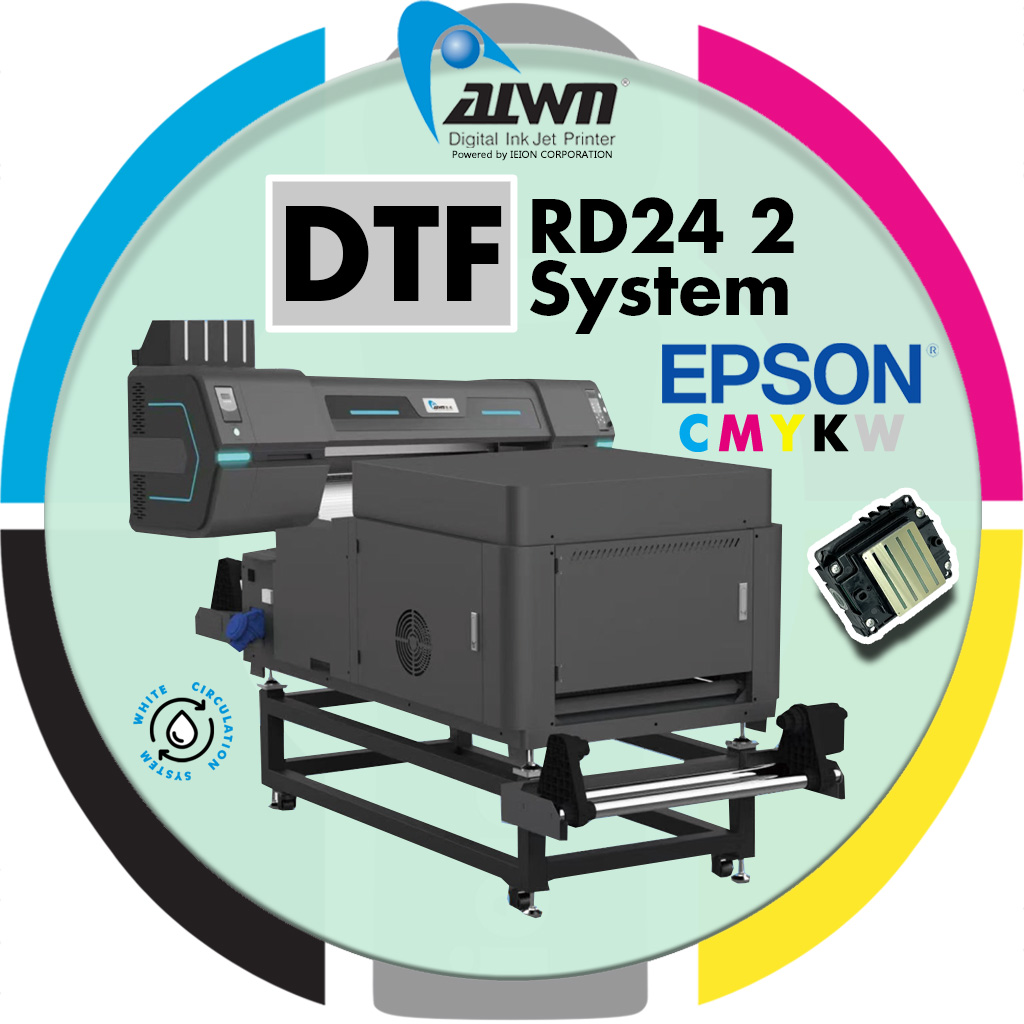

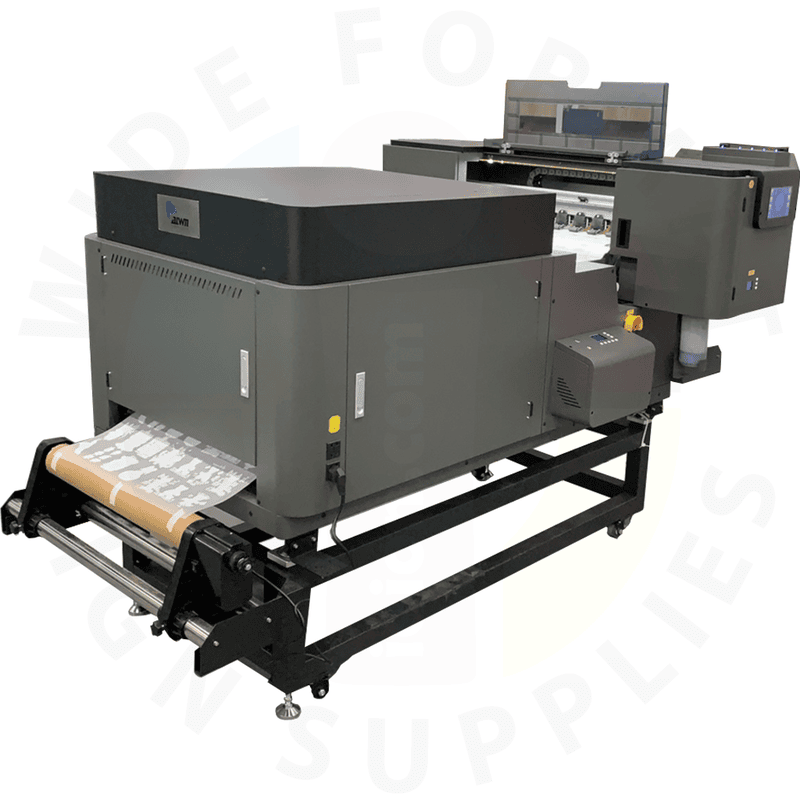

Unlock high-quality textile printing with the Allwin DTF System 24. This versatile Direct-to-Film printer delivers vibrant, high-resolution prints on fabrics, leather, and a wide range of custom merchandise. With an integrated curing unit, automatic powder feeding, and built-in smoke removal, it’s designed for professional efficiency and consistent results.
$11,486.00 $13,494.00
Available Offer
Product Details

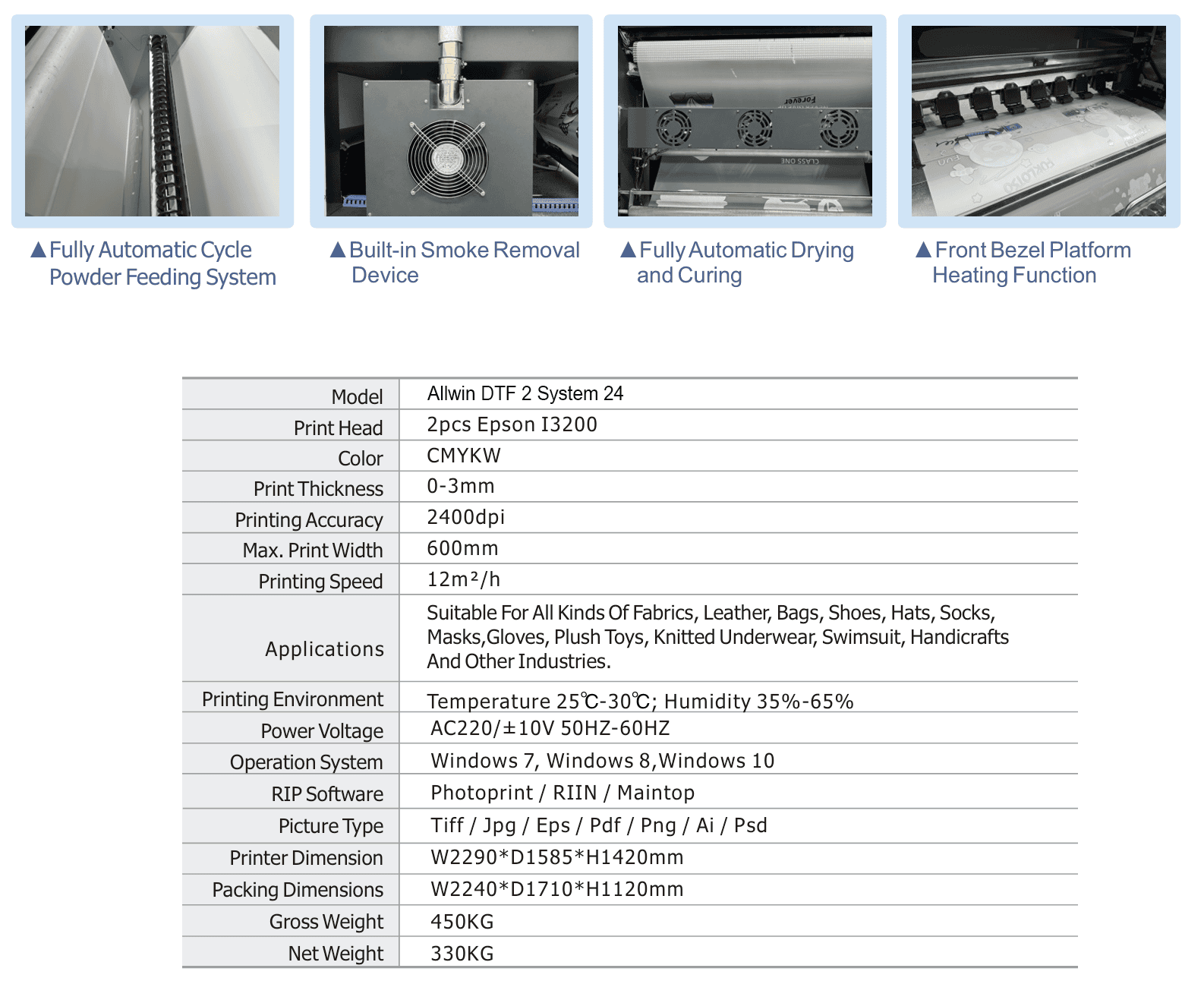

Specifications
- Model: Allwin DTF System 24
- Color Configuration: CMYKW
- Max Print Width: 600 mm (23.62 in / 1.97 ft)
- Print Thickness: 0–3 mm (0–0.12 in / 0–0.01 ft)
- Resolution: Up to 2400 dpi
- Speed: 12 m²/h
- Supported OS: Windows 7, 8, 10
- Supported File Formats: TIFF, JPG, EPS, PDF, PNG, AI, PSD
- RIP Software Compatibility: Photoprint, RIIN, Maintop
- Operating Temperature: 25°C – 30°C (77°F – 86°F)
- Humidity: 35% – 65%
- Power Supply: AC 220V ±10%, 50Hz–60Hz
Highlights
- Integrated oven and curing unit for efficient post-print processing
- Fully automatic powder feeding system for consistent adhesion
- Built-in smoke removal device for a clean working environment
- Front bezel platform heating to improve print curing
- Automatic drying and curing system reduces manual intervention
- Supports high-resolution printing up to 2400 dpi
- Fast production speed of 12 m²/h
- Versatile media compatibility (fabrics, leather, and more)
Applications
- Apparel: T-shirts, hoodies, and other garments
- Accessories: Bags, hats, shoes
- Home decor: Cushions, curtains
- Promotional products: Masks, gloves, plush toys
- Sportswear: Socks, swimsuits, knitted underwear
- Custom merchandise and handicrafts

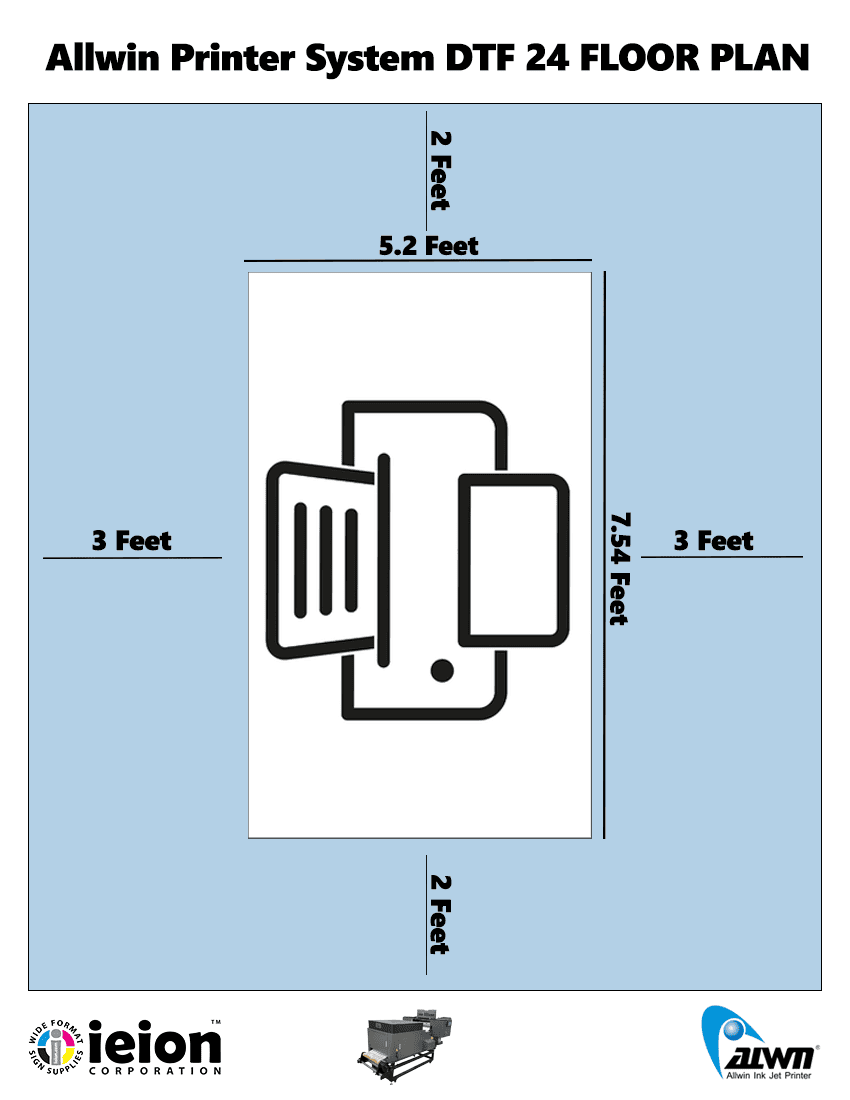

Printer Size & Weight
- Dimensions (L × W × H): 2290 mm × 1585 mm × 1420 mm
- 90.16 in × 62.4 in × 55.91 in
- 7.54 ft × 5.2 ft × 4.66 ft
- Weight: 330 kg (728 lb)
Shipping Information
- Package Dimensions (W × D × H): 2240 mm × 1710 mm × 1120 mm
- 88.19 in × 67.32 in × 44.09 in
- 7.35 ft × 5.61 ft × 3.67 ft
- Shipping Weight: 450 kg (992 lb)
Recommended Inks
Specifications
Equipment Type
- Equipment Type:Printers
Printers Specifications
- Printheads:Epson i3200
- Base System:Roll to Roll
- Main feature:Print
- Printing Size:30 in
- Rip Software:SAI Flexi
- Computer Included:No
- Max Media Thickness:1mm
- Max Media Weight:110 lbs
- Ink System:Open
- Power Supply:220v
- Power Consumption:3kVA
- Interface:Ethernet
- Vacuum Table Zones:1
- Adjustable Layout Pins:No
- Waveform control:Yes
- Variable Dot Technology:Yes
- Fine Difussion:Yes
- Ink Circulation:Yes
- Nozzle Recovery System:Yes
- Printer Ink Base:DTF
