Specifications

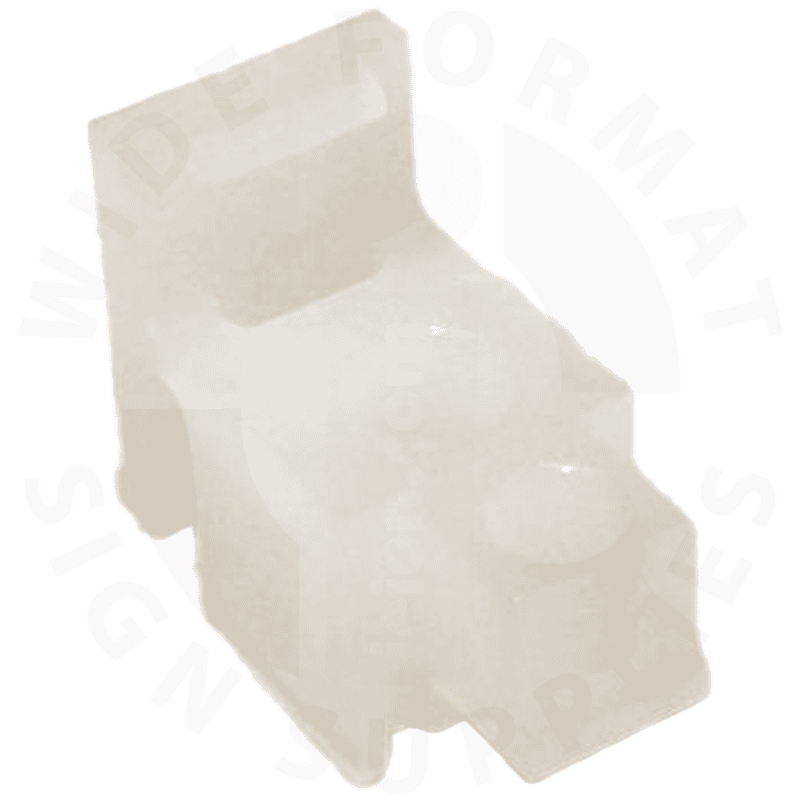

• Name: Adapter — JF Suck Nozzle (Upper)

• Printer Compatibility: Mimaki JF series (e.g., JF-1610 / JF-1631); confirm by serial-range parts list/exploded view

• Location: Maintenance unit / capping & pump assembly

• Function: Seals and routes vacuum from pump to purge nozzle; aligns nozzle body to cap area

• Material: Chemical-resistant molded plastic (UV/solvent resistant); O-ring seat (revision dependent)

• Includes:Upper adapter only (nozzle body, O-rings, screws, tubes sold separately)

• Packaging: Service packed, single piece

Highlights

• Leak-Free Vacuum Path: Maintains proper suction for efficient purges and head cleaning.

• OEM Geometry: Correct fit and alignment reduce installation time and rework.

• Consistent Maintenance: Helps prevent repeated cleans, banding, and nozzle drop-outs.

• Durable Build: Resistant to UV inks and common cleaning fluids.

• Downtime Reducer: Quick swap restores stable start-ups and overnight sealing.

Use & Details

• When to Replace: Weak suction/pump errors, frequent recovery cleans, air leaks around the purge area, ink drips at cap, or visible cracks/warping on the adapter.

• Installation Notes:

  • Power off; park/lock the carriage and observe ink-handling safety.

  • Remove old adapter; inspect/replace O-rings; seat tubing fully—no kinks.

  • Observe correct orientation (upper vs. lower piece).

  • After assembly, verify cap height/level per service specs; run a purge and nozzle check.

• Post-Install Checks: Hold-vacuum test, overnight seal check, and a fresh nozzle pattern before production.

• Compatibility Checklist: JF model → serial-range diagram → “upper” vs. lower adapter → required O-ring/tube size → fasteners.

Important: Incorrect cap height or vacuum leaks can damage the printhead and waste ink. Professional installation/calibration is recommended. Electronics/consumable service parts are typically non-returnable—confirm your exact model and diagram before ordering.
