🔧 Print Head Configuration Options
This printer supports a scalable setup with up to 16 Konica 1024i print heads, arranged in 4 rows (up to 4 heads per row):
Option A: 4 Print Heads
Option B: 5 Print Heads
Option C: 6 Print Heads
Option D: 8 Print Heads
Option E: 10 Print Heads
Option F: 12 Print Heads
Option G: 14 Print Heads
Option H: 16 Print Heads
⚠️ Note:Print heads are sold separately. Please view the recommended products below.
🔹 Highlights

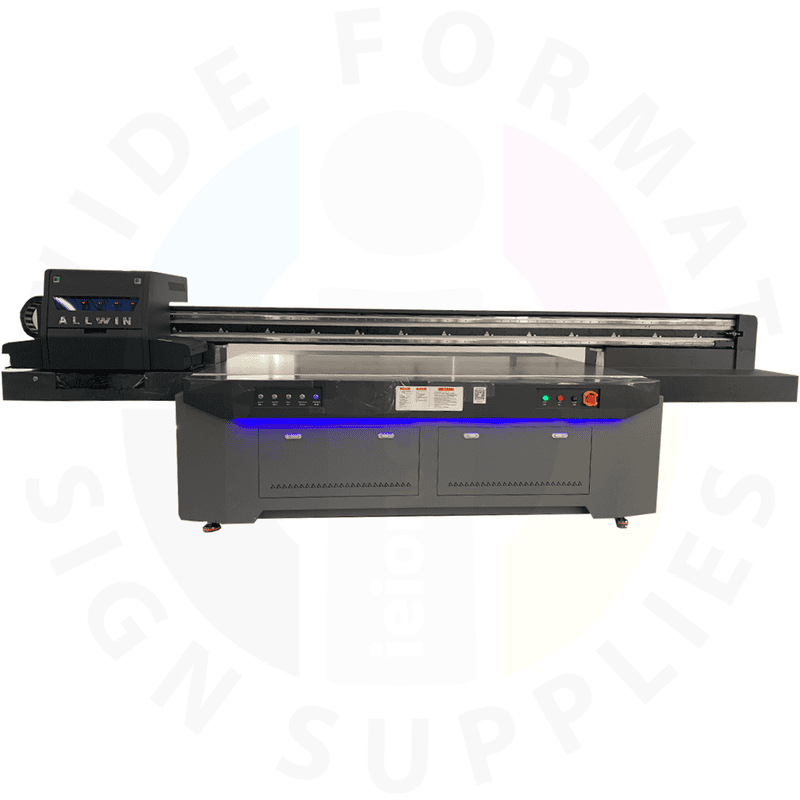

Flatbed UV LED printing for rigid media up to 6x10 ft.
Four-row head layout for ultra-fast production.
Open bulk ink system with 1.5L tanks per color – no chips required.
Konica 1024i print heads offer durability and precision.
Color configuration: CMYK + Optional White.
SAI FlexiPrint RIP software included for advanced color control.
Scalable print head setup – start with 4 and expand up to 16.
Ideal for wide-format applications in acrylic, wood, glass, PVC board, foam board, and more.

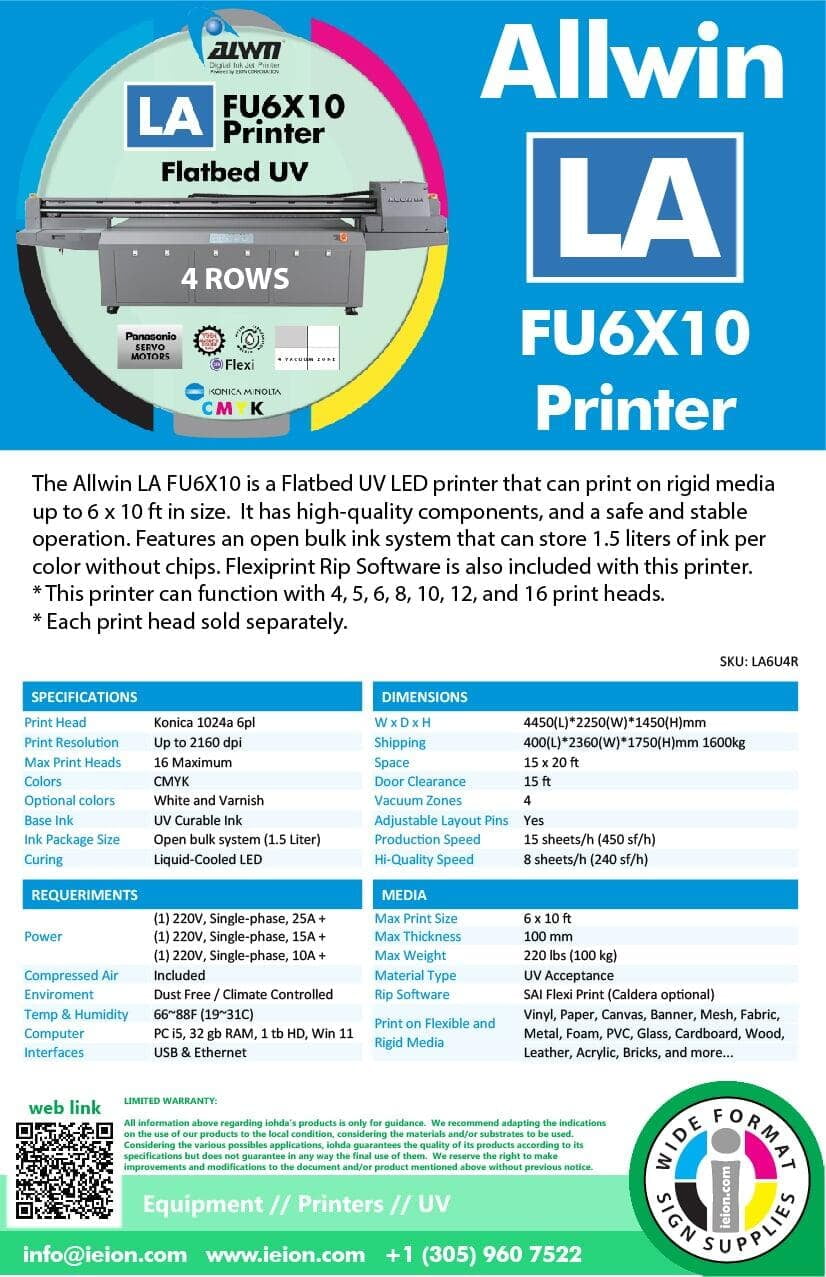

📋 Technical Specifications
Feature | Description |
---|
Model | Allwin Printer UV LA 6x10 Two XL |
Print Technology | Flatbed UV LED |
Print Area | Up to 6 x 10 ft (Rigid Media) |
Print Heads | Supports 4 to 16 Konica 1024i (not included) |
Head Layout | 4 Rows – Up to 4 heads per row |
Ink System | Open bulk system (chip-free), 1.5L per color |
Ink Colors | CMYK + Optional White |
Software Included | SAI FlexiPrint RIP |
Component Quality | High-quality components throughout |
Power Supply | 220V / 5kVA |
Power Protection | Voltage stabilizer recommended |
