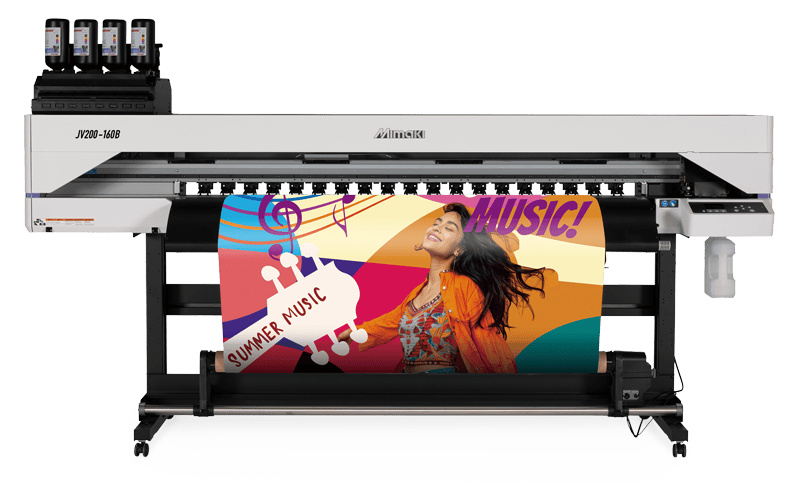

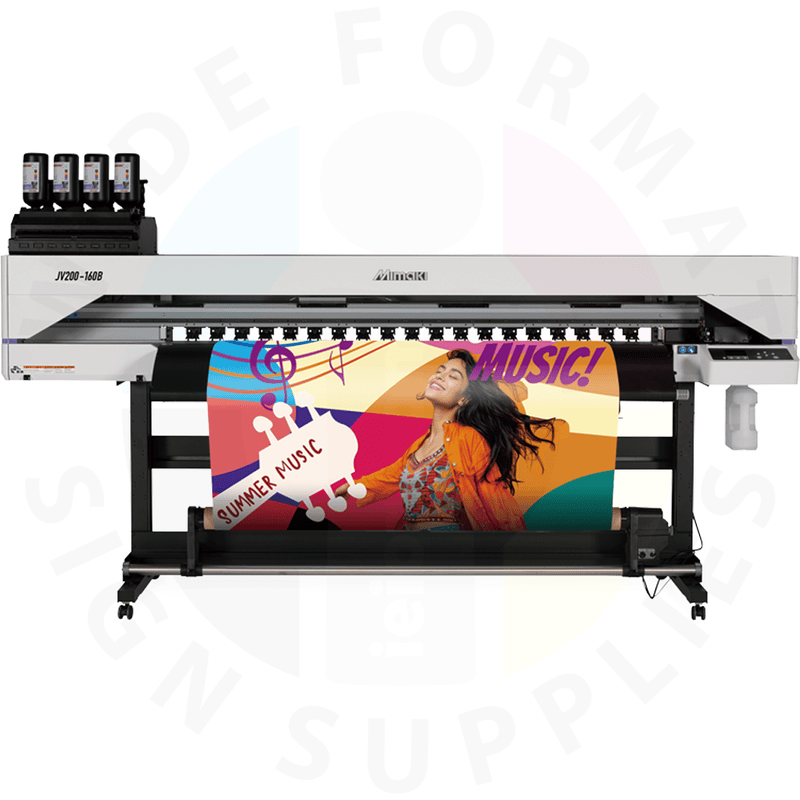

Mimaki Printer JV200-160B

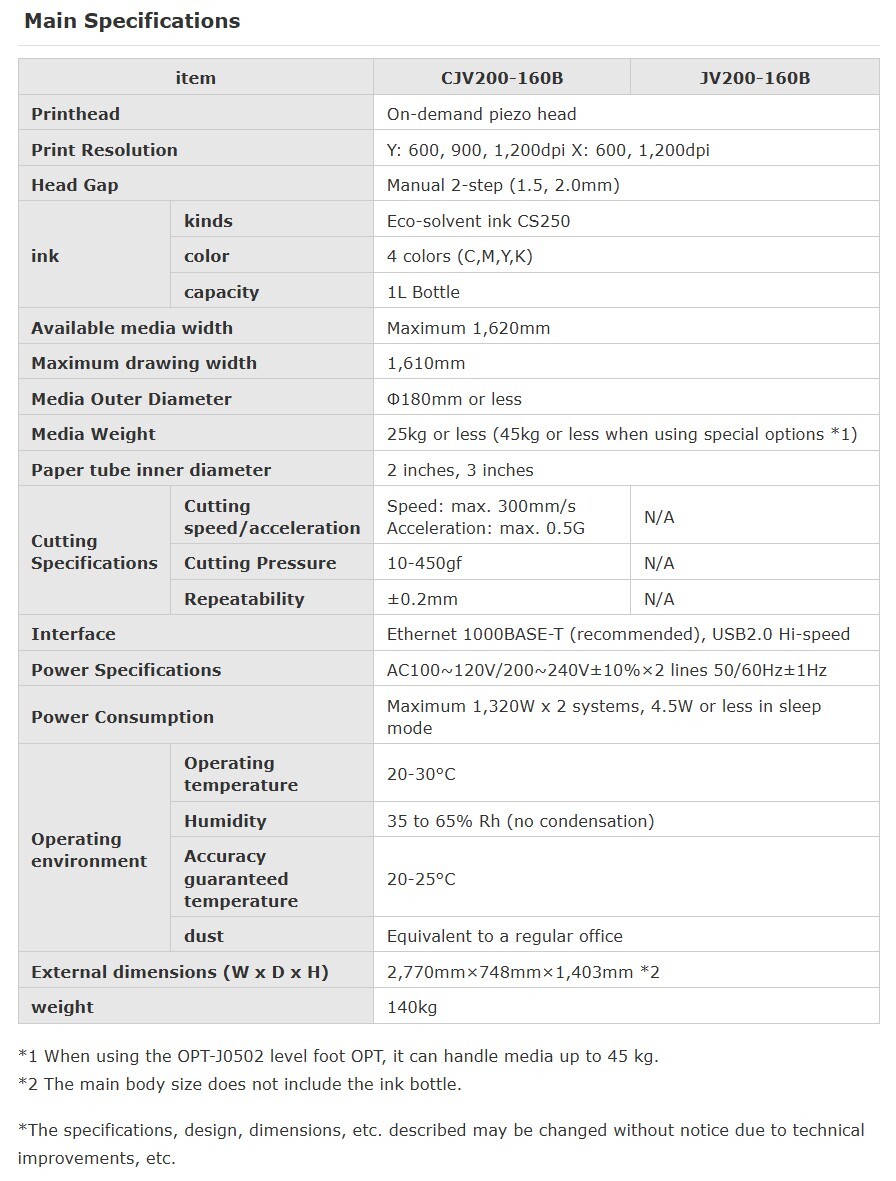

Specifications

• Print Head: On-demand piezo print head (single)

• Print Resolution: 600 / 900 / 1200 dpi

• Maximum Print Width: 1,610 mm (63.4 in)

• Maximum Media Width: 1,620 mm (63.8 in)

• Maximum Media Thickness: 1.0 mm or less

• Maximum Roll Diameter: 180 mm or less

• Maximum Roll Weight: 25 kg (55.1 lb) — optional support up to 45 kg (99.2 lb)

• Interface: Ethernet 1000 BASE-T / USB 2.0

• Power Supply: Single-phase AC 100–120 V / 200–240 V ×2, 50/60 Hz

• Power Consumption: Max 1,320 W ×2; Sleep mode approx. 4.5 W

• Print Speed (4-color mode): Up to 17 m²/h (183 sq ft/h)

Highlights

• High-resolution, fast eco-solvent printer with wide 64-inch format

• Advanced print technology for smooth gradations and vivid colors

• Durable, cost-efficient operation with bulk ink system

• Low-odor, environmentally friendly inks

• Automatic nozzle check and recovery system

• Easy maintenance and user-friendly control layout

• Ideal for continuous production with consistent print quality

• Compact footprint suitable for mid to high production environments

Applications

• Indoor and outdoor signage

• Vehicle wraps and fleet graphics

• Retail and point-of-sale displays

• Trade show and exhibition graphics

• Wallpaper and wall décor

• Window graphics and promotional banners

• General large-format printing

Printer Size and Weight

• Size: 2,770 × 748 × 1,403 mm

  • Inches: 109.1 × 29.4 × 55.2 in

  • Feet: 9.1 × 2.45 × 4.6 ft

• Weight: 140 kg (308.6 lb)

Shipping Information

• Crated Weight: Approx. 200–220 kg (441–485 lb)

• Packed Dimensions: ~2,900 × 950 × 1,550 mm (~114.2 × 37.4 × 61.0 in)

• Requires pallet or forklift for transport

• Recommended floor space: Minimum 3,500 × 2,000 mm (137.8 × 78.7 in)

• Space around printer required for operation and maintenance

Recommended Inks

• Mimaki Ink ECO CS250 1 L Bottle

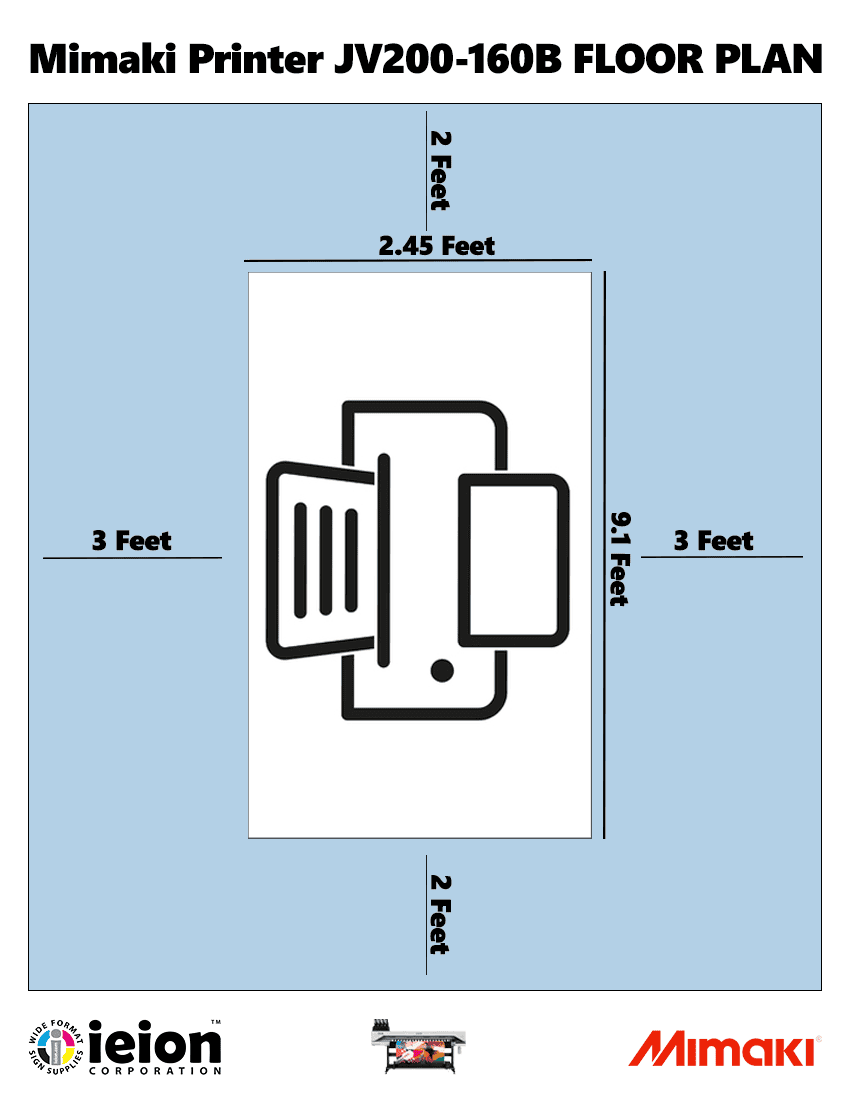

Floor Plan
