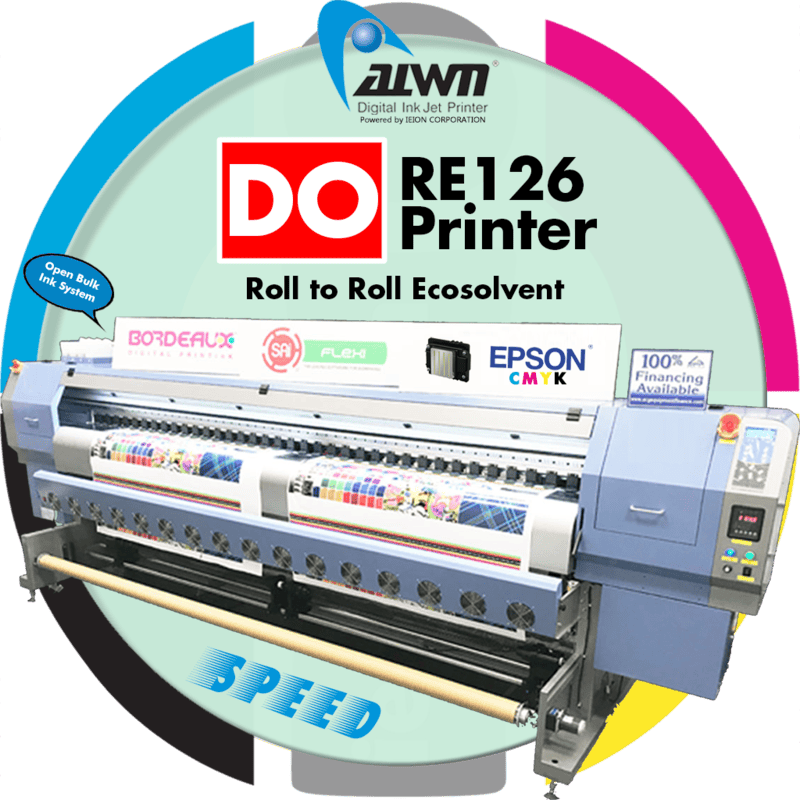

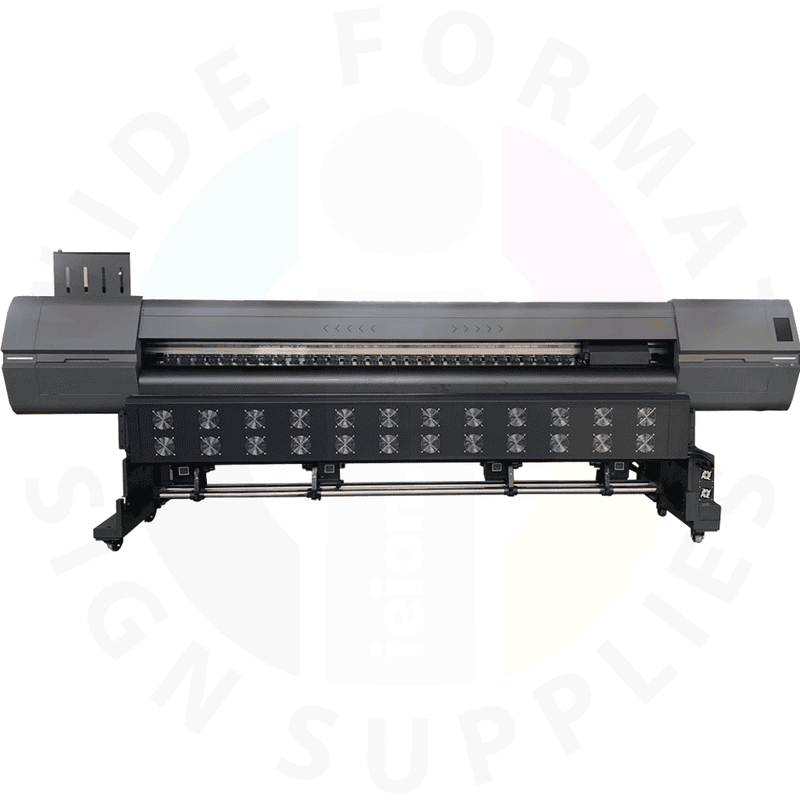

The Allwin ECO/SUB RE 126 is a professional 126-inch wide-format roll-to-roll printer designed for high-volume production on flexible materials. Built for precision and reliability, it features an open bulk ink system with 1.5 L per color and supports eco-solvent or sublimation inks. The printer allows multiple media configurations, comes bundled with SAI FlexiPrint RIP software, and includes safety features such as anti-collision head protectors. Print heads are not included.
Available Offer
Model: Allwin Printer ECO/SUB RE 126
Print Width: Up to 126 inches
Media Loading Configurations:
Two rolls of 54" or 36"
One roll of 36" and one roll of 63"
One large-format roll up to 126"
Print Heads: Supports up to 4 Epson i3200 (not included)
Ink Compatibility: Eco-solvent or Sublimation
Ink System: Open bulk system (chip-free), 1.5 L per color
Drying System: 5 levels – pre-heaters, plate heaters, post-heaters, front fans, holofans
Safety Features: Anti-collision head protectors on both sides of the carriage
Software Included: SAI FlexiPrint RIP
Tables Included: Two additional support tables
Warranty: 1 year on non-consumable parts and technical support from installation date
Scalability: Ready to start with 1 head and scale up to 4
Color Profiles: Custom ICC profiles for original Allwin inks
Ink Durability: Up to 2 years outdoor durability
Ink Performance: Excellent dot gain and color accuracy
Component Quality: High-quality components throughout
Power Supply: 220V / 5kVA
Power Protection: Voltage stabilizer recommended
Flexible 126-inch print width for large-format projects
Open bulk ink system for maximum flexibility and cost savings
Epson i3200 print heads (not included) provide high quality and speed
Includes SAI FlexiPrint RIP software for professional workflow
Supports multiple media roll configurations simultaneously
Anti-collision head protectors on both sides of the carriage
Custom ICC profiles ensure accurate, vibrant colors
1-year warranty and technical support included
Built with high-quality components for long-term reliability
Ready to start with 1 print head and scale to 4
Large-format signage and banners
Roll-to-roll textile and fabric printing
Promotional products and decals
Soft signage, flags, and wallpaper printing
Indoor and outdoor advertising graphics
High-volume production projects requiring precision and color accuracy

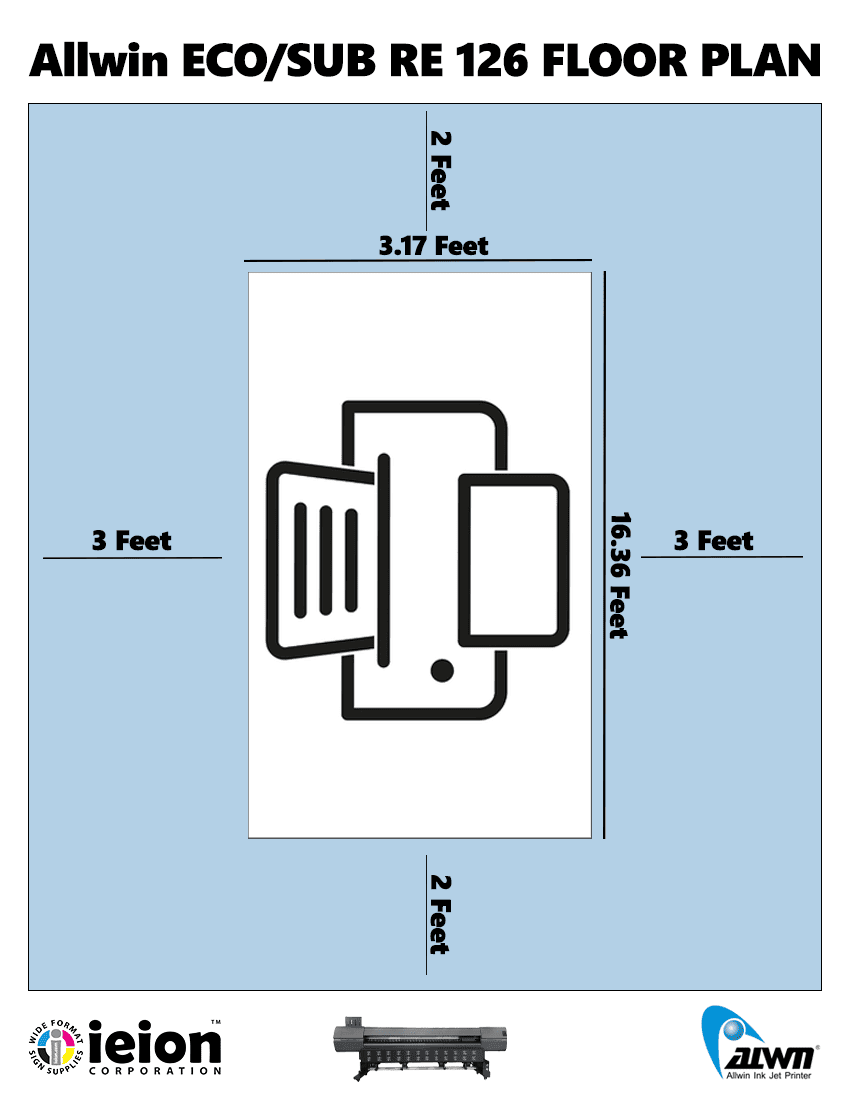

Length: 16.36 ft (4988 mm / 196.3 in / 4.99 m)
Width: 3.17 ft (968 mm / 38.1 in / 0.97 m)
Height: 6.14 ft (1870 mm / 73.6 in / 1.87 m)
Weight: 1,320 lb (600 kg)
Package Dimensions: 18.37 ft × 2.49 ft × 4.20 ft (5600 × 760 × 1280 mm / 5.6 × 0.76 × 1.28 m)
Total Weight: 1,430 lb (650 kg)
· Ecosolvent:
Allwin ECO 1 L Bottle
Bordeaux FUZE MX 1 L Bottle
Bordeaux FUZE MS33 1 L Bottle· Sublimation:
Allwin SUB 1 L Bottle
Bordeaux EDEN TX2 1 L Bottle
Equipment Type
- Equipment Type:Printers
Printers Specifications
- Printheads:Epson i3200
- Base System:Roll to Roll
- Main feature:Print
- Printing Size:126 in
- Rip Software:SAI Flexi
- Computer Included:No
- Max Media Thickness:1mm
- Max Media Weight:220 lbs
- Ink System:Open
- Power Supply:220v
- Power Consumption:5kVA
- Interface:Ethernet
- Vacuum Table Zones:1
- Adjustable Layout Pins:No
- Waveform control:Yes
- Variable Dot Technology:Yes
- Fine Difussion:Yes
- Ink Circulation:No
- Nozzle Recovery System:Yes
- Printer Ink Base:Solvent
