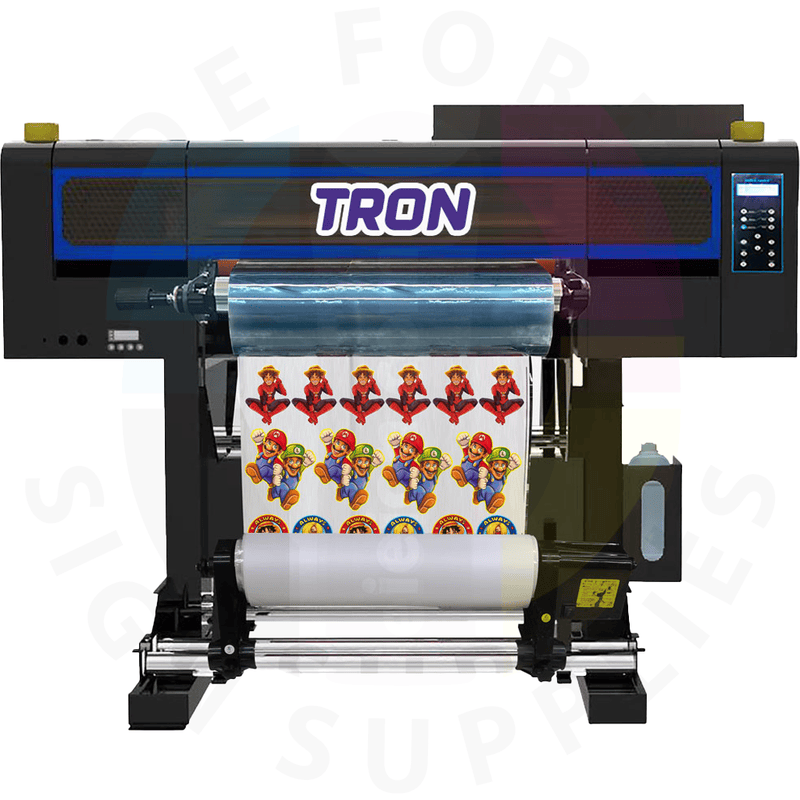

Tron System UV DTF 24

Specifications

• Model name: Tron System UV DTF 24

• Print heads: 3 Epson i1600 printheads.

• Process: UV-curable Direct-to-Film (A-film print → B-film laminate → transfer)

• Head configuration: Single head (CMYK + White; optional Clear/Gloss depending on setup)

• Working width: Optimized for 24-inch media

• Media: Crystal-label UV DTF A/B films (roll)

• Curing: Integrated UV-LED curing

• Handling: Roll-to-roll feed with tensioned take-up

• Use environment: Standard print room with ventilation

Highlights

• Enhanced accuracy — Stable feeding and calibrated layering produce sharp edges, clean small text, and smooth gradients.

• Single-head mode — Lower ownership cost, easier training, and uniform alignment across jobs.

• Optimal width design — 24-inch format maximizes AB-film utilization and reduces waste for labels, decals, and badges.

• Rich color + opaque white — Vivid CMYKWV over a strong white underbase for high contrast on dark or transparent substrates.

• Compact, production-ready — Integrated UV curing and roll handling for continuous runs in small spaces.

Uses and Details

• Applications: Crystal-label decals for bottles, mugs, tumblers, phone cases, laptops, packaging, acrylic signage, coated wood, metals, and most plastics.

• Workflow:

  1. Print artwork (color over white) onto A film.

  2. Cold-laminate with B film.

  3. Peel, position, burnish onto the target surface, then remove the carrier.

• Surface prep: Clean with isopropyl alcohol; ensure dry and dust-free for best adhesion.

• Aftercare: Allow full cure before heavy handling; for drinkware, hand-wash only. Not intended for laundered fabrics.

• Media care: Store AB films cool and dry; avoid bending, heat, or direct sunlight.

• Safety: Operate with adequate ventilation and follow UV-ink handling guidelines.
