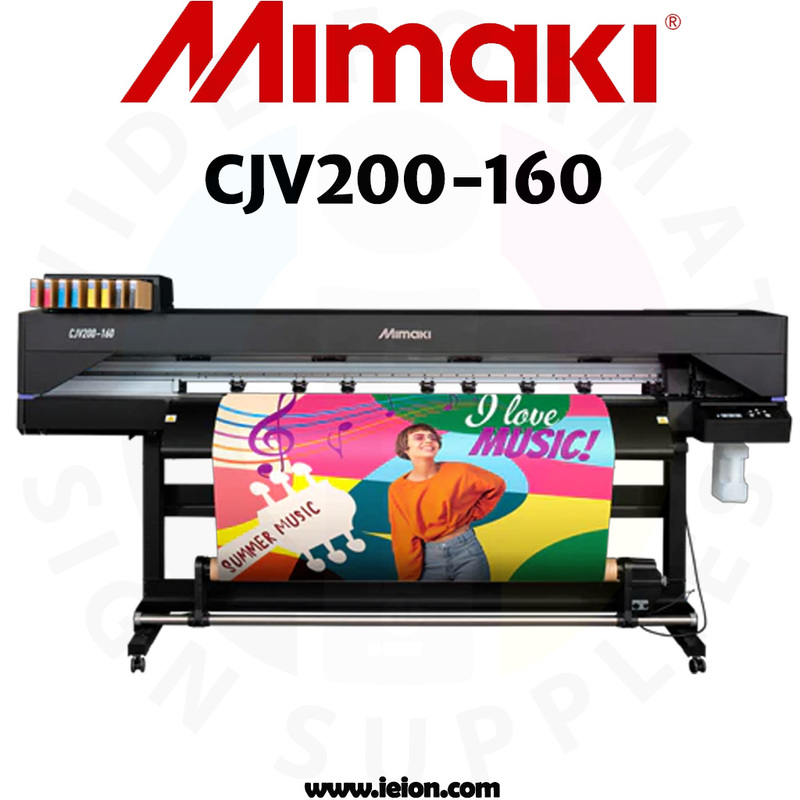

Mimaki Printer & Cutter ECO CJV200-160

Specifications

• Printheads: 2 × On-demand piezo (staggered)

• Print Resolution: 300 × 300 dpi to 1,440 × 1,440 dpi

• Ink Types / Colors: Eco-Solvent SS21 or SS21 Plus (CMYK, Light Cyan, Light Magenta)

• Ink Size / Circulation: 440 ml cartridges; optional bulk ink system

• Maximum Print Width: 1,610 mm (63.4″)

• Maximum Media Width: 1,620 mm (63.8″)

• Media Roll Diameter: ≤ 150 mm

• Media Roll Weight: ≤ 40 kg

• Cutting: Integrated contour cutting with adjustable force; repeatability ±0.2 mm

• Interface: Ethernet, USB 2.0

• Power: AC100–120 V / 200–240 V ±10%, 50/60 Hz

• Power Consumption: Max 280 W (standby 2 W)

• Operating Environment: 20–30 °C, 35–65% RH

• Certifications: CE, ETL, FCC Class A

Highlights

• Integrated printer and cutter for efficient production of signage and decals

• High-resolution printing up to 1,440 dpi for sharp, vibrant graphics

• Eco-solvent inks deliver long-lasting outdoor durability

• Supports media up to 1,620 mm wide and contour cutting in one pass

• User-friendly control panel with automated media feed and tension control

• Compact design ideal for small-to-medium production environments

Applications

• Signage and banner production

• Vehicle graphics and wraps

• Point-of-purchase displays

• Stickers, labels, and decals

• Custom promotional graphics

Printer Weight and Size

• Weight: 145 kg (~320 lb)

• Dimensions (W × D × H): 2,770 × 748 × 1,370 mm → ~9.09 ft × 2.45 ft × 4.49 ft

• Recommended Clearance: ~10 ft width × ~4 ft depth for media handling and operator access

Shipping Information

• Packaged Weight: 145 kg (~320 lb)

• Packaged Dimensions: ~10 ft × 3 ft × 5 ft

Recommended Inks

• Mimaki Ink ECO CS250 1 L Bottle

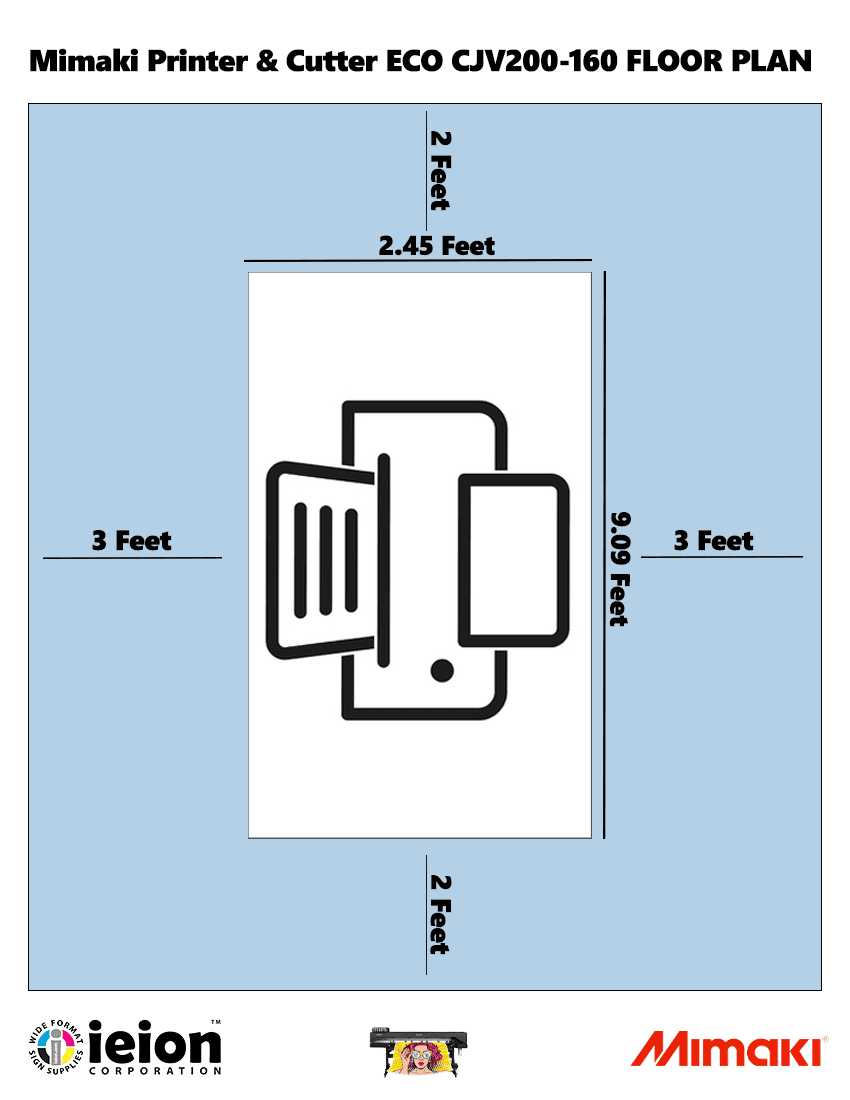

Floor Plan
