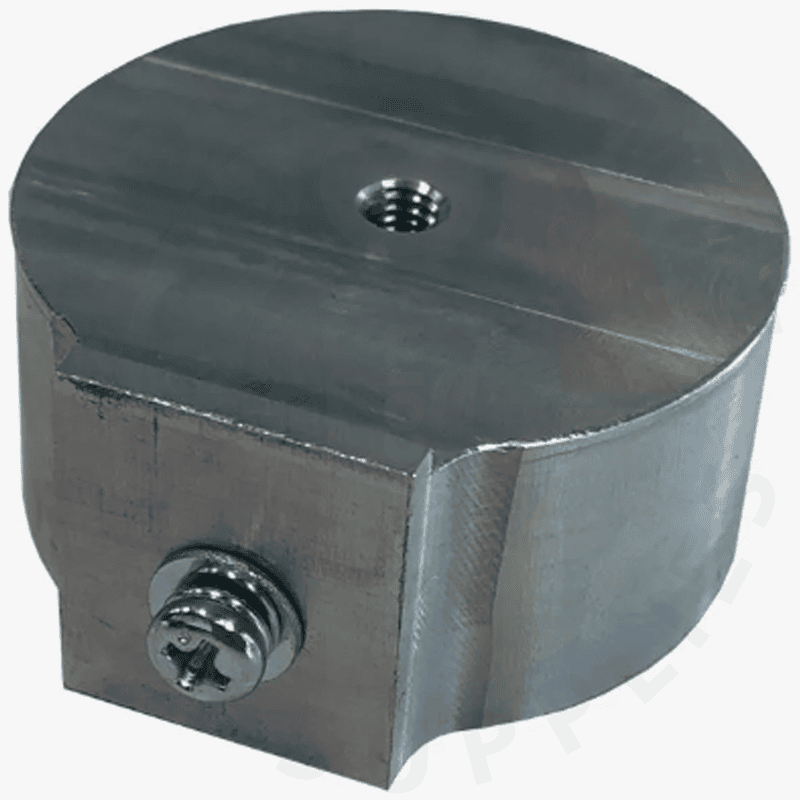

The Mimaki Guide Cap is the OEM metal end-cap that supports the take-up/media bar on JV33/CJV30 platforms. It replaces the older plastic version for better durability and alignment.
Available Offer
Product Details
Specifications
Part number: M400564
Name: Guide Cap (media/take-up bar end cap)
Material: Metal
Compatibility: CJV30-60/100/130/160; JV33-130/160/260; JV34-260; TS3-1600; UJV-160; TPC-1000
Position: Ends of the media/take-up bar
Condition: Genuine OEM, new
Highlights Stronger, long-lasting build compared to older plastic caps
Precise OEM fit for stable media tracking
Simple drop-in replacement —no modifications required
Uses and Details Function: Supports and locates the media/take-up bar so rolls wind evenly and resist skew.
When to replace: Cracked/broken cap, bar wobble, uneven winding, or visible wear at bar ends.
Installation tips: Power off the printer, remove the media bar, replace caps (ideally as a pair), and re-check flange spacing before production.
