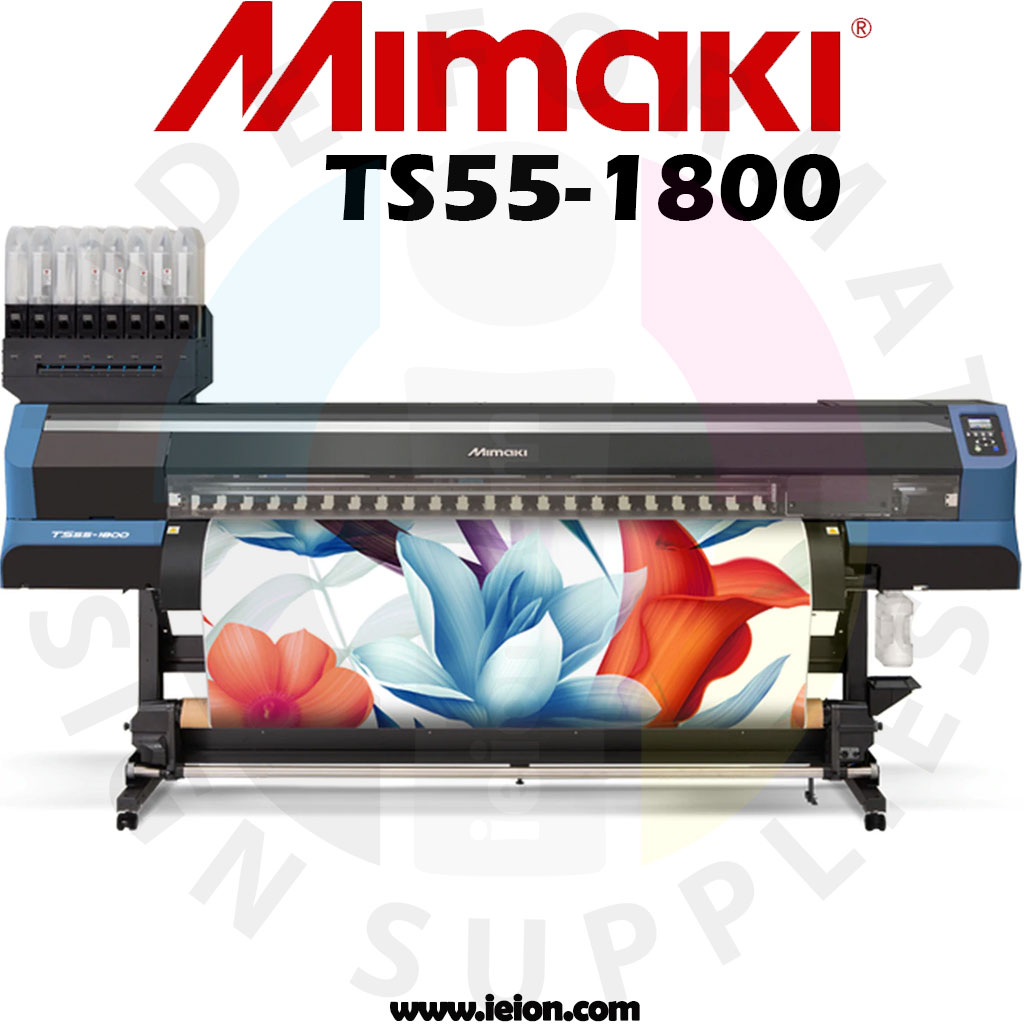

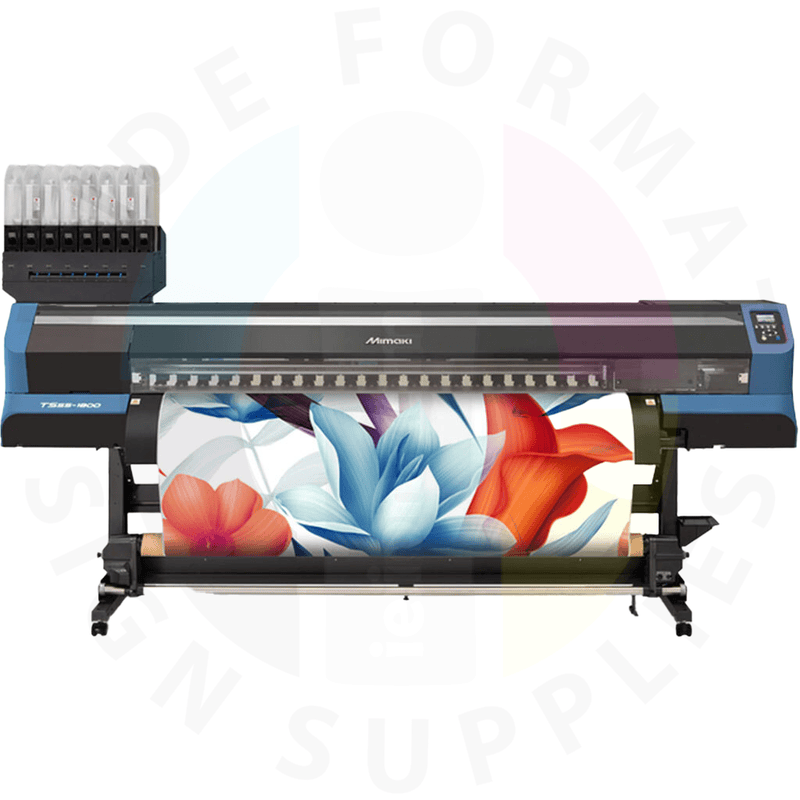

Mimaki Printer TS55-1800-SA-STD

Specifications

• Print Technology: Dye-sublimation transfer

• Printhead: Four in-line staggered layout

• Print Resolutions: 480 / 600 / 1,200 dpi

• Max Print Width: 1,940 mm (76.4 in)

• Max Media Width: 1,950 mm (76.8 in)

• Maximum Media Thickness: Up to 1 mm (0.04 in)

• Max Roll Weight: 45 kg (99 lb)

• Ink Slots: 8

• Ink Type / Colors: Sb610 dye-sublimation (CMYK, Light Cyan, Light Magenta, Light Black, Fluorescent Pink, Fluorescent Yellow)

• Ink Capacity: 2 L packs (optional 10 kg bulk supply)

• Interface: Ethernet 1000BASE-T & USB 2.0

• Power Supply: Single-phase AC 100–120 V or 200–240 V

• Power Consumption: ≤1.44 kW (100 V) / ≤1.92 kW (200 V)

• Operating Environment: 20–30°C (68–86°F), 35–65% RH (non-condensing)

• Certifications: VCCI Class A, FCC Class A, CE, CB Report, Energy Star, RCM, EAC

Highlights

• Extremely high production speed: up to 1,453 ft²/hr (135 m²/h) in 4-color mode

• MAPS (Mimaki Advanced Pass System) reduces banding for smooth prints

• Optional Mini Jumbo Roll Unit for very long media rolls

• Optional 10 kg Bulk Ink Supply Unit reduces cost per print

• Variable dot technology for high-fidelity prints and efficient ink use

• Stable feeding system for heavy rolls and large-format printing

• Built for continuous, 24/7 high-volume textile production

Applications

• Apparel and sportswear printing

• Fashion and decorative fabrics

• Curtains, tapestries, and upholstery

• Flags, banners, and soft signage

• High-volume roll-to-roll textile production

• On-demand dye-sublimation transfers

Printer Weight & Size

• Dimensions (W × D × H): 3,240 × 713 × 1,857 mm

• Dimensions (Inches): 127.5″ × 28.0″ × 73.1″

• Dimensions (Feet): 10.63 ft × 2.33 ft × 6.09 ft

• Weight: 202 kg / 445 lb

Shipping Information

• Weight: Approximately 600–700 lb

• Size: Approximately 12–13 ft (W) × 3–4 ft (D) × 6–7 ft (H)

Recommended Inks

• Mimaki Ink SUB SB610 1 L Bottle

• Mimaki SB610 2 Liter Bags W/C

• Mimaki SB610 10 Liter Bottle W/C

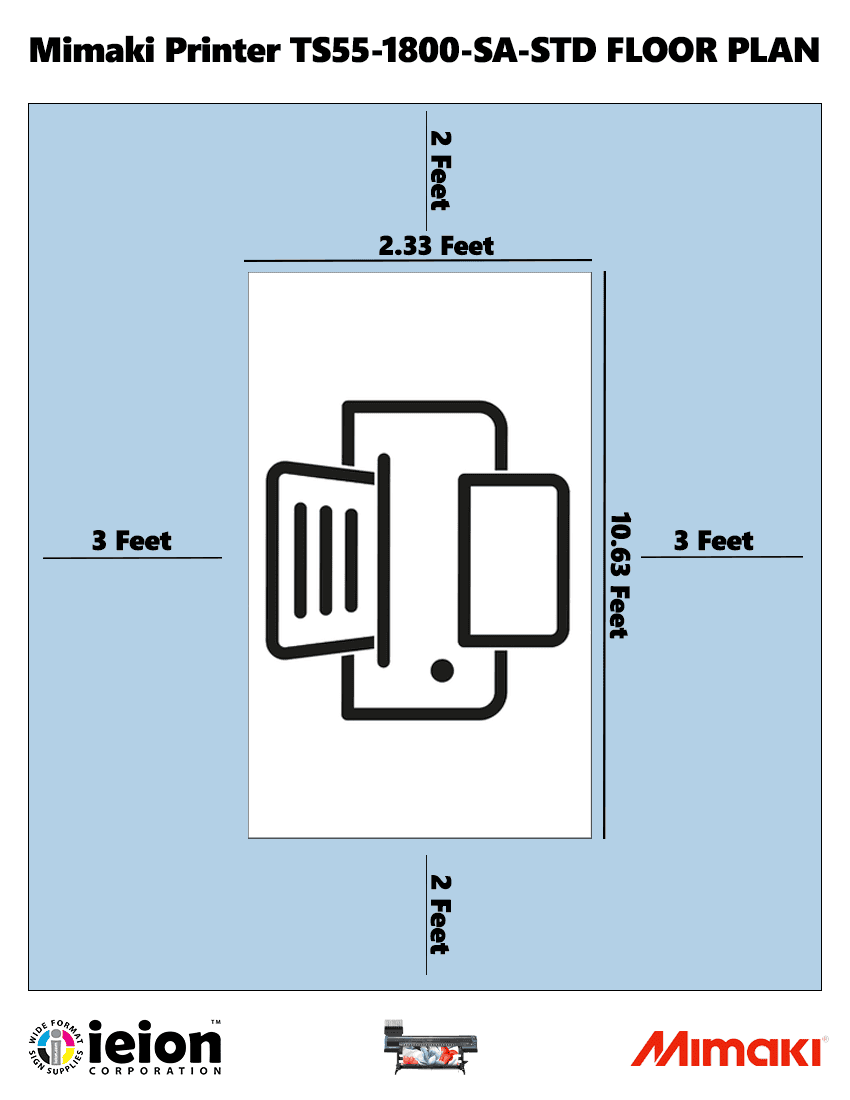

Floor Plan
