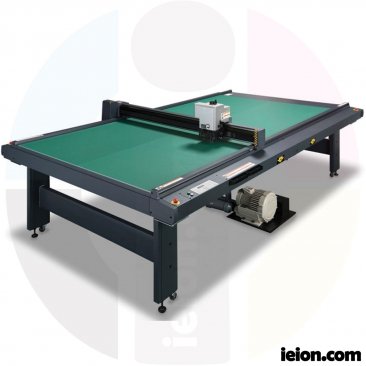

Mimaki CF22-1225 RC-S flatbed cutting plotters

Non-returnable

The CF22-1225 cutting plotter is based on the proven Mimaki CF2 platform, providing reliable cutting performance since 2005. The new CF22-1225 features a work area that can accommodate oversized media and allows a full 4-foot by 8-foot maximum cut size so print service providers can move materials directly from a standard flatbed printer. It is compatible with RasterLink6 Plus software, available for Mimaki printer models, that includes an ID Cut function to make printing and cutting easier and faster.


Choose Quantity
$59,087.37 $67,500.00
+ Add to Cart+ Adding to cart
Mimaki CF22-1225 RC-S flatbed cutting plotters
Mimaki CF22-1225 RC-S flatbed cutting plotters
Mimaki CF22-1225 RC-S flatbed cutting plotters
Product Details


CF22-1225 model features:
  • 4-foot by 8-foot cutting area
  • Supports ID Cut function in RasterLink6 Plus software
  • Ideal companion to JFX200-2513 UV-LED flatbed printer
  • Multiple cutting head and tool holder configurations
  • Swivel knife, tangential knife, reciprocating knife, creasing wheel and pen options available
  • Cut a variety of materials up to 20 mm thick


Highlights of the Mimaki CF22-1225

Larger work area.
The CF22-1225 cutting plotter is based on the proven Mimaki CF2 platform, providing reliable cutting performance since 2005. The new CF22-1225 features a work area that can accommodate oversized media and allows a full 4-foot by 8-foot maximum cut size so print service providers can move materials directly from a standard flatbed printer.

Improved workflow efficiency with ID Cut function in RasterLink6 plus software.
The CF22-1225 cutting plotter is compatible with RasterLink6 Plus software, available for Mimaki printer models. This new, feature-rich version of the widely used Mimaki RasterLink RIP software includes an ID Cut function to make printing and cutting easier and faster. Along with registration marks, RasterLink6 plus software will include a bar code on output from a Mimaki printer driven by this version. The barcode, read by the crop mark sensor on the CF22-1225 cutting plotter, contains cutting and rotation information enabling the CF22-1225 cutting plotter to automate the cutting process. This function is particularly useful when running nested print-cut jobs, as the cutting plotter continuously reads the data for both single and ganged jobs.

Multiple cutting head and tool holder configurations.
Users can choose from several cutting heads that offer a range of tool holders to hold a variety of cutting, creasing and drawing tools, depending on the application. Swivel knife, tangential knife, reciprocating knife, creasing wheel and pen options are all available with a wide range of blade and creasing options. A broad variety of materials can be cut including corrugate, styrene and foam up to 20mm thick for packaging and POP applications; rubber, resin materials and plastics for industrial applications; and more.

Multiple connectivity options.
In addition to the legacy RS232C connection, the CF22-1225 cutting plotter also supports USB 2.0 and Ethernet connections.

Redesigned control panel.
The CF22-1225 cutting plotter features an updated user-friendly control panel with shortcut keys for the most commonly used functions and an easy to read LCD display.

Total solution for on-demand production.
The CF22-1225 cutting plotter is an ideal match with the JFX200-2513 UV-LED flatbed printer for on-demand production of seasonal POP displays or exhibit components. It is a complete system with the addition of ArtiosCAD Designer Solution software for creating custom packaging or prototypes.



What you can do with the Mimaki CF22-1225

Examples of applications

  • Package prototypes
  • Short-run packaging
  • Custom original goods
  • Samples
  • and more…

Technical overview of the Mimaki CF22-1225

Item
Specification
Effective plotting area
98.4 x 48.0 in (2500×1220 mm)
Max. Media size to be set
102.4 x 53.5 in (2600×1360 mm)
Maximum plotting speed
55 cm/sec
Static accuracy
Repetition accuracy: ±0.1mm
Distance accuracy:     ±0.1mm or ±0.1% of movement distance, whichever is greater
Origin reproducibility: ±0.1 mm or less
Perpendicularity:   ±0.7 / 2500 mm
Material stability
Vacuum table
Interface
USB 2.0, RS-232C, Ethernet
Safety standards
VCCI-class A, FCC-class A, UL60950-1, CB Report (EN60950), CE Marking (Machinery), RoHS, REACH
Operational
environment
Temperature: 40 – 104˚F (5-40˚C)
Humidity: 35 – 75% RH, non-condensing
Accuracy guaranteed temp.: 68 – 77˚F (20 – 25˚C)
Temperature gradient: ±50˚F (±10˚C) /h or less
Power
Single phase AC100V – 240V
Power consumption
300W
Outer dimension (W× D × H)
124.4 x 76 x 47.2 in (3160 x 1930 x 1200 mm)
Weight
507lbs. (230kg) with RC-S head

Tool Head Configurations for the Mimaki CF22-1225

Head
Type

Primary
Market

Tool
Holders

Swivel
Knife / Pen

Tangental
Knife

Tangental Knife
(High Pressure)

Creasing
Roller

Reciprocating
Knife

Optical
Sensor

T
Industrial
2
20-400g
300-1,500g



Yes
TF
Industrial
3
20-400g
300-1,500g
1,000-5,000g


Yes
RT
Industrial
3
20-400g
300-1,500g
500-1,500g

1,500g
Yes
TD
Packaging
3
20-400g
300-1,500g

1,000-5,000g

Yes
RC
Packaging
3
20-400g
500-1,500g
1,000-5,000g
1,000-5,000g
1,500g
Yes


[ID Cut] function enables easy Print & Cut combined operation

[ID Cut] function is to print the ID information to cut and media rotation angle to be able to read the job data automatically to start cut on [CF22-1225]. It saves labor of media direction check and avoids loss of media, ink and time due to data transmission or media set failure.

[e.g.] Life-sized panel making

JFX200-2513

JFX200-2513

Flatbed inkjet printer applied with UV curing ink.
Printable area is 2,500 x 1,300mm, available to print directly on 4x8 (1,220 x 2,440mm / 4x8ft) sized media, too.
The available thickness of media is up to 50mm.

 JFX200-2513 Product page

Wide range of on-demand solutions by Mimaki products combination

Combination use of Mimaki UV inkjet printer and [ArtiosCAD DS] of CAD software can offer a total solution of design of package / furniture and printing, cutting from packages till their cushioning foam material etc. Such combination use can facilitate on-demand business of sample making and tiny lot production as well, development of small lot and wide variation of products.
Moreover it realizes to save cost and lead time.

 ArtiosCAD Designer Solution Product page

ArtiosCAD Designer Solution

Thick material can be outline-cut with high accuracy.

Mark-sensor function

Mark-sensor function

With the adoption of a high performance color photo sensor, the square register marks printed on the media are detected and the position of the origin, inclination of coordinate and distance are adjusted.
This enables the operator to perform cutting at the precise position. Further, the sensor recognizes the difference of "color of media" and "color of square register marks", and enables the cutter to perform cuts accurately, while being tailored to the printed material without being influenced by the color of the media. A light pointer that is used as marker when setting the media is provided as standard device and facilitates position adjustment with square register marks.

Media is set easily and accurately

With the aid of a work-guide installed to the directions of X and Y, the positioning of the media is smooth and working efficiency has been improved. It is also possible to remove the work-guide depending on the media size.

Media is set easily and accurately

1: Effective range of cutting
2: Media
3: Work-guide plate
4: Origin seal

*Please note that the work guide is used just as a guide for setting the media and it is not intended to guarantee the distance to the origin.

Extensive line-up of cutter blades

Extensive line-up of cutter blades

A wide variety of cutter blades tailored to various media are provided. As one machine can process with flexibility, expand your business opportunities.

Cutter blades in the marketplace can also be used.
As the low cost cutter blades can be used, the running cost can be reduced.

Full of useful functions to support cutting

Half-cut

Half-cut
By adjusting the depth of the cutter blade, you can half-cut composite, laminated material (etc).
As two tools can be used, you can perform different types of half-cutting or diecutting without changing the tools.

Correction of starting and ending points

Correction of starting and ending points
The starting and ending positions of cutting are corrected, which makes cut-away of the media smoother. Adjustable within the range of 0 to 2.5 mm.

Circle θcorrection

Circle θcorrection
Declination of starting point and ending point of a circle cutting caused by thickness or hardness of the media is corrected and cutting nearly perfect circle is available.

Press correction
Pressure of tool coming down is corrected to ensure complete cutting.

Repeated cutting
Is capable of repeating the cutting up to maximum of 5 times changing the cutting pressure. With only one time of data sending, you can cut even thick material with high quality finish.

Back cutting
Back cutting is also possible by attaching mark chips to the back surface. From the front surface, excess cut is not seen making the finish beautiful.

Multiple registration of cutting conditions
Cutting conditions such as pressure, speed, scorrection of starting and ending points, circle θcorrection, offsets, etc. by tool may be registered for multiple times.

Various accessories

Felt mat

●Provided with felt mat required when reciprocal cutter is used.

*For CF22-1225RC/RT-S

Various holders are available to meet a variety of material.

●Various holders are available to meet a variety of material.

Blower

●Provided with a blower to securely suck and fix the media.

*Enhanced blower is also available as option.
