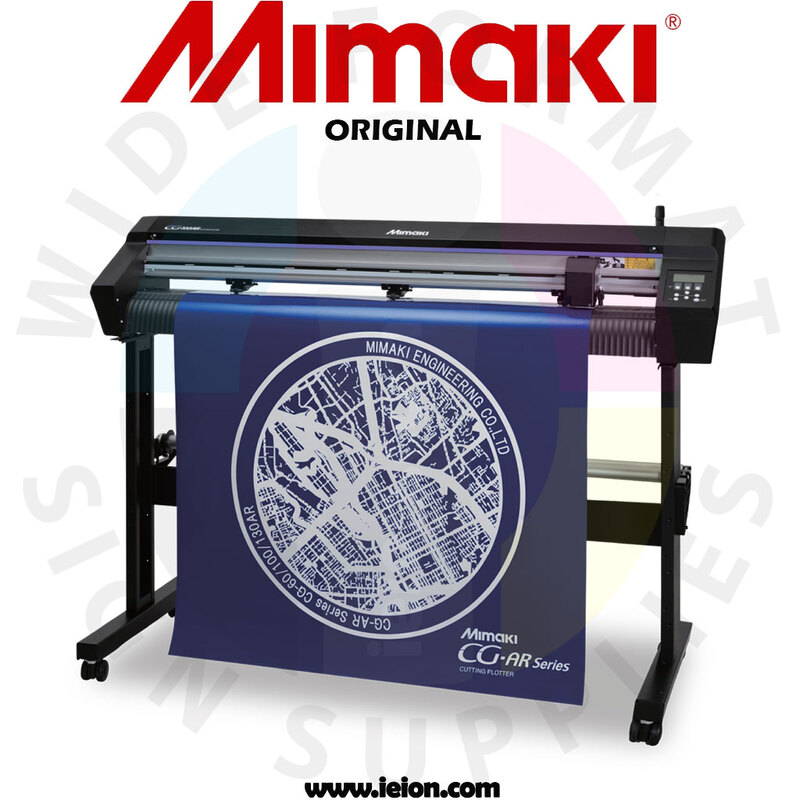

Mimaki CG-60AR Cutting Plotter
Tags:
The "CG-AR Series" are the entry-model of cutting plotter with improved cutting performance, compatibility with a wide range of cutting materials, and enhanced usability, all at an affordable price.
In addition to cutting letters, labels, and stickers, the CG-AR newly supports full cutting and folding lines of cardboards. It can also produce packages up to A3 size by using dedicated options.
Choose Quantity
$1,639.00
Product Details
Specifications
The Mimaki CG-130AR Cutting Plotter has an Effective cutting area of 1,370mm (53.9").
Product Outlines:
- Realizing a cut pressure of 550 g, which is the highest in the entry class, expanding the range of cuttable materials
- The maximum cutting speed is 105% of the previous model for greater productivity
- New lineup options for cardboard full cutting
- Easy to cut output from Windows plotter driver
- Equipped with an ID cut function, realizing efficient print & cut in seamless coordination with Mimaki's printers
- The "Mimaki Remote Access (MRA)" enables to check the machine operation status and operate the panel from a distance
Other functions and improvements
- Division Cut Function: Cut is performed by splitting a space larger than the sheet width or splitting long data in the X-axis (feed) direction and the Y-axis (width) direction to avoid cut position gap.
- Ethernet Connection: Network control via integration into office LAN.
- Improved assembly and installation: Up to 30% weight reduction for simplified assembly. The addition of rubber feet makes it easier to adjust the rattle when installing on a tabletop.
- Improved cutter holder: The cutter blade can be changed with less operation than conventional products. (4.5 turns of the knob -> 2.5 turns)
Manual Video: "BILT" Installation and Operation for iOS
Best-in-class cutting pressure of 550 g and the speed improved to 105% of the conventional model
The cutting pressure can be selected from 10 g to 550 g, and three types of cutting are possible: normal cutting, complete cutting, and half cutting. The machine can cut a wide variety of materials, including PVC, fluorescent and reflective sheets, and rubber sheets.
Optional products for cutting cardboard can be added to produce packages up to A3 size
CG-AR Series are now capable of producing high-quality cutouts from plain paper to cardboard with the use of optional products for cardboard cutting, such as a Sheet table, Cutting sheet, Blade for heavy paper and Creasing tool. Using this machine, you can produce paper crafts and packages.
"ID Cut function" provided for efficient Print & Cut
"ID cut" is a function for automatically cutting data included in an ID simply by scanning the ID register marks output by Mimaki's optionally available printer*. Data transmission from the PC is completed with one-time operation, which drastically saves labor for print & cut and enhances work efficiency.
* Compatible with the JV330 Series, JV300Plus Series and the JV/UJV100 Series
* Compatible with the JV330 Series, JV300Plus Series and the JV/UJV100 Series
"Mimaki Remote Access (MRA)" enables to check the machine operation status and operate the panel from a distance
It is now possible to check the status of the cutting plotter remotely from your iPhone or PC. This function enables operators to check the operation status of the machine and to operate the panel from a distance, allowing them to work more efficiently.
Equipment Type
- Equipment TypeCutting Plotters
Cutting Plotters
- Max Cutting Width24 in
- Stand IncludedNo
- Cut FunctionsHalf Cut
- Media Load BackNo
- Software IncludedMimaki FineCut
- Selectable Clamp PressureYes
- Front Basket IncludedOptional
- USB ConnectionYes
- Ethernet ConnectionNo
- Pen Drive portNo
- Contour cutYes
- Registration ReaderLaser
Printers Specifications
- Main featureCut
