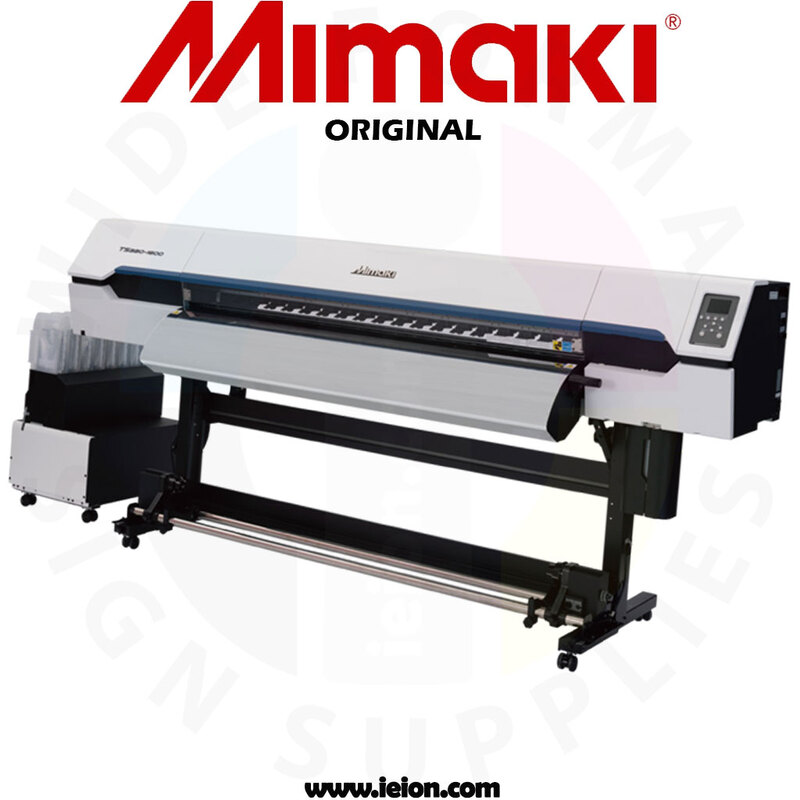

Mimaki Printer Sublimation Transfer Inkjet TS330-1600

Specifications

• Print resolution: 300 / 600 / 900 / 1,200 dpi

• Print gap (head height): Manual adjustment — 3.0, 3.5, or 4.0 mm

• Ink type / colors:

  • Sb411: Blue, Magenta, Yellow, Black, Light Blue, Light Magenta, Light Black

  • Sb410: Fluorescent Pink, Fluorescent Yellow

• Ink capacity: 2 L ink packs or optional 10 kg bulk tank

• Maximum print width: 1,610 mm (63.4″)

• Maximum media width: 1,620 mm (63.8″)

• Media thickness: up to 1 mm

• Roll diameter: ≤ φ 250 mm

• Maximum roll weight: 45 kg (≈ 99 lb)

• Core diameter: 2″ or 3″

• Media cutting: Auto-cut (V-cut or straight cut) via head unit

• Interface: 1000 BASE‑T Ethernet, USB 2.0

• Power: Single-phase AC100–120 or 200–240V ±10%, 50/60 Hz

• Power consumption: Max ~1,440 W; typical ~800 W

• Operating environment: 20–30 °C (68–86 °F), 35–65% RH

• RIP software: RasterLink7 (standard), TxLink4 Lite (textile option)

Highlights

• Advanced Weaving Dot Technology to minimize streaking or banding

• High productivity: up to 69 m²/h in Draft mode

• Dual‑motor take-up system for better tension control

• V‑shape cutting for accurate media alignment

• Cloth wiper cleaning mechanism reduces ink splatter

• Remote access for monitoring and control

• Large-capacity inks and mini jumbo roll reduce downtime

• Eco-certified inks (ECO PASSPORT by OEKO-TEX)

• Advanced print stability: NCU, NRS, and ink circulation

• Quality control: VDT, MAPS4, MFD, DAS

Applications

• Fashion apparel and sportswear

• Interior textiles: curtains, upholstery, cushions

• Soft signage: flags, banners, backlit fabric

• Home décor textiles

• High-volume textile production

• Projects requiring fluorescent colors

Printer Weight and Size

• Weight: 240 kg (529 lb)

• Dimensions (W × D × H): 3,170 × 820 × 1,305 mm → 10.4 ft × 2.7 ft × 4.3 ft (124.8″ × 32.3″ × 51.4″)

• Recommended clearance: ~12 ft width × ~5 ft depth for operation and media handling

Shipping Information

• Packaged weight: 240 kg (529 lb)

• Packaged dimensions: 10.4 ft × 2.7 ft × 4.3 ft (124.8″ × 32.3″ × 51.4″)

Recommended Inks

• Mimaki SB610 2 Liter Bags W/C

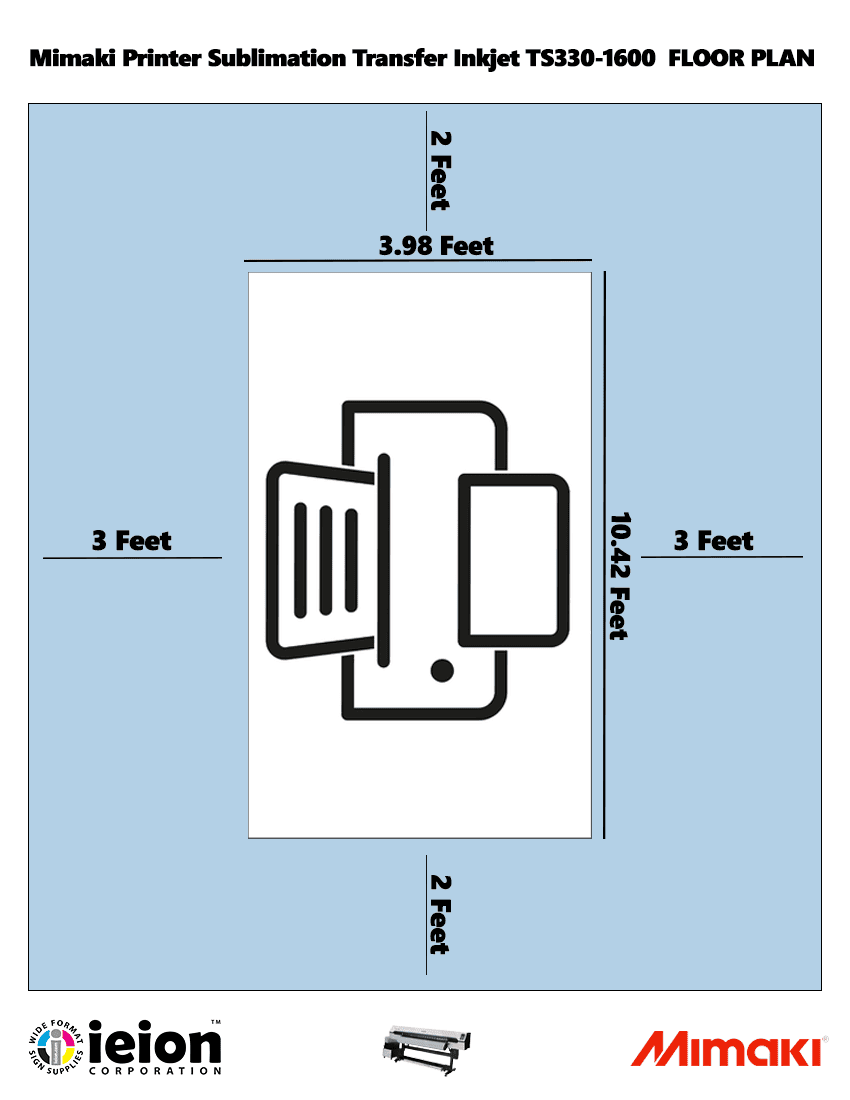

Floor Plan
