The Mimaki VS650 Power Shaker & Dryer is a dedicated post‑processing unit for DTF (Direct‑to‑Film) workflows. It automatically shakes on hot-melt powder, cures the film with a controlled heating zone, then cools and rewinds the film — streamlining the finishing process and improving consistency and throughput.
Available Offer

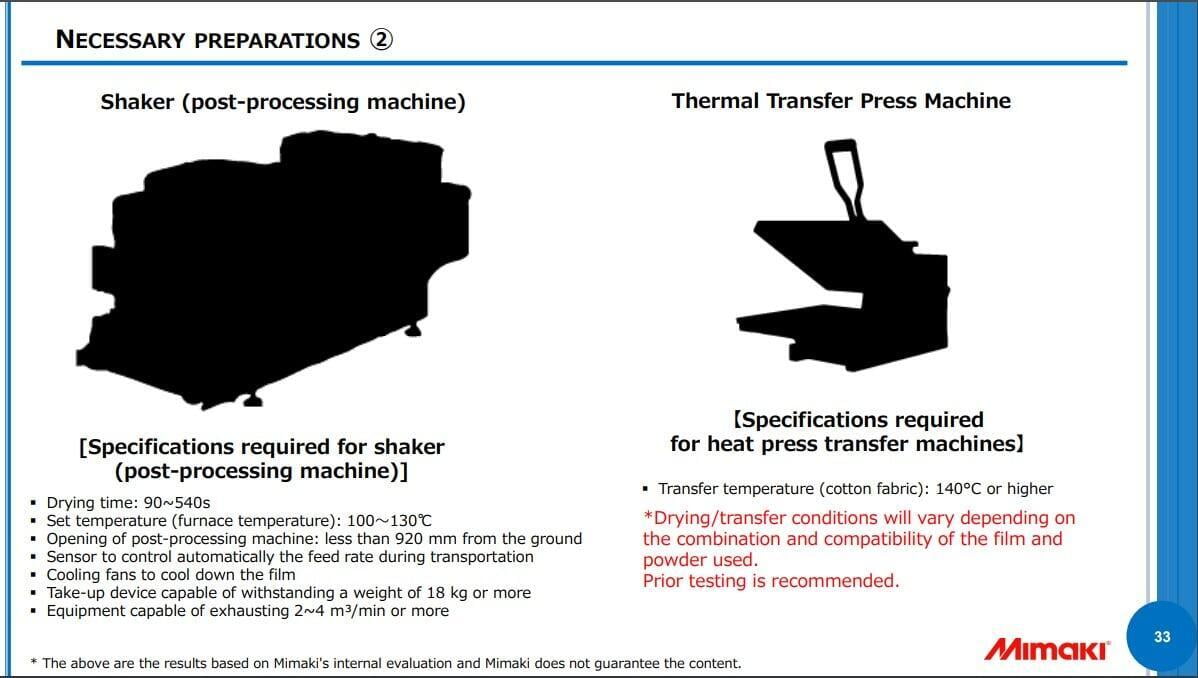

Specifications
Drying temperature: 100–130 °C
Drying time: 90–540 seconds
Automatic feed-rate control to maintain consistent transport speed
Cooling system: built-in fans to reduce film temperature after curing
Exhaust capacity: 2–4 m³/min
Take-up device capacity: supports film rolls weighing 18 kg or more
Maximum opening height: < 920 mm
Highlights
Combines powder shaker and dryer in a single unit
Precise temperature control for optimal powder melt and adhesion
Automatic film feed adjustment for consistent tension and curing
Powerful cooling and exhaust system prevents overheating and maintains film quality
Robust take-up system allows continuous operation with large rolls
Applications
Post-print processing in DTF production: powdering, curing, cooling, and take-up
High-volume DTF sheet production for apparel, sportswear, and soft signage
Textile decoration setups requiring speed and consistency
Workflows that need a reliable, integrated finishing unit
Printer Size and Weight
Weight: 80 kg (net)
Packaged weight: 125 kg
Packaged dimensions: 1,700 × 830 × 1,100 mm → 5.58 ft × 2.72 ft × 3.61 ft
Shipping Information
Packaged weight: 125 kg
Packaged dimensions: 5.58 ft × 2.72 ft × 3.61 ft

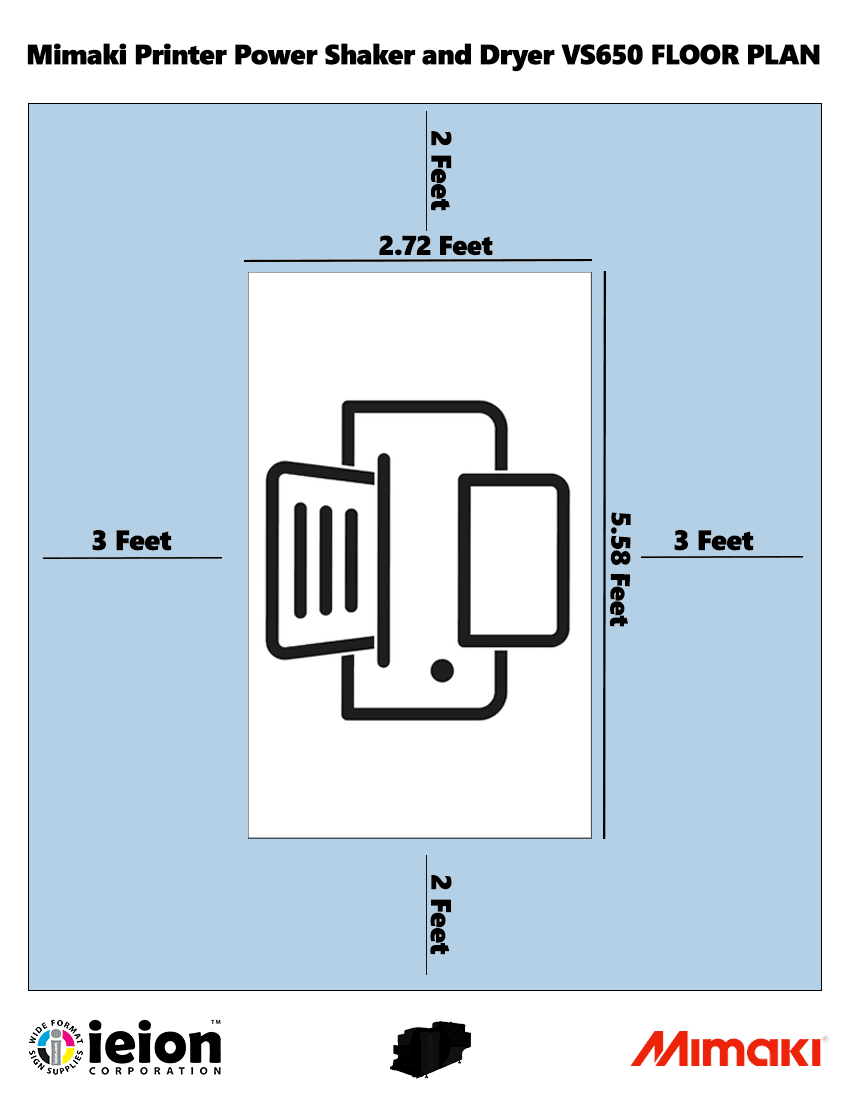

Floor Plan
Equipment Type
- Equipment Type:Printers
