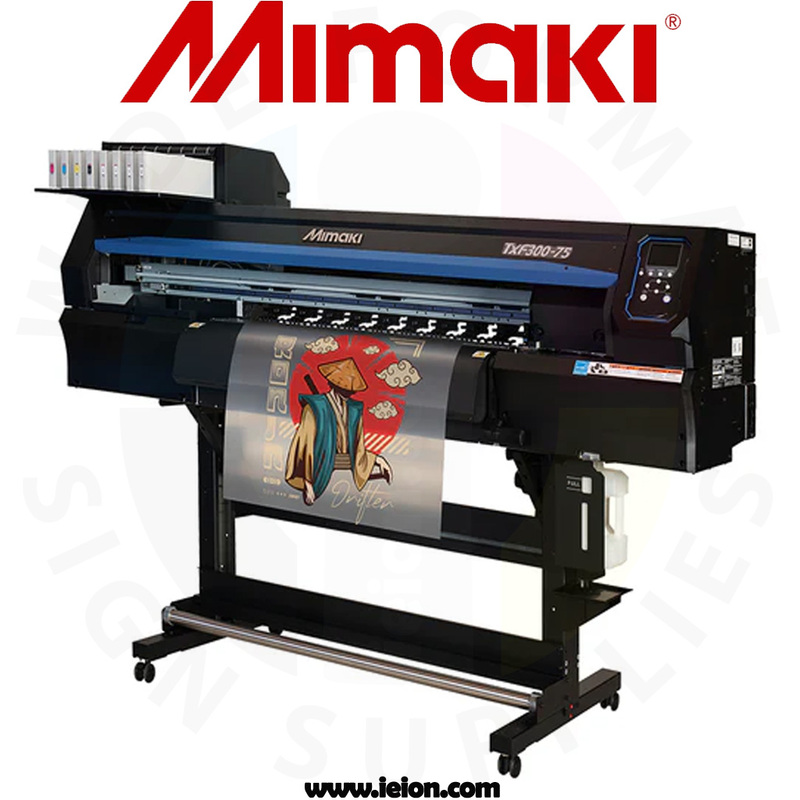

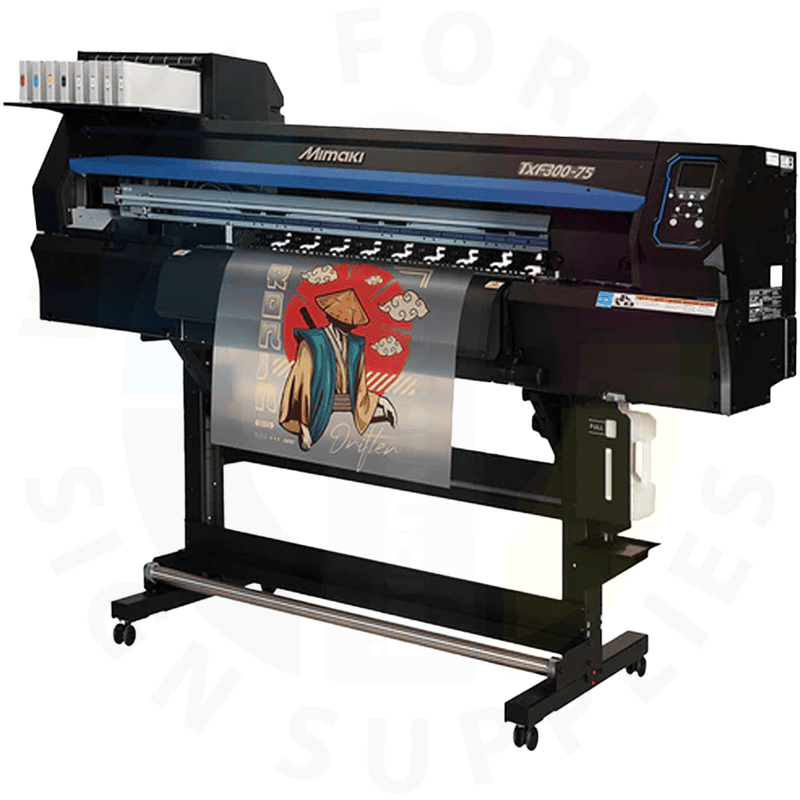

Mimaki Printer TxF300-75 DTF

Specifications

• Print head: On-demand piezo (dual heads)

• Print resolution: 720 dpi, 1,080 dpi, 1,440 dpi

• Ink type / colors: PHT50 heat-transfer pigment ink — Cyan, Magenta, Yellow, Black, White

• Ink capacity: 600 ml packs for CMYK; 500 ml for White

• White ink circulation: Yes, prevents pigment settling and clogging

• Maximum print width: 800 mm (31.5″)

• Media width: Up to 810 mm (31.9″)

• Media thickness: Up to 1.0 mm

• Maximum media roll weight: 45 kg (~99 lb)

• Interface: Ethernet 1000 BASE-T, USB 2.0

• Power supply: Single-phase AC100–120V or 200–240V ±10%, 50/60 Hz

• Power consumption: Up to ~1.3 kW

• Operating environment: 20–30 °C (68–86 °F), 35–65% RH

• RIP software: RasterLink7

Highlights

• Dual print heads for faster, high-volume production

• White ink circulation system maintains stability and prevents clogging

• Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS) minimize downtime

• Three-stage intelligent heater system ensures sharp, blur-free prints

• Degassed ink packs prevent air bubbles and improve reliability

• ECO-certified PHT50 inks are skin-friendly and suitable for textiles

• Ideal for continuous operation and high-volume DTF printing

Applications

• T-shirts, hoodies, and apparel transfers

• Sportswear and performance garment decoration

• Fashion textiles and accessories

• Custom fabric decoration for small-to-medium runs

• Promotional textile products and branded merchandise

Printer Weight and Size

• Weight: 198 kg (436 lb)

• Dimensions (W × D × H): 2,140 × 900 × 1,450 mm → 7.02 ft × 2.95 ft × 4.76 ft (84.3″ × 35.4″ × 57.1″)

• Recommended clearance: ~9 ft width × ~5 ft depth for operator access and media handling

Shipping Information

• Packaged weight: 198 kg (436 lb)

• Packaged dimensions: 7.02 ft × 2.95 ft × 4.76 ft

Recommended Inks

• Mimaki Ink DTF 600 mL Bag

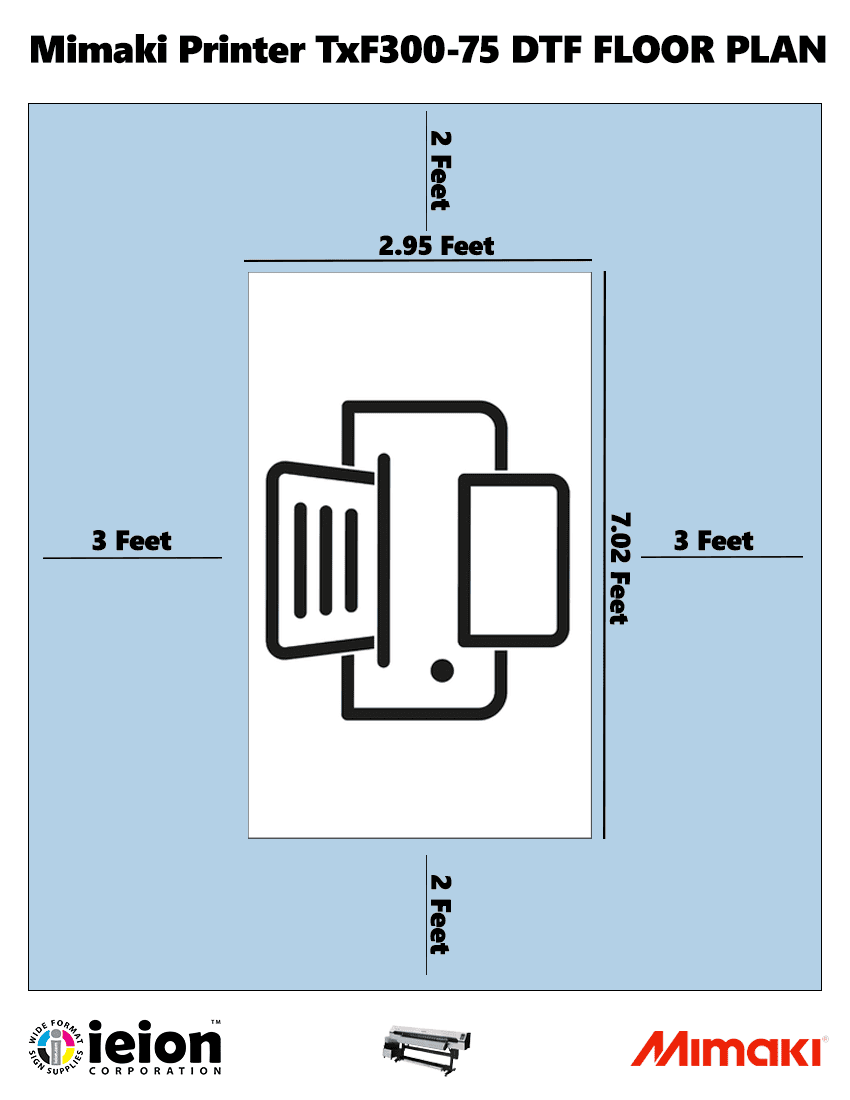

Floor Plan
