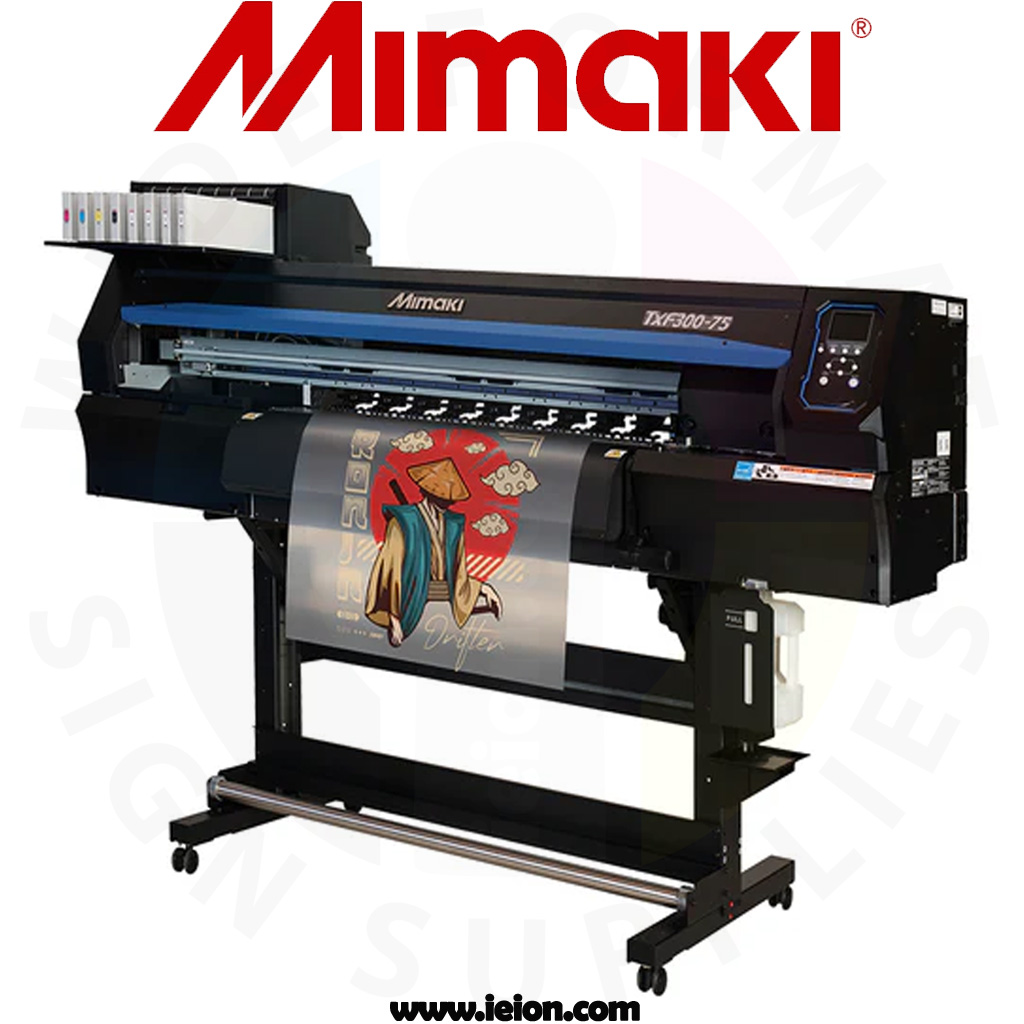

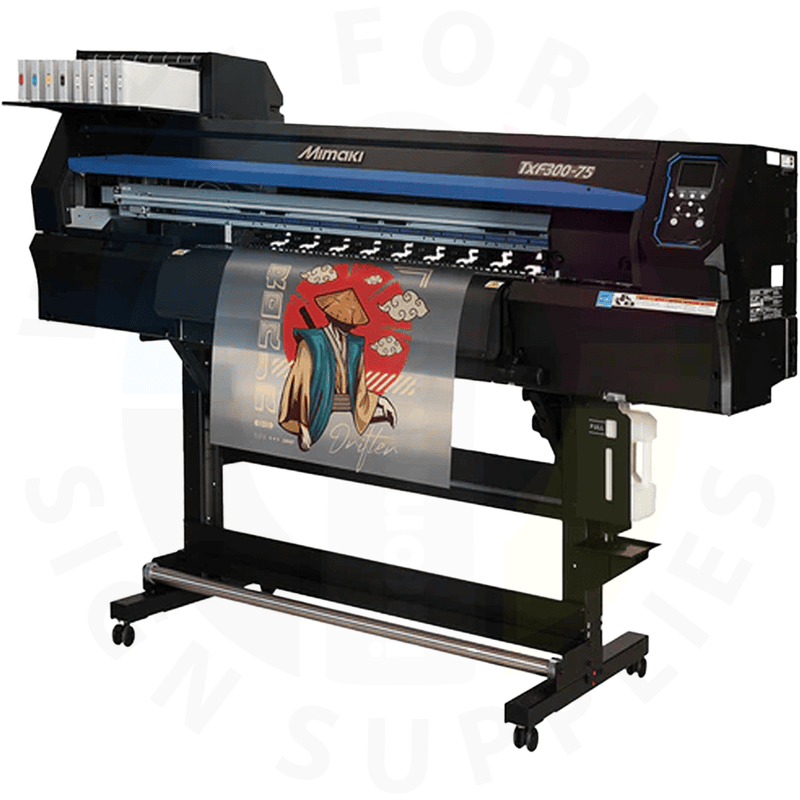

Mimaki Printer TxF300-1600 DTF

Specifications

• Print Heads: Dual on-demand piezo heads, staggered layout

• Print Resolutions: 720 / 1,080 / 1,440 dpi

• Ink Type / Colors: Heat transfer pigment ink PHT50 (C, M, Y, K, White)

• Ink Capacity: 600 ml per color (500 ml for White)

• White Ink Circulation: Yes

• Max Print Width: 1,610 mm (63.4 in)

• Max Media Width: 1,620 mm (63.8 in)

• Max Media Thickness: ≤1.0 mm

• Max Roll Weight: 45 kg (99 lb)

• Interface: Ethernet 1000BASE-T & USB 2.0

• Power Supply: Single-phase AC 100–120 V or 200–240 V

• Power Consumption: ≤1.3 kW (100 V) / ≤1.75 kW (200 V)

• Operating Environment: 20–30 °C (68–86 °F), 35–65% RH

• Certifications: VCCI Class A, FCC Class A, CE, CB, REACH, Energy Star, RCM, KC

Highlights

• ~30% higher productivity compared to previous Mimaki DTF models

• Wide-format capacity (63") suitable for interior fabrics like curtains and rugs

• Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS) for reliable printing

• White ink circulation system prevents sedimentation for consistent white prints

• ECO-PASSPORT certified ink, compliant with OEKO-TEX® standards

• Three-way intelligent heater accelerates drying for consistent transfer quality

Applications

• T-shirts and sportswear

• Fashion and decorative fabrics

• Interior fabrics: curtains, rugs, mats

• High-quality transfers on light and dark garments

• Production-level DTF textile transfers

Printer Weight & Size

• Dimensions (W × D × H): 2,783 × 700 × 1,392 mm

• Dimensions (inches): 109.6″ × 27.6″ × 54.8″

• Dimensions (feet): 9.12 ft × 2.30 ft × 4.56 ft

• Weight: 166 kg / 366 lb

Shipping Information

• Weight: Approximately 366 lb

• Size: Approximately 9–10 ft (W) × 2–3 ft (D) × 5–6 ft (H)

• Ensure clearance on all sides for media loading and maintenance

Recommended Inks

• Mimaki Ink DTF 600 mL Bag

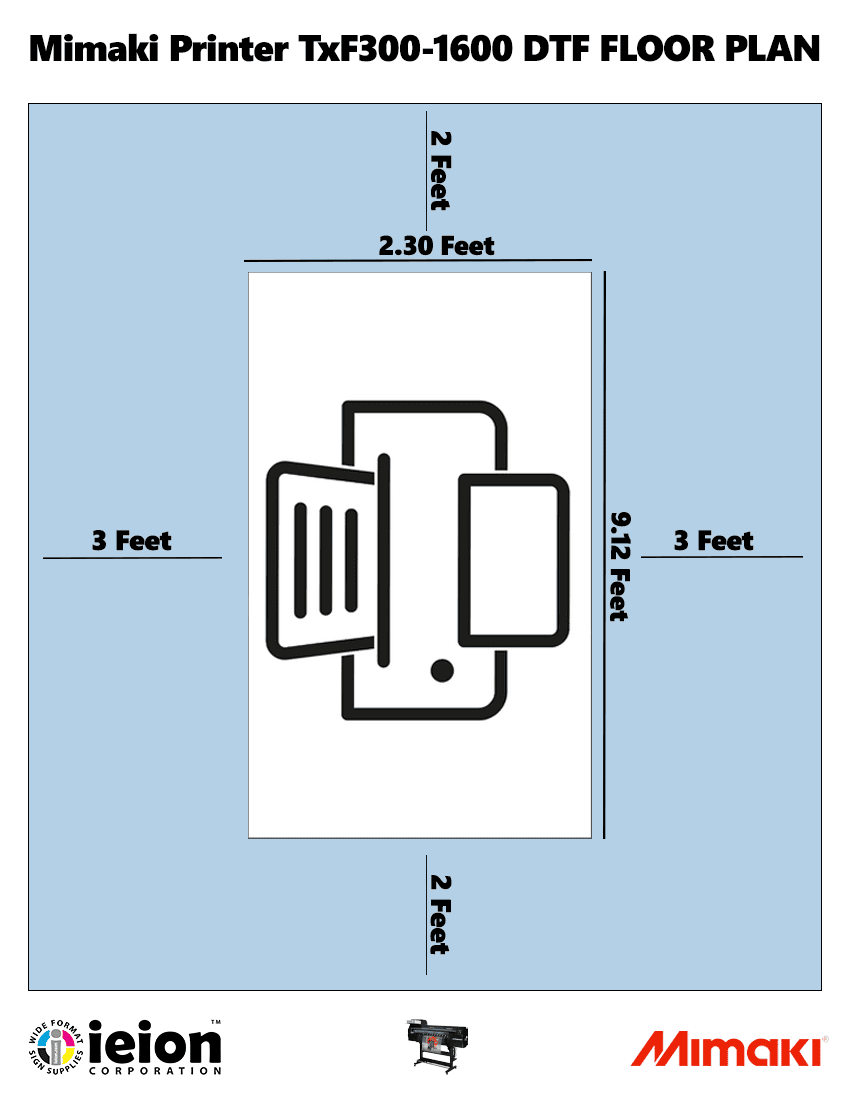

Floor Plan
