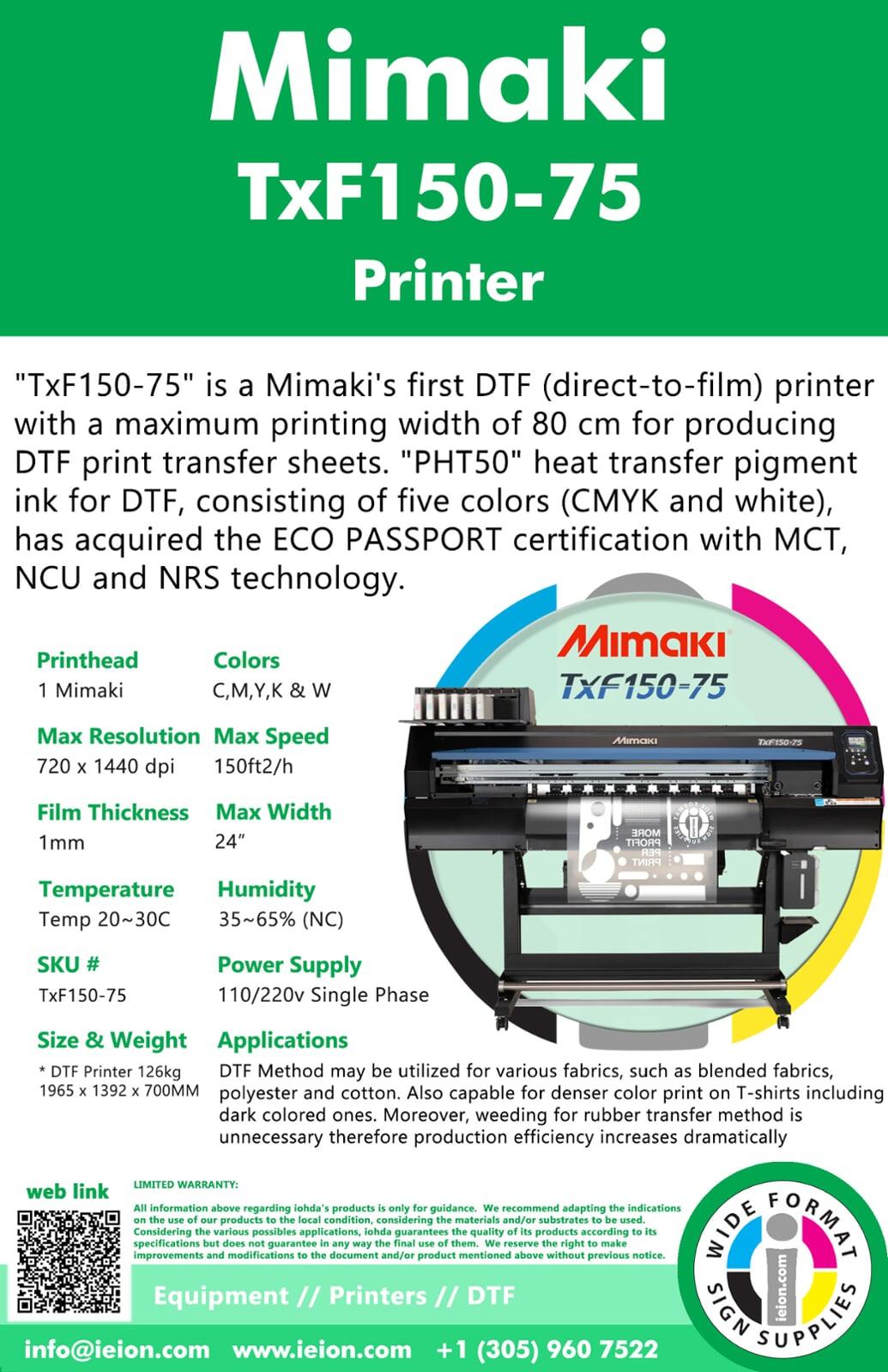

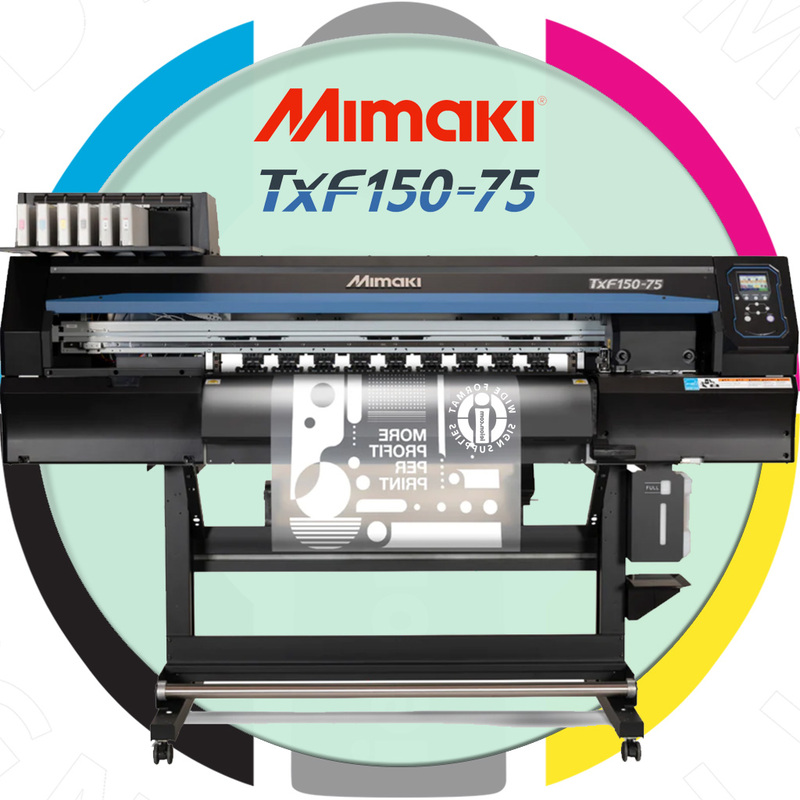

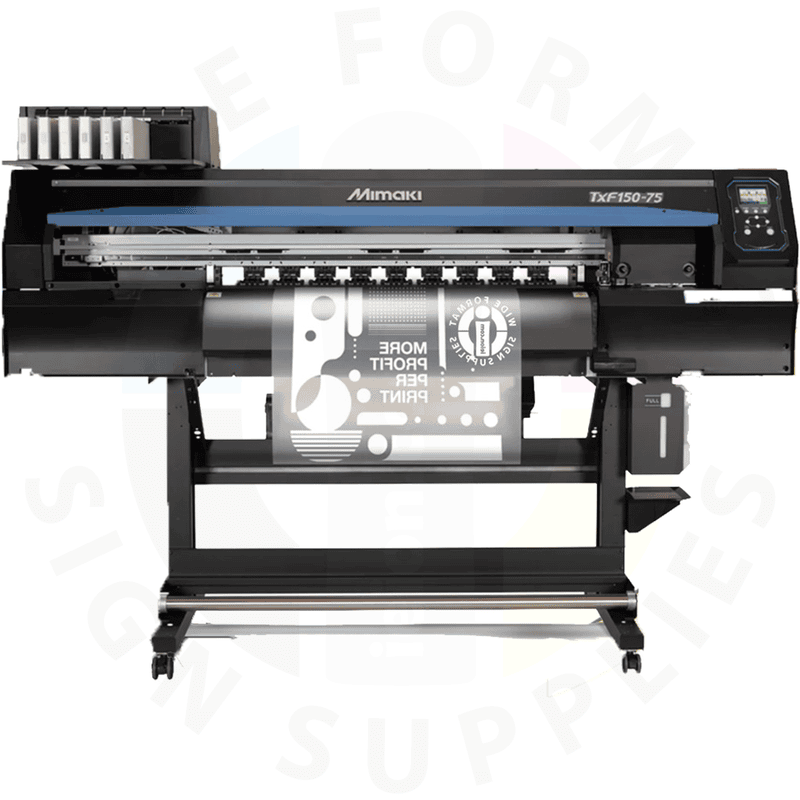

Mimaki Printer TxF150-75 DTF

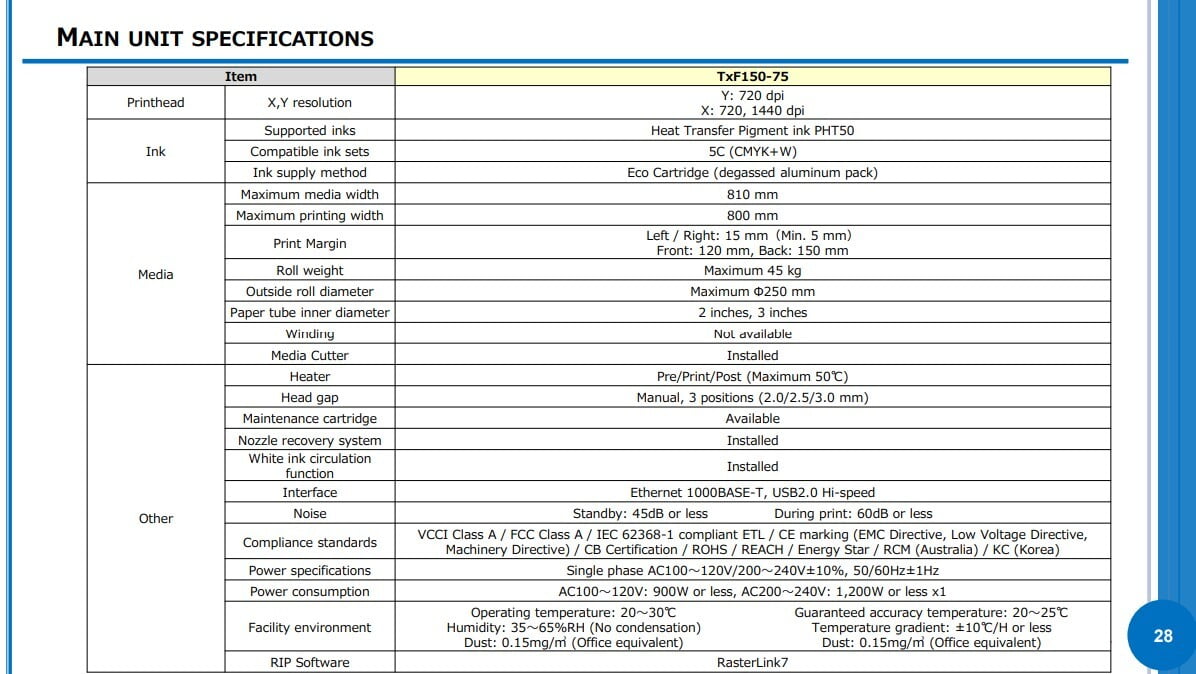

Specifications

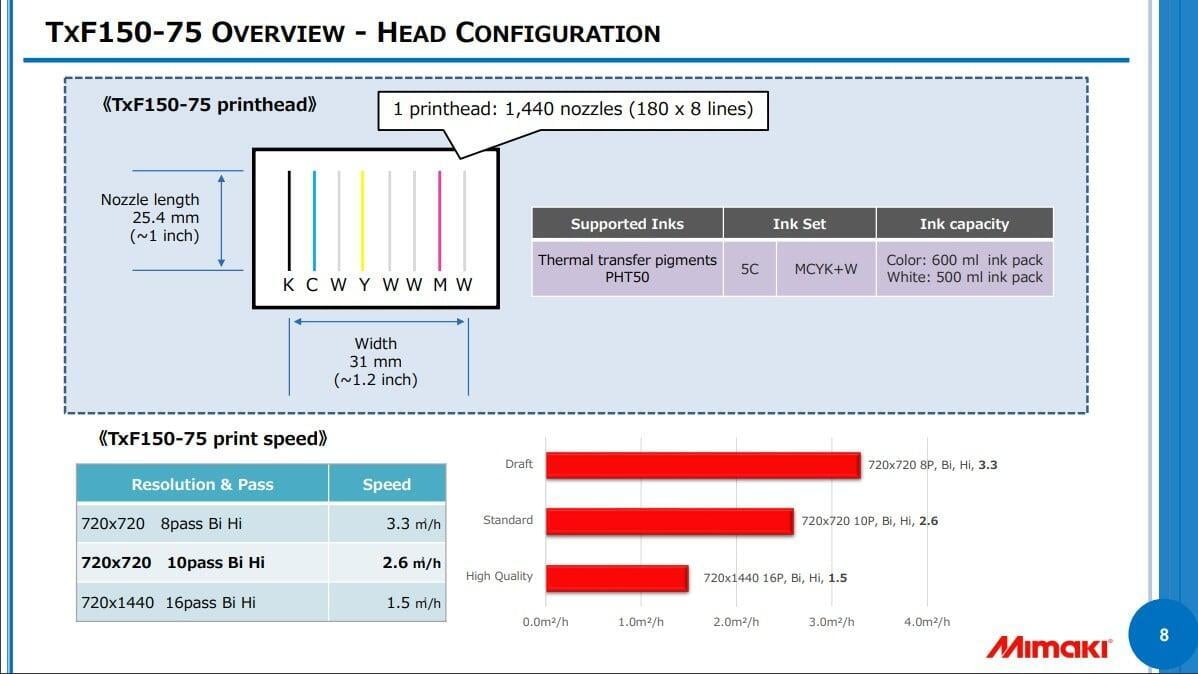

• Print head: On-demand piezo

• Print resolution: 720 dpi, 1,440 dpi

• Ink type / colors: PHT50 heat-transfer pigment ink — Cyan, Magenta, Yellow, Black, White

• Ink capacity: 600 ml packs for CMYK; 500 ml for White

• White ink circulation: Yes, maintains pigment stability and prevents clogging

• Maximum print width: 800 mm (31.5″)

• Media width: Up to 810 mm (31.9″)

• Media thickness: Up to 1.0 mm

• Maximum media roll weight: 45 kg (~99 lb)

• Interface: Ethernet 1000 BASE-T, USB 2.0

• Power supply: Single-phase AC 100–120V or 200–240V ±10%, 50/60 Hz

• Power consumption: ~1.44 kW (100V system), ~1.92 kW (200V system)

• Operating environment: 20–30 °C (68–86 °F), 35–65% RH

• RIP software: RasterLink7 (standard)

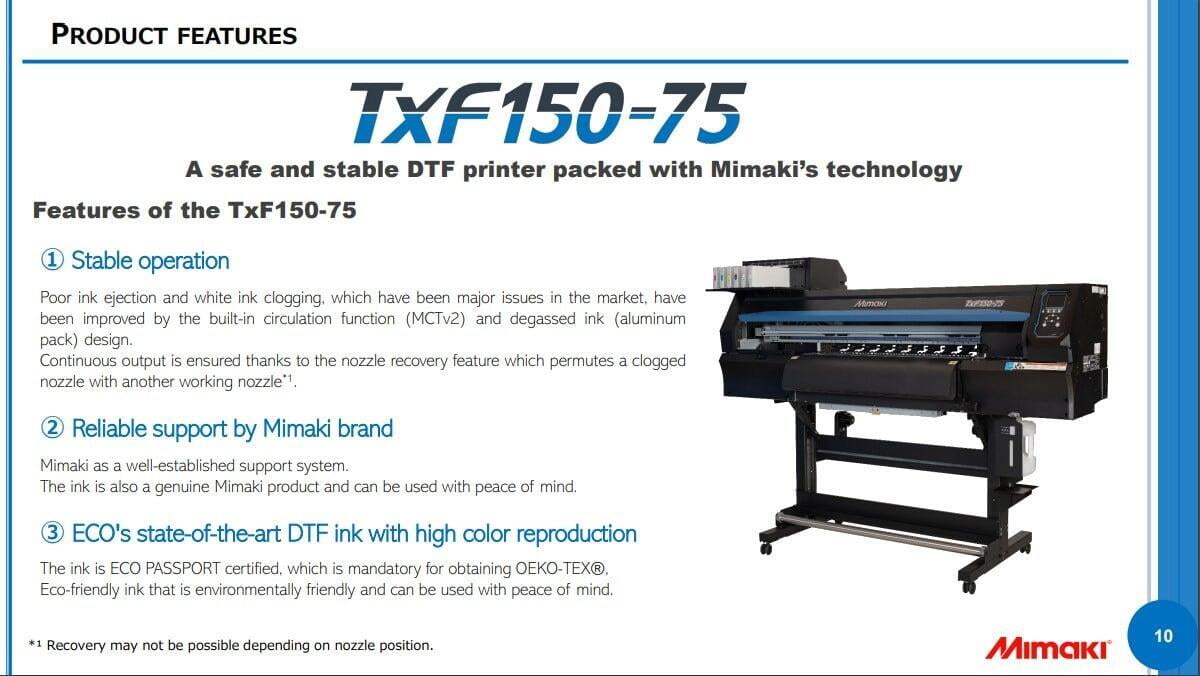

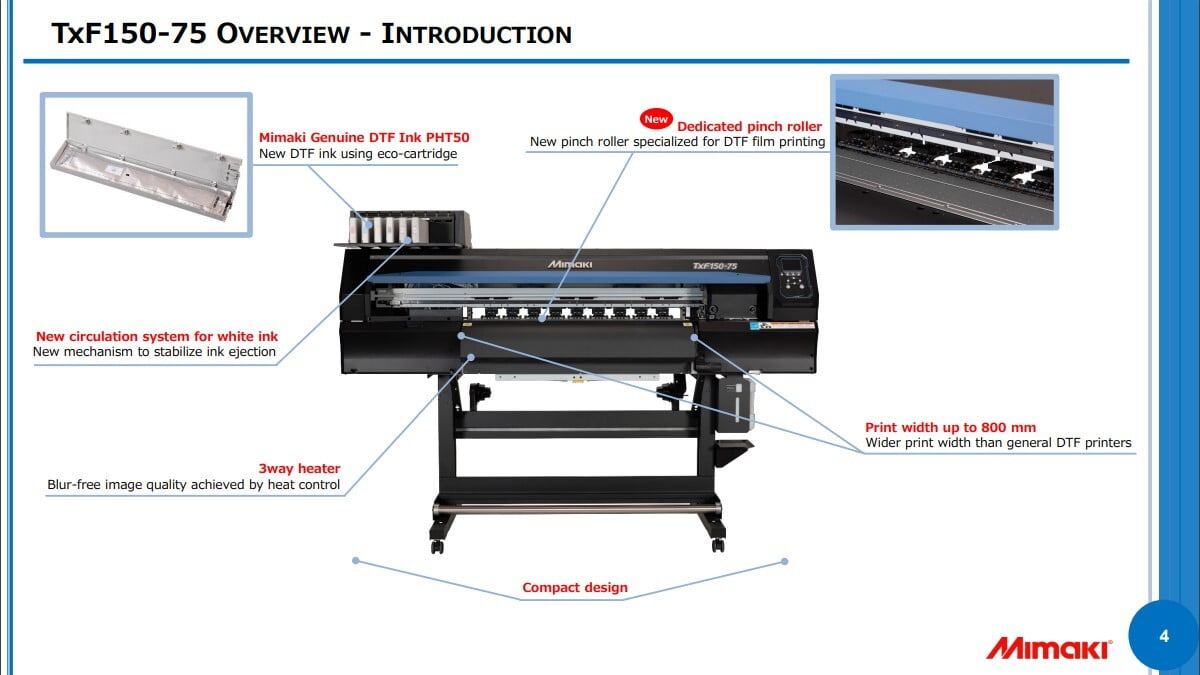

Highlights

• White ink circulation system prevents pigment settling

• Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS) reduce downtime

• 3-way intelligent heater system: pre-print, print, and post-print heating for sharp prints

• Fine roller and pinch-roller system ensures stable film feeding

• ECO-certified PHT50 inks are skin-friendly and safe for textiles

• Supports full DTF workflow: print on film, sprinkle hot melt powder, cure, then heat-press to textile

Applications

• T-shirts and apparel transfers

• Sportswear and performance garments

• Fashion textiles and accessories

• Custom fabric decoration for small runs

• Promotional products and branded textiles

Printer Weight and Size

• Weight: 126 kg (277.8 lb)

• Dimensions (W × D × H): 1,965 × 700 × 1,392 mm → 6.44 ft × 2.30 ft × 4.56 ft (77.4″ × 27.6″ × 54.8″)

• Recommended clearance: ~8 ft width × ~4 ft depth for operator access and media handling

Shipping Information

• Packaged weight: 126 kg (277.8 lb)

• Packaged dimensions: 6.44 ft × 2.30 ft × 4.56 ft

Recommended Inks

• Mimaki Ink DTF 600 mL Bag

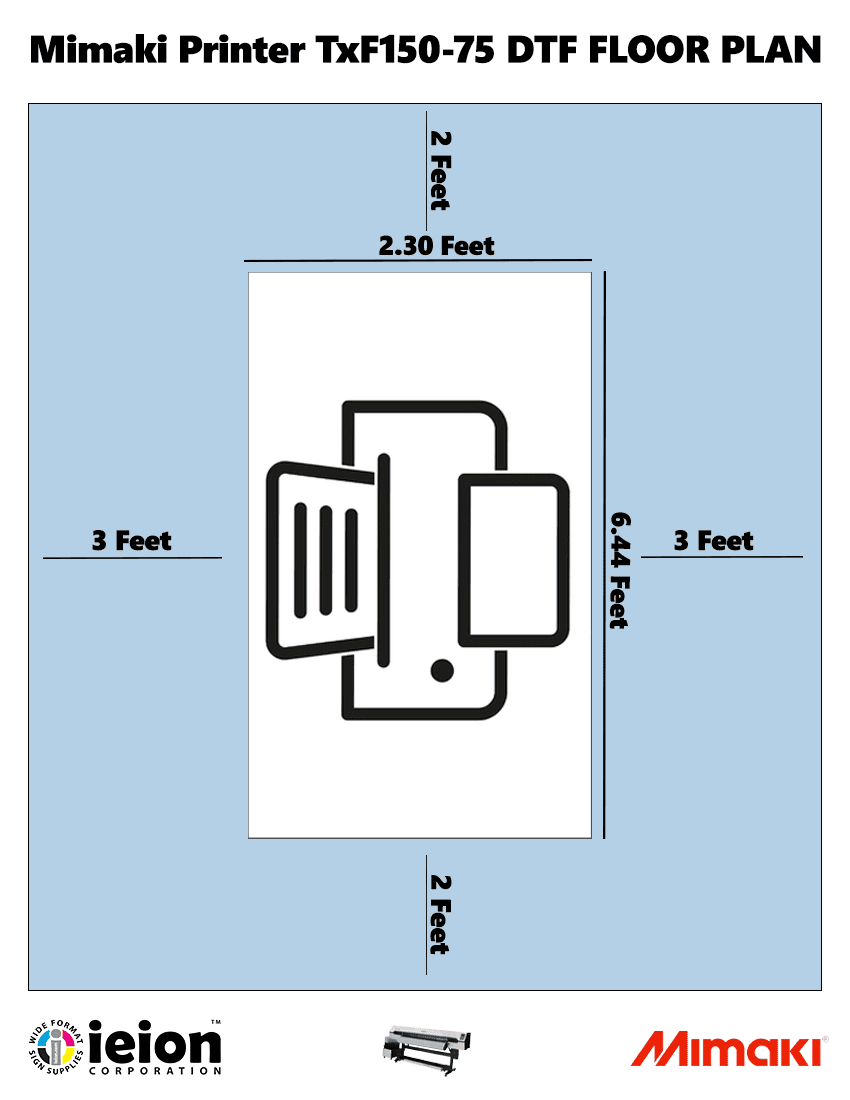

Floor Plan
